645
Model Code Page
41. Clutch
6000--8750 410 9
1. 4. 1997
15. 5. 1996
Hydraulic type clutch release mechanism, E44315---

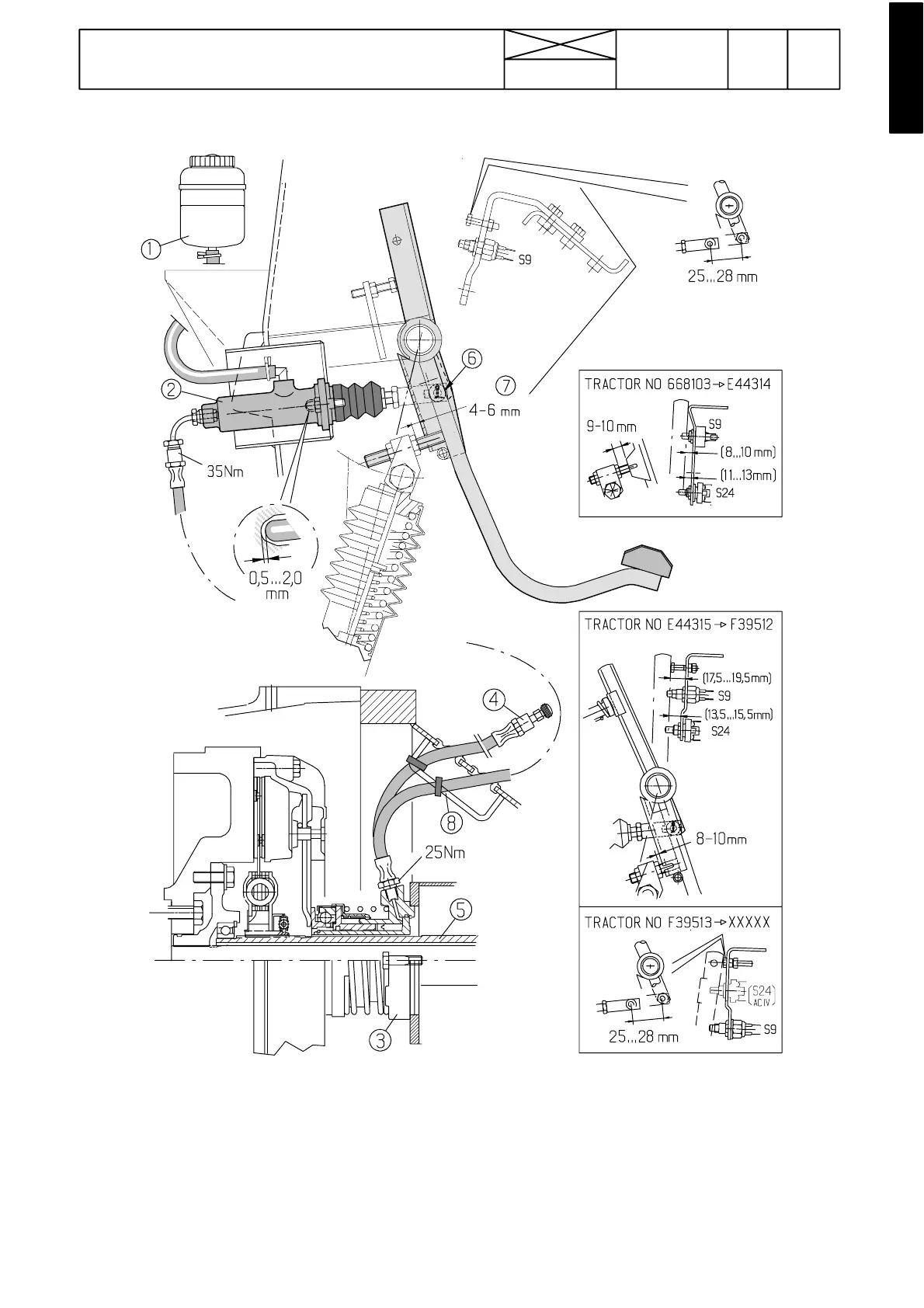

Picture 7. Clutch release mechanism
1. Reservoir (volume 2 dm
3
). Brake fluid SAE
J1703.
2. Master cylinder.
3. Release bearing---slave cylinder (F&S).
4. Bleeding nipple. The system can also be filled
through this hose
5. Clutch shaft. The shaft is thinner at the slave
cylinder
Note! From tractor ser. no. F39513
incl. the switch S24 has been removed and the safety switch S9
has been moved to the support lower hole. On E---models there
is further switch S24 and it is fitted to the support upper hole.
6. Universal grease
7. Adjusting value of clutch pedal power assistance
