675
Model Code Page
42 Gearbox
1. 11. 1998
7B420
6000--8750

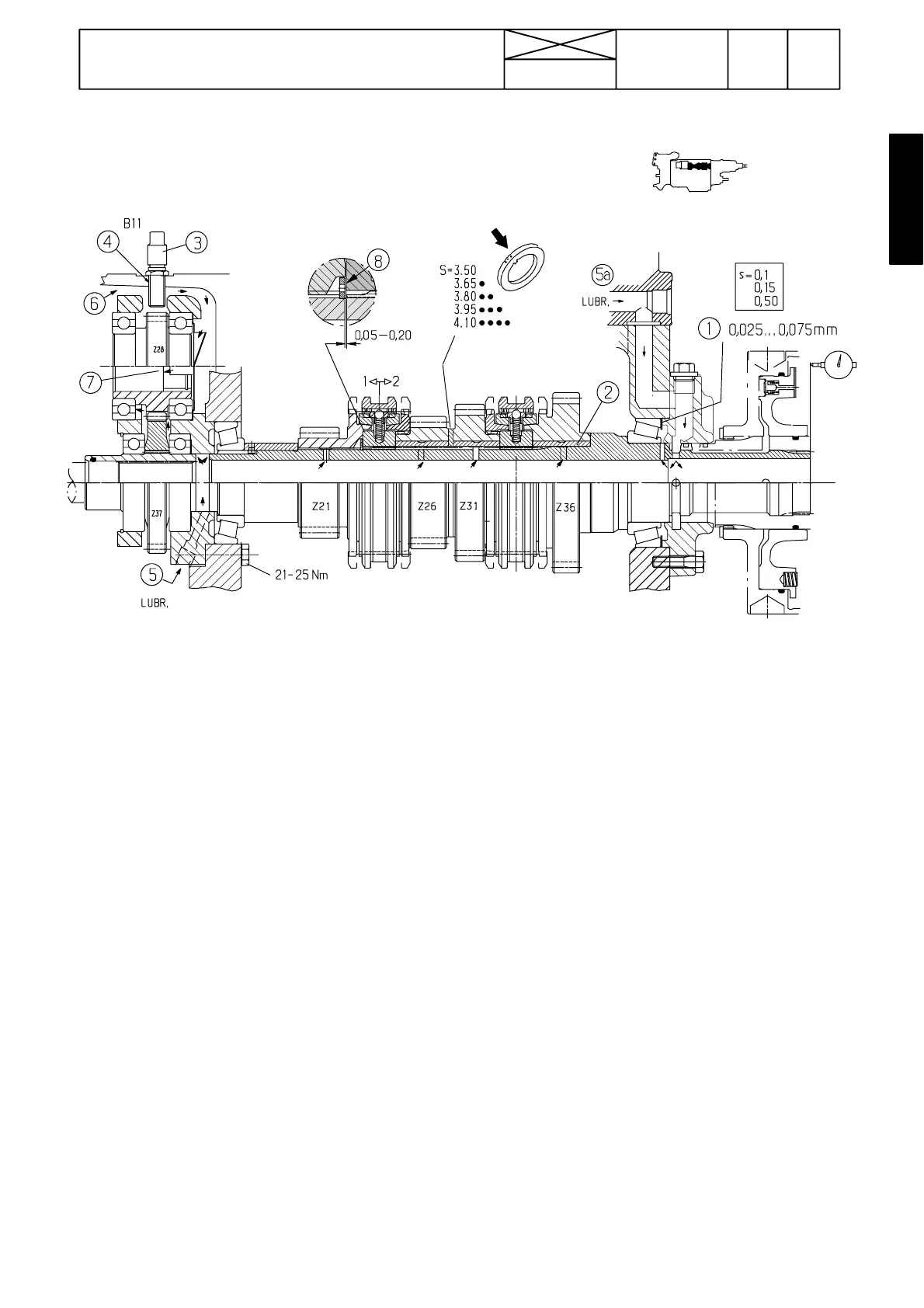

Kuva 5B. Input shaft in HiTech models (transmission 650).
1. Bearing end float is adjusted with shims
2. Bushing is locked with Loctite 601
3. Engine speed sensor (CareTel, AC V)
4. Sensor threads are locked with Loctite 542
5. Lubricating oil to the input shaft
5a. Lubricating oil onto the input shaft front bearing
6. Splash oiling from crown wheel
7. Lubricating oil to pump drive shaft splines
8. Circlip. Play between circlip and synchronizing unit hub is
adjusted to 0,05 ---0,20 mm with a spacer between gears Z26
and Z31.
