441. Quick ---shift gear
6100--8400 441 9
8. 11. 1990

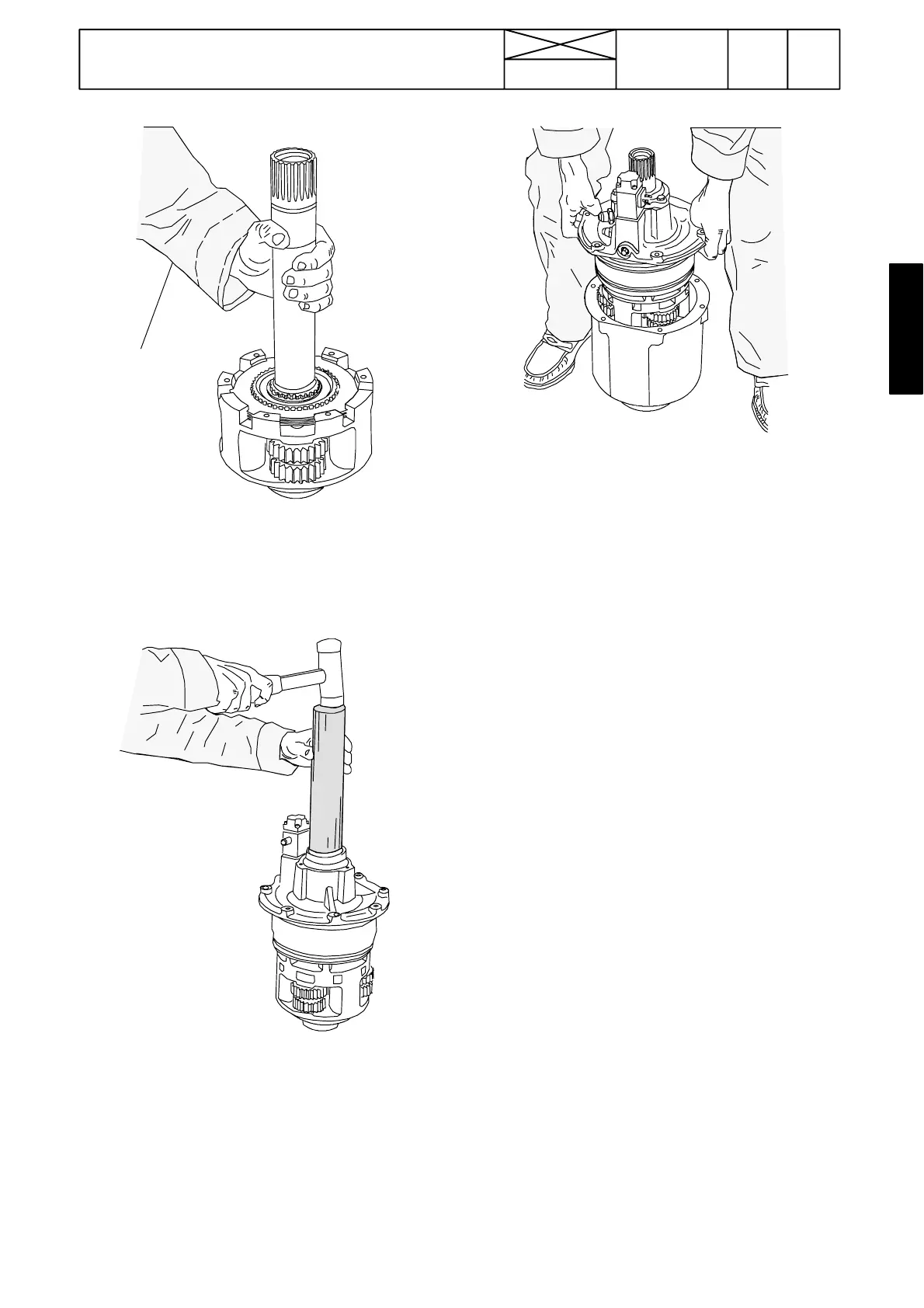

7. Place the lock---up discs on the planet carrier. Fit the input
shaft together with the disc hub. Check that the hub on the
shaft engages with the splined joint on the discs.
8. Lift the cover complete with front part of the planet carrier in
place on the input shaft/planet carrier. Tighten the bolts to 23
Nm.
9. Fit the circlip behind the bearing on the input shaft. Drive in
the bearing with ET 893 362. Fit the circlip in front of the bear-
ing..
10. Fit the new shaft seal. Wrap plastic foil over the splines on
the shaft, oil the seal and fit the seal retainer. Tighten the bolts
to 23 Nm.
11. Lift the gear into the housing. Make sure that the cup
springs come fully home (distance between the cover and
housingcontactsurfacesshould be 5 mm when the gear rests
on the cup springs). If this distance is greater, check the posi-
tion of the cup springs. Screw the cover bolts to 23 Nm.Donot
use force.
12. Attach the quick---shift gear to the reverse shuttle (see
instr. 441 2A) and assemble the tractor frame (see instr. 441
2 B or 423 5A).
