784
Model Code Page
443. 4WD clutch
6000--8750 443 2
15. 5. 1993
8. 11. 1990

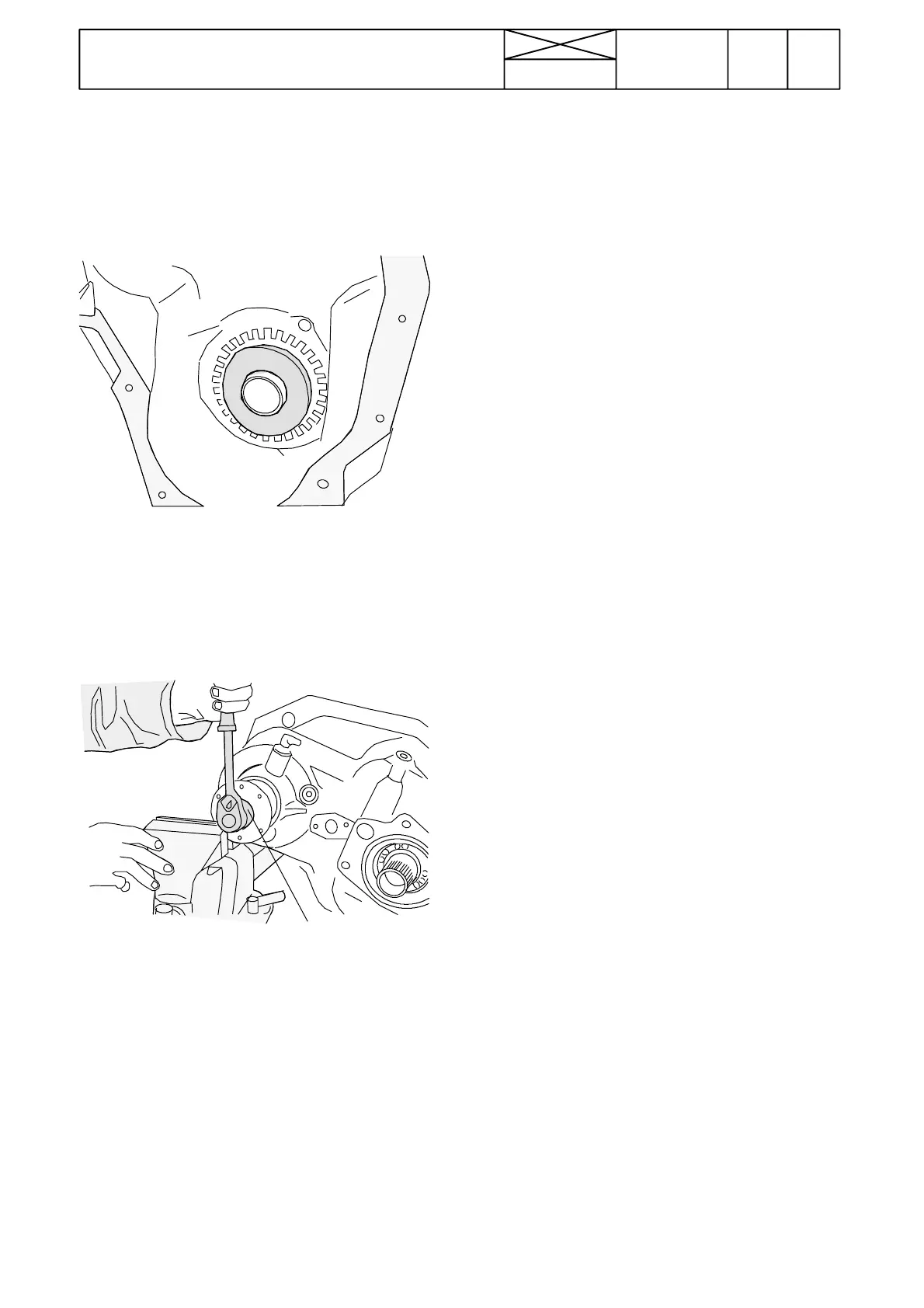

9. Remove the cup springs and the impulse disc from the
housing and pull out the oil sleeve.
10. Check the sealing rings on the oil sleeve and change them
if necessary. Then fit the sleeve and the impulse disc.
11. Fit the cup springs against the impulse disc.
Note! Fit the two foremost spring concave sides against each
other and the rearmost spring concave side rearwards.
12. Knock the shaft/clutch assembly into the housing. Fit the
o---ring, drive flange and the washer onto the shaft front end.
ETV 893 260
13. Tighten first the shaft nut with socket spanner ETV 893260
fully home and umscrew the nut one turn. This sets the clutch
clearance.
Note! Before tightening the nut, ensure that the clutch disc
pack lugs are accurately in line with each other. It is useful to
fit the clutch drum onto the disc pack when the nut is tigh-
tened.
--- Fit the reverse shuttle (see instr. 442 C)
--- F i t t h e 2 --- st e p qu ic k --- sh if t g e a r (seeinstr.4412A)
---Assemblethetractorframe(seeinstr.4412Bor instr. 423
5A)
