44. Delta P owershift
15. 5. 1993
6000--8750 444 2
9. If the ring piston seals need to be changed, the piston can
be forced out by using compressed air, but be very carefull.

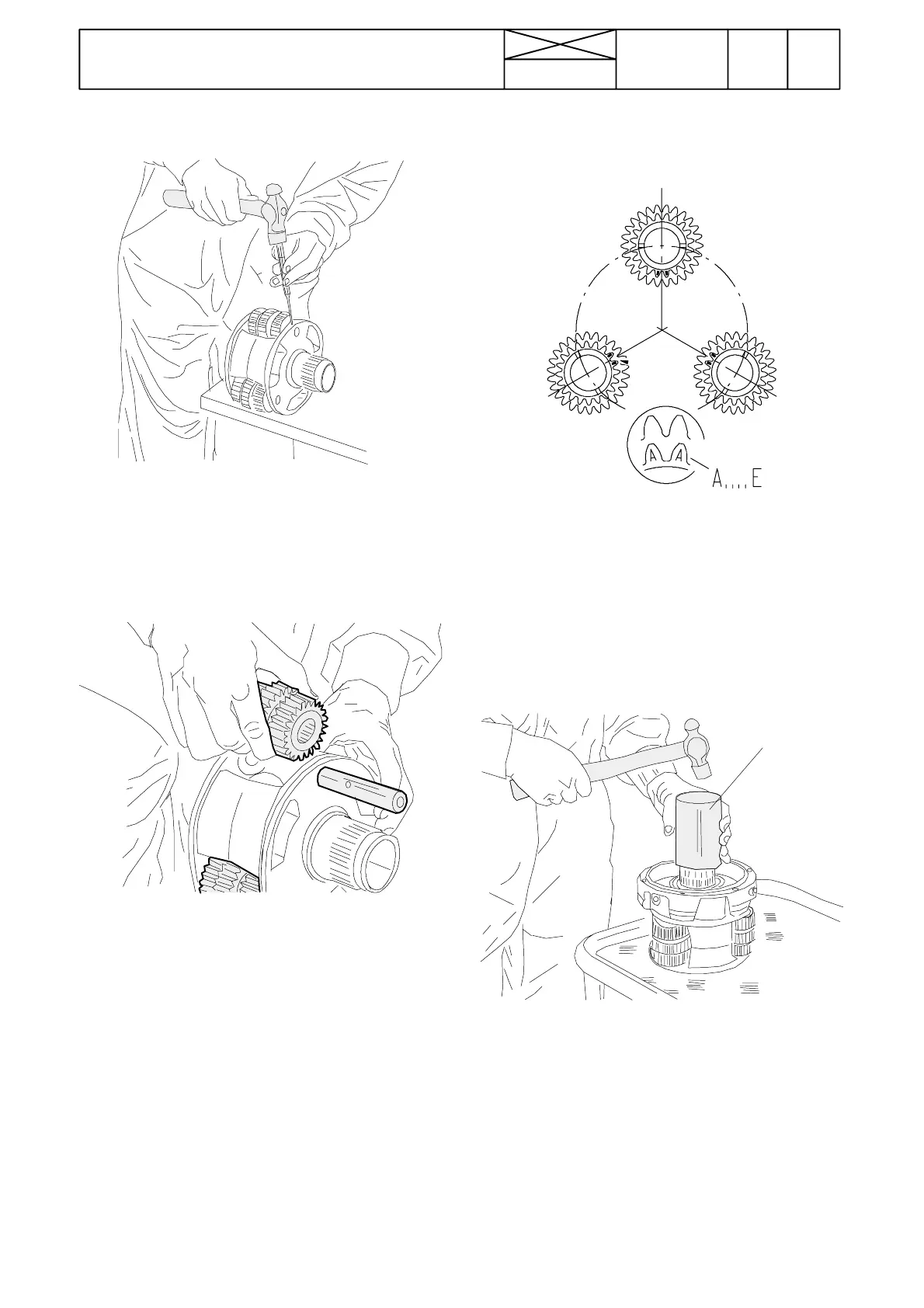

10. Knock the planet gear shaft tension pins into the shafts
and remove the shafts at which time the planetgears and their
needle bearings are releasing. Change damaged parts.
Assembling:
11. Fit the rearmost sun gear into its place (there is a spacer
ring behind the sun gear). Fit first two planet gears together
with the needle bearings and push their shafts into place.
12. Fit the tension pins so that the split sides come at the car-
rier groove and tap the pins a little deeper that the planetary
carrier surface to facilitate free flow of lubricating oil.
13.When the twoplanet gears have been fitted,place therear-
most sun gear so that the letter markings (A---E) on the planet
gears point towards the sun gear midpoint. Then fit the third
planet gear with the letter marking turned towards the sun
gear midpoint.
Note! All three planet gears should have the same letter mar-
king (either A, B,C, D or E).
14. Grease the piston seals and press the piston into its loca-
tion, if removed.
ETV 894 030
15. Fit the planetary gear foremost ball bearing into the atta-
ching flange against the shoulder (use e.g. ETV 894 030).
Placethe attaching flange onto the planetary carrier and fit the
ball bearing circlip.
