44. Delta P owershift
15. 5. 1993
6000--8750 444 6

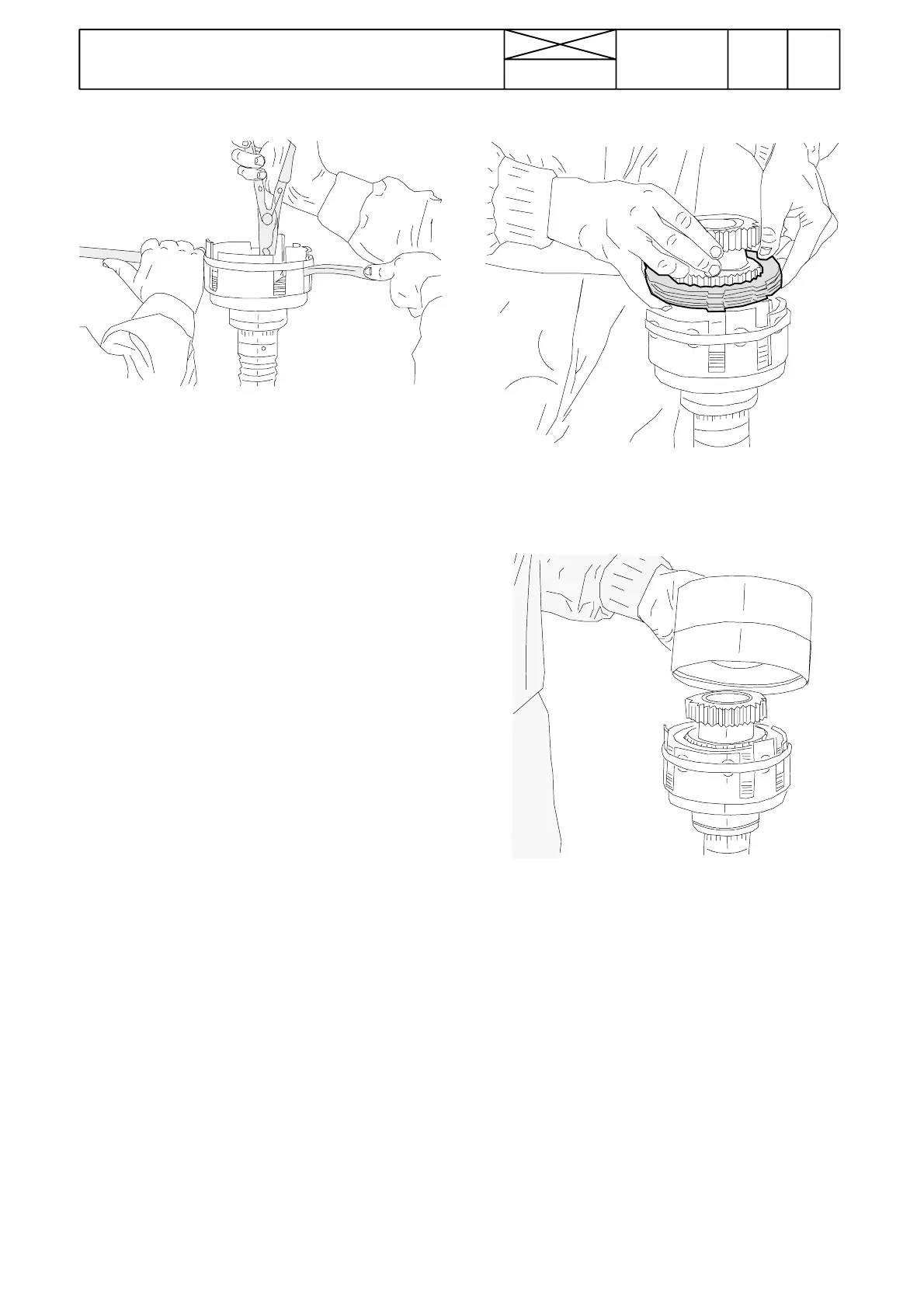

13. Fit six cup springs with concave sides against each other
on the piston. Open the circlip with pliers and press with two
pinch bars the circlip into its groove acco rding to picture
above.
14. Place the foremost clutch hub on the cup springs so that
the internal splines on the hub come upwards.
15. Fit the foremost clutch steel and friction discs (6 steel discs
and 5 friction disc). If the friction discs are worn out, change
thecompletediscpackatthesametime.
16. Fit the intermediate ring between the two multi---disc
clutc hes . Make sure that the locking ring is located in its
groove on the drum.
17. Push piano wire (thickness ø1 mm and length about 450
mm) under the intermediate ring locking ring. Bend the wire
ends outwards about 5 mm so t hat the wire cannot rotate.
18. Fit the rearmost clutch pack (6 steel discs and 5 friction
discs). Position the clutc h hub together with the sun gear
inside the discs.
19. Place the clutch casing on the drum and fit the circlip
which has bevelled ends.
Note! When Youturn the drum upside down, support the rear-
most clutch hub so that it does not disengage from the disc
pack.
