800
Model Code Page
45. Final drives
6000--8750
450 4
1. 8. 2000
1. 11. 1998
Z=82
Z=33
Z=14
10---20 Nm

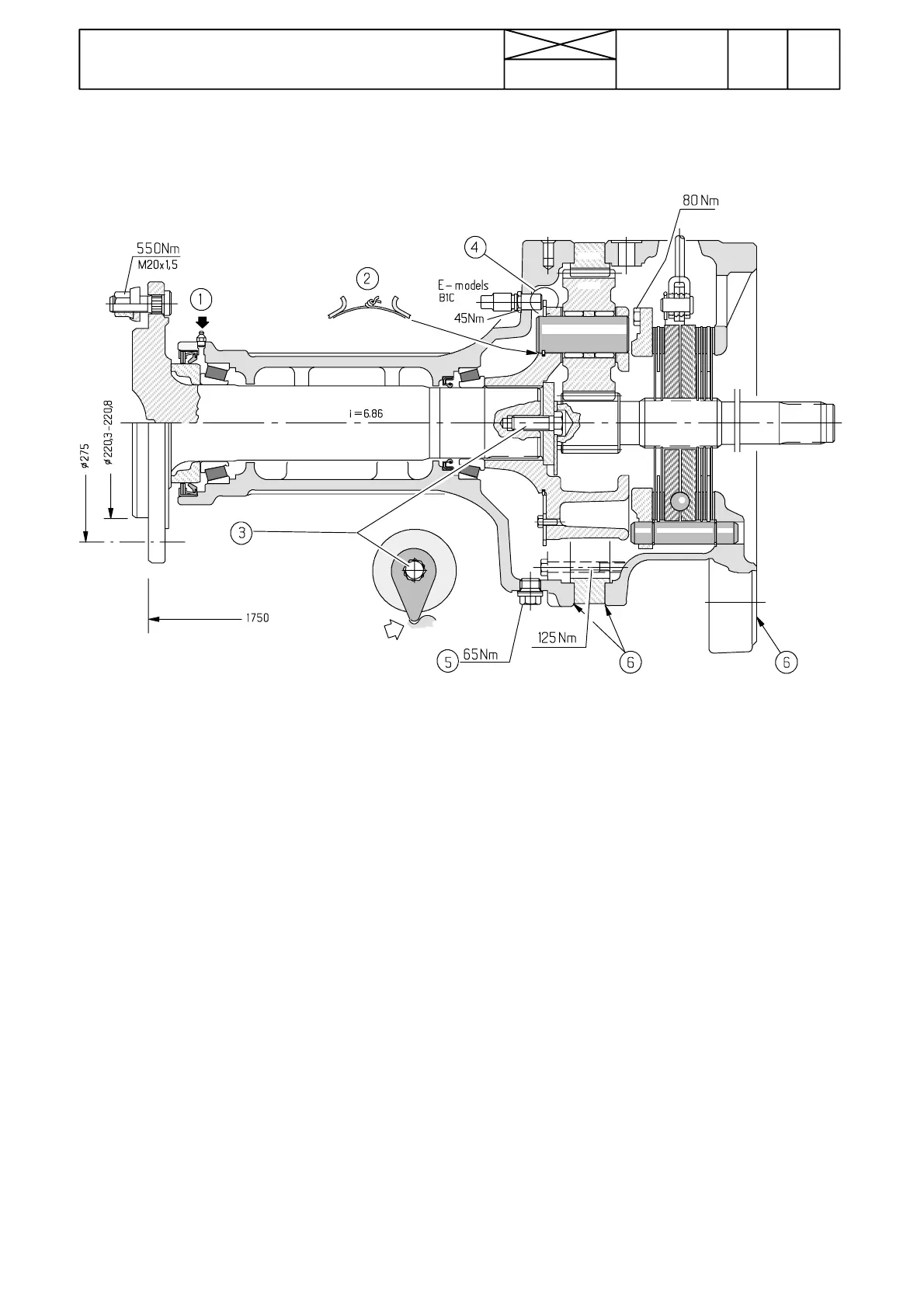

Figure 2. Final drives 450, tractors 6600 ---8750 ( ---J02315)
1. Grease nipple (grease bearing at intervals of 1000 running hours)
2. Wind the wire ends one to one and a half turns and bend them
3. Bearing clearance is adjusted by tightening the centre bolt to 10---20 Nm. Apply Loctite 270 onto bolt threads.
4. Speed sen sor and impulse disc (only E ---models)
5. Draining plug
6. Sealing compound Hylosil
