46. Power take ---off
1. 11. 1998
6000--8750 460 14
1. 1. 1995
2
13
ø3,2

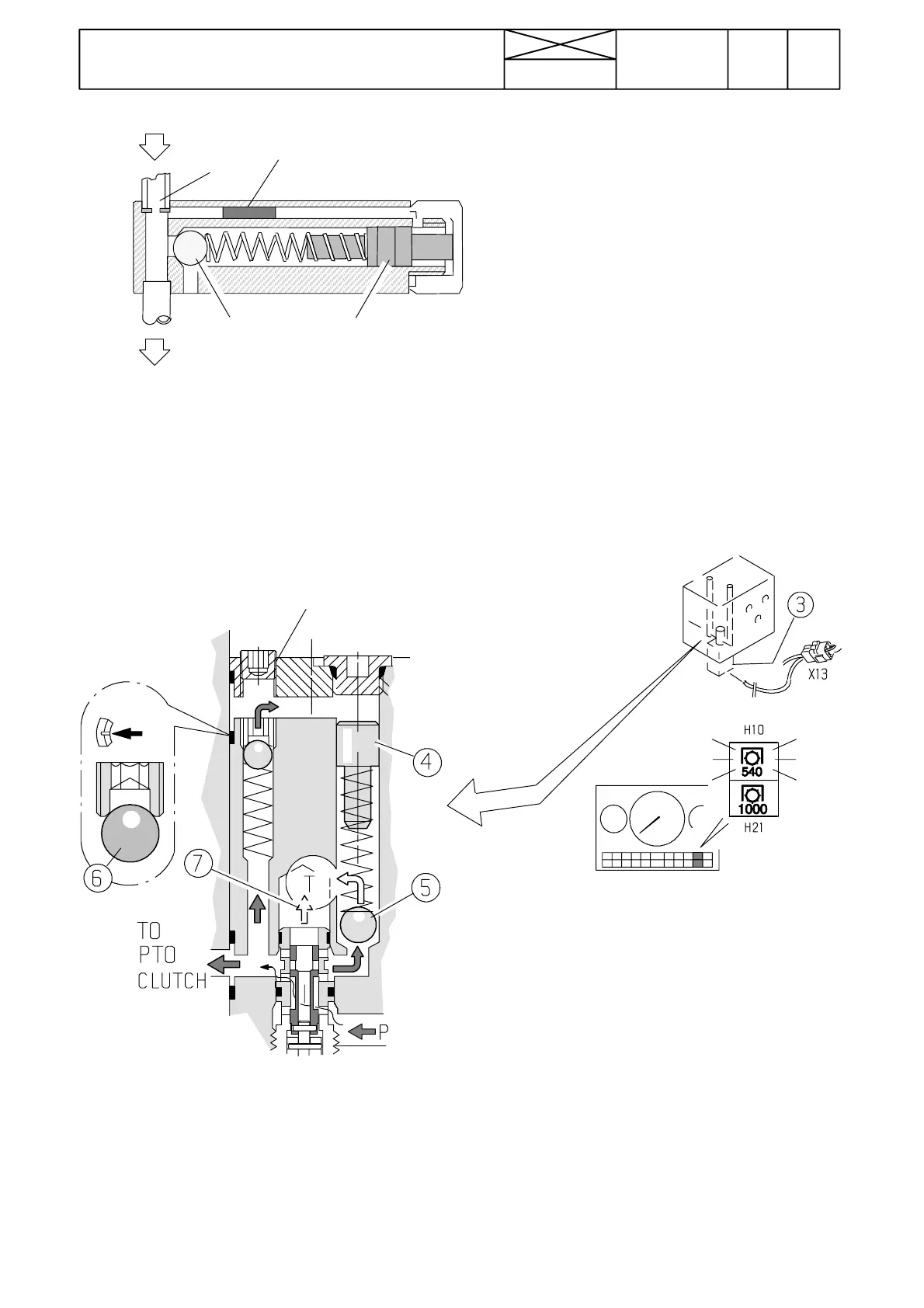

Picture 11. Cushioning valve, ---660070
1. Ball
2. Needle
3. Piston
Picture 12. Cushioning valve, 660071---
3. PTO solenoid valve under the servo valve block
4. Cushio ning valve piston
5. Valve ball of tank passage
6. Upper valve ball
7. Return oil to tank via solenoid valve
Note! From the beginning of the year 1994 (AC II), the
PTO has only one signal light. Picture above shows the
earlier fitting.
Note! On the tractors with the HiTech Shuttle, the PTO
clutch engagement is controlled by a proportional valve
and these tractors do not have the above shown cushio-
ning valve.
Loctite 542
