860
Model Code Page
46. Front PTO
1. 8. 2000
463 13E
6250Hi--
6850Hi
---K41106

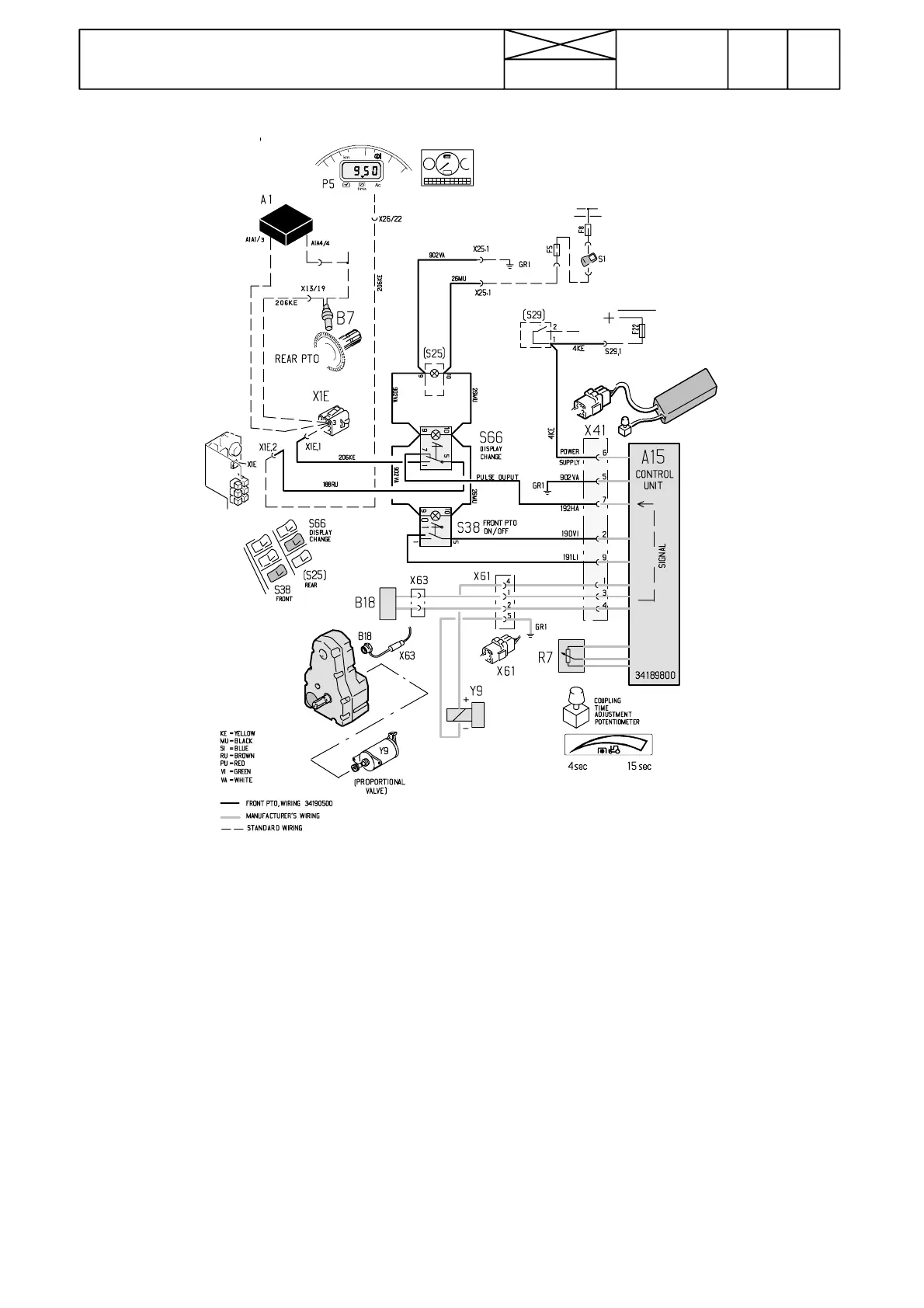

Picture 26. Wiring diagram of front PTO, ---K41106,
6250Hi---6850Hi
When the PTO speed has been selected in the upper disp-
lay of Agrodata---instrument (arrow at PTO symbole), the
display shows either front PTO or rear PTO rotation speed
depending on use of rocker switch S66:
With potentiometer R7 can be adjusted stepplessly the en-
gaging time of the front PTO (between 4---15 s econds). The
engagging time is independet of loading.
