51. Brakes
1. 9. 2002
8350--8950
510 5A
45 Nm
A
B

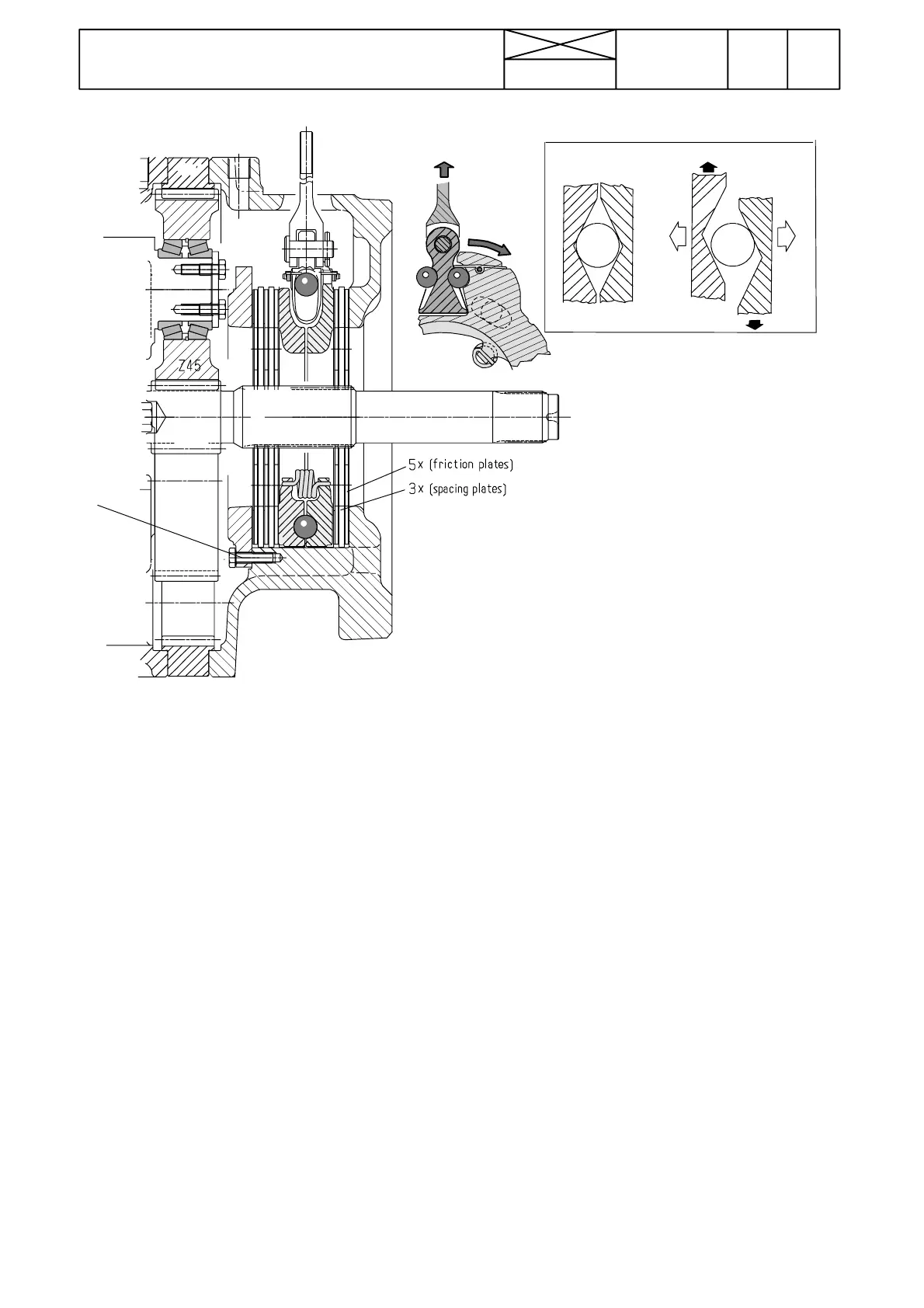

Picture 6A. Brake mechanism in 8350 ---8950Hi tractors,
which has final drives 700 (L32106---).
In connection with final drives 700 the brake mechanism is
different. In this system the application pl ate pressing force
agains the brake discs is obtained by the tapered part,
sides of which press the steel balls which turns the applica-
tion plates causing the brake force.
There is not an anchor bolt in the lower part of the brakes,
as in connection with final drives 300---650. In final drives
700therearesholdersintheintermediatediscsandinthe
application plates which engage in the notches casted in
therearaxlehousing.
The brake discs are fitted on the drive shaft splines so that
theholesinthediscsaretriedtoplacealmostinthesame
line in or der to facilitate free oil flow.
