245
Model Code Page
51. Brake system
1. 9. 2002
6000--8950 521 3
1. 11. 1998

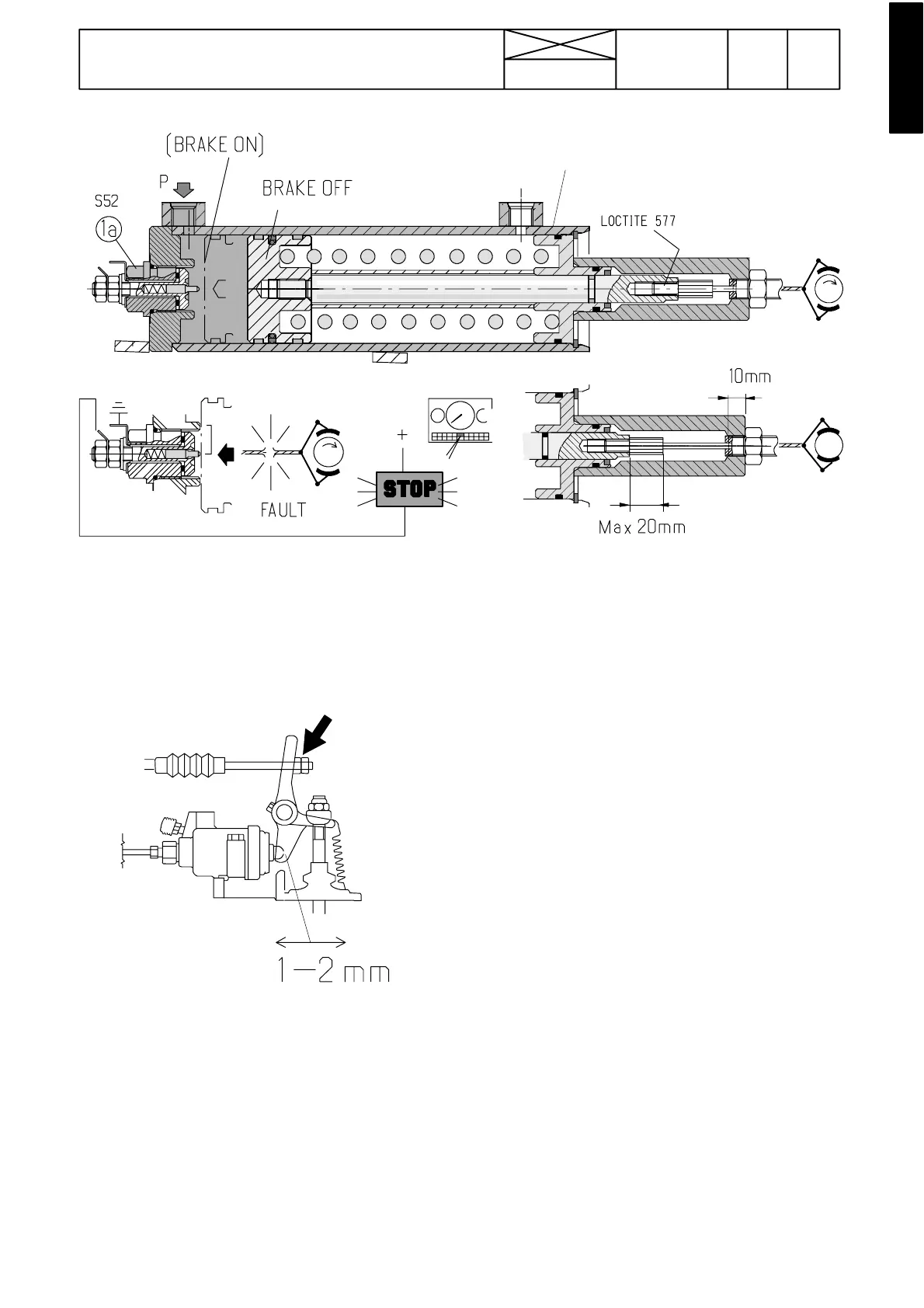

Picture 2. Hand brake ram on HiTech tractors.
1a) Safety switch lights up the STOP light in the dasboard, if e.g. the hand brake cable breaks.
Note! Adjusting dimensions MAX 20 and 10 mm must c ome true when fitting a new cable.
Adjusting hand brake on HiTech tractors
The length of the hand brake cable is adjusted, when necess-
ary, so that when the hand brake is disengaged (=ram pres-
surised), the clearance between the RH side brake cylinder
push rod and the brake mechanism lever is 1 --- 2 m m .The
clearance can be adjusted with nuts at the end of the cable
(arrow).
Note! Before adjustment ensure, that the foot brake is cor-
rectly adjusted, see instr. B on page 511/2.
