Logical Slot Assignment (PGM 103) 1-16
Chapter 1: SBX IP Online PC Admin
SBX IP - PC Admin Guide
In the case of VOIBE, if you select VOIBE slot into any type of COL/STA type, it will be added
in the other slot type. For example, if you select a VOIBE slot in COL board type, the PC Admin
software will add the VOIBE slot to the STA board type automatically.

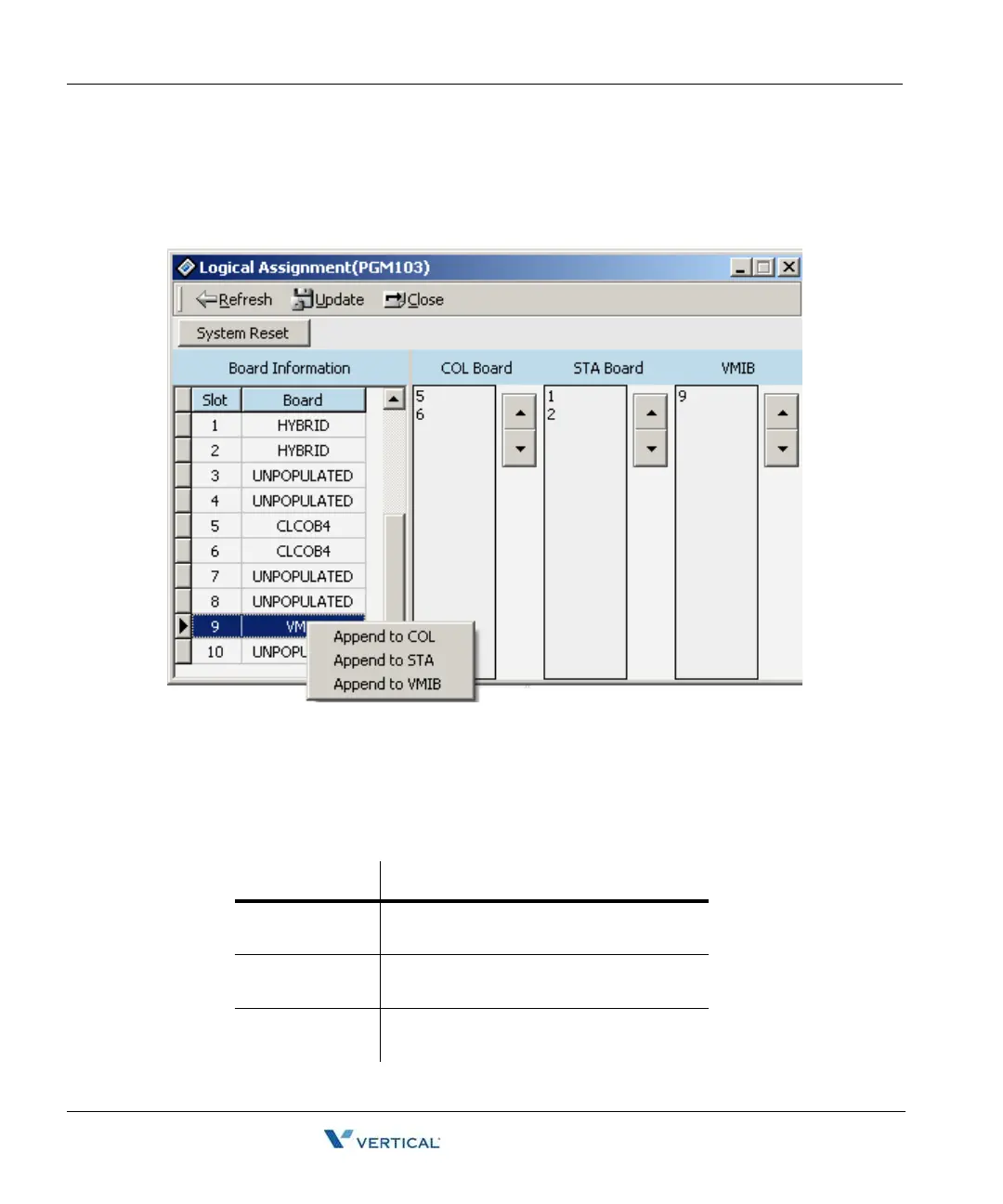

Figure 1-1 Logical Slot Assignment Window
DIP Switch Configuration for Slot Assignment (PGM103)
ITEM REMARK
COL board DIP ON: Manually
DIP OFF: Automatically
STA board DIP ON: Manually
DIP OFF: Automatically
VMIB DIP ON: Manually
DIP OFF: Automatically
To Next Page
