Vertical SBX IP - LCR - DMT Table (PGM 222)

LCR - DMT Table (PGM 222) 1-116
Chapter 1: SBX IP Online PC Admin
SBX IP - PC Admin Guide
LCR - DMT Table (PGM 222)
PGM 222 is the Digit Modification Table.
Operation
1. Click [LCR-DMT Table], and select DMT (0- 99)

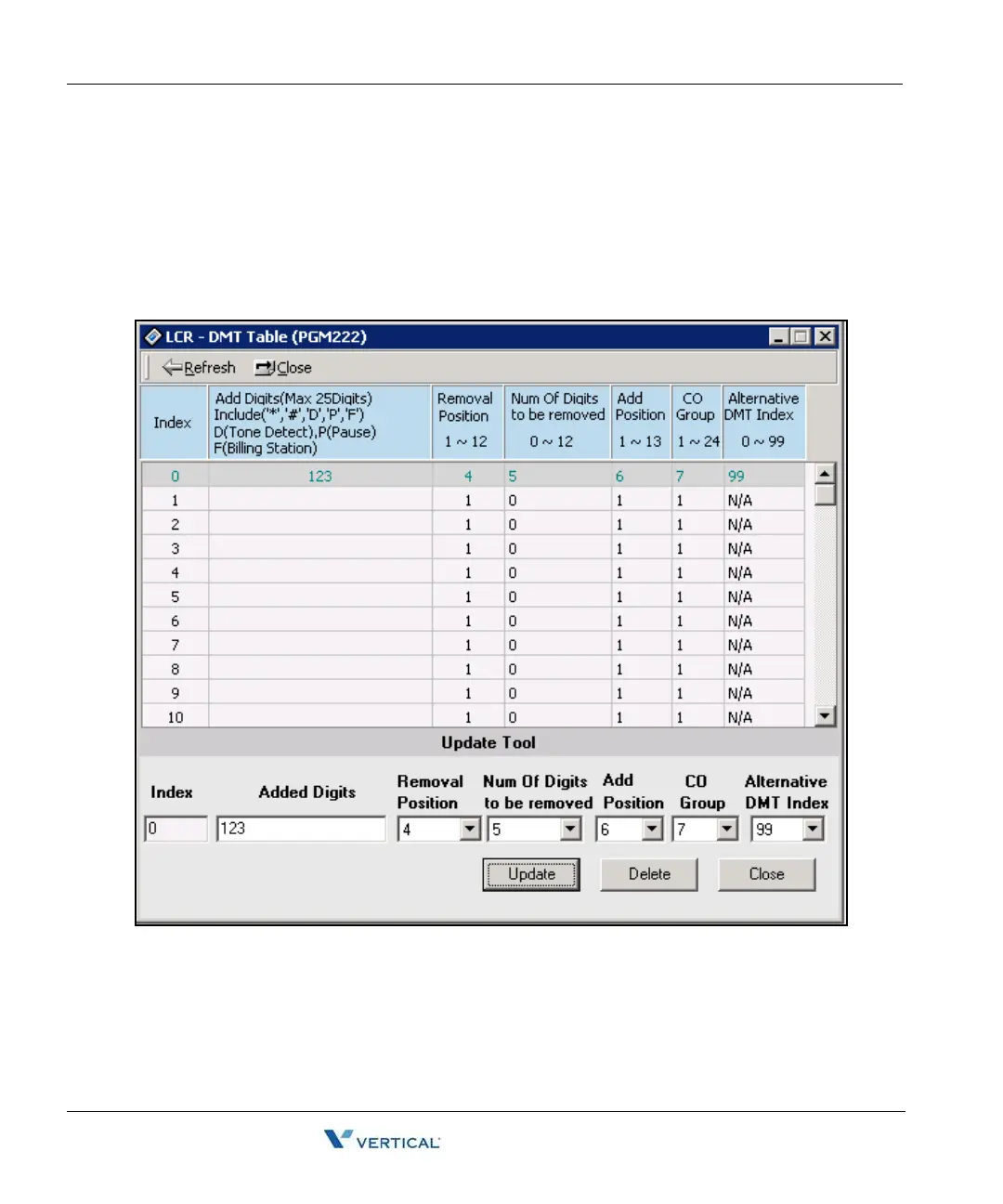

2. Click the [Update Tool]. The following dialog box appears
3. Added Digit Stream: 25 Digits in maximum.
4. Removal Position: Select a position to remove (1-12).
5. Number of digits to be removed: Select the number to be deleted (1-12).
6. Add Position: Select a position to be added (1-13).
Release 3.5
June 2010
