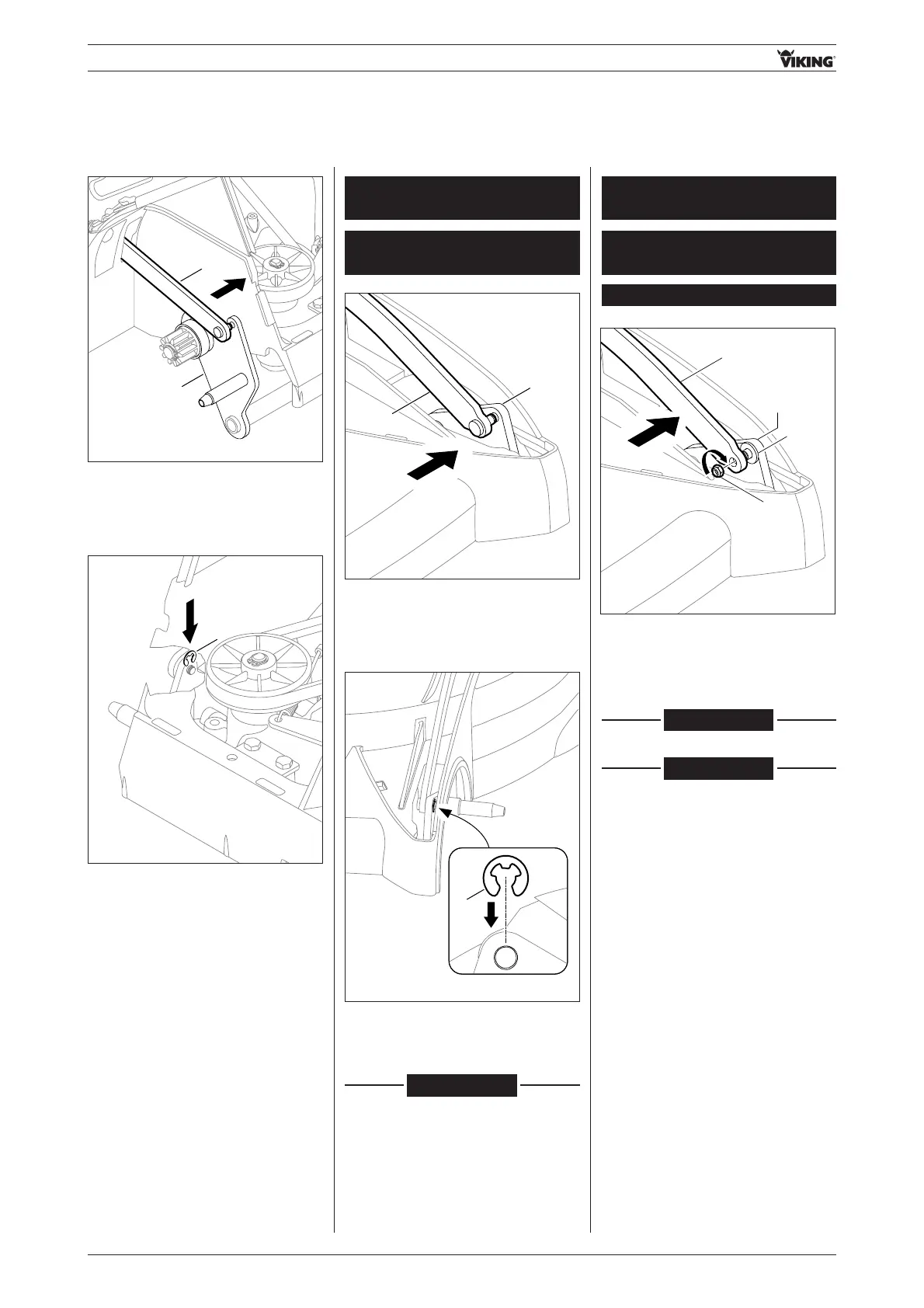

- Height adjustment -
• Attach translatory lever 1 to axle 2
(swivel plate).
1
2
• Fit retaining washer 1 to pin and clip
in using long-nose pliers.
1
• Fit retaining washer 1 to pin and clip
in using long-nose pliers.
1
- Install height adjustment spring
(see section 07.01.02)
- Install detent segment tension
spring
(see section 07.02.02)
- Install height adjustment indicator
(see section 07.05.02)
- Install front wheel
(see section 04.04.03)
- Install rear wheel cover
(see section 04.06.02)
1
3
2
4
Models MB 650.0
from serial number 4 31 244 752
Models MB 655.0
from serial number 4 31 230 688
Models MB 650.0
up to serial number 4 31 244 751
Models MB 655.0
up to serial number 4 31 230 687
 07.03.02 (A)
 07.03.02 (A)
• Fit washer 1 to pin of axle 2. Attach
translatory lever 3 in direction of
arrow. Tighten nut 4 (4-6 Nm).
• Attach translatory lever 1 to axle 2
(swivel plate).
1
2
76 RA_6360_6375_01 - EN
Models MB 655.1
