To insure equal air intake for all aspiration holes the following rules must be
obeyed:
▪ The length of the shortest and longest branch must not exceed a ratio of
1:2.
▪ The number of aspiration holes of the corresponding branches must not
exceed a ratio of 1:2.
▪ The aspiration holes should be evenly distributed on the corresponding
branches.
NOTICE
Each connected pipe system must comply with the design limits of TITA-
NUS
®
for the selected pipe design (please refer to chapter “Project Plan-
ning Limits”):

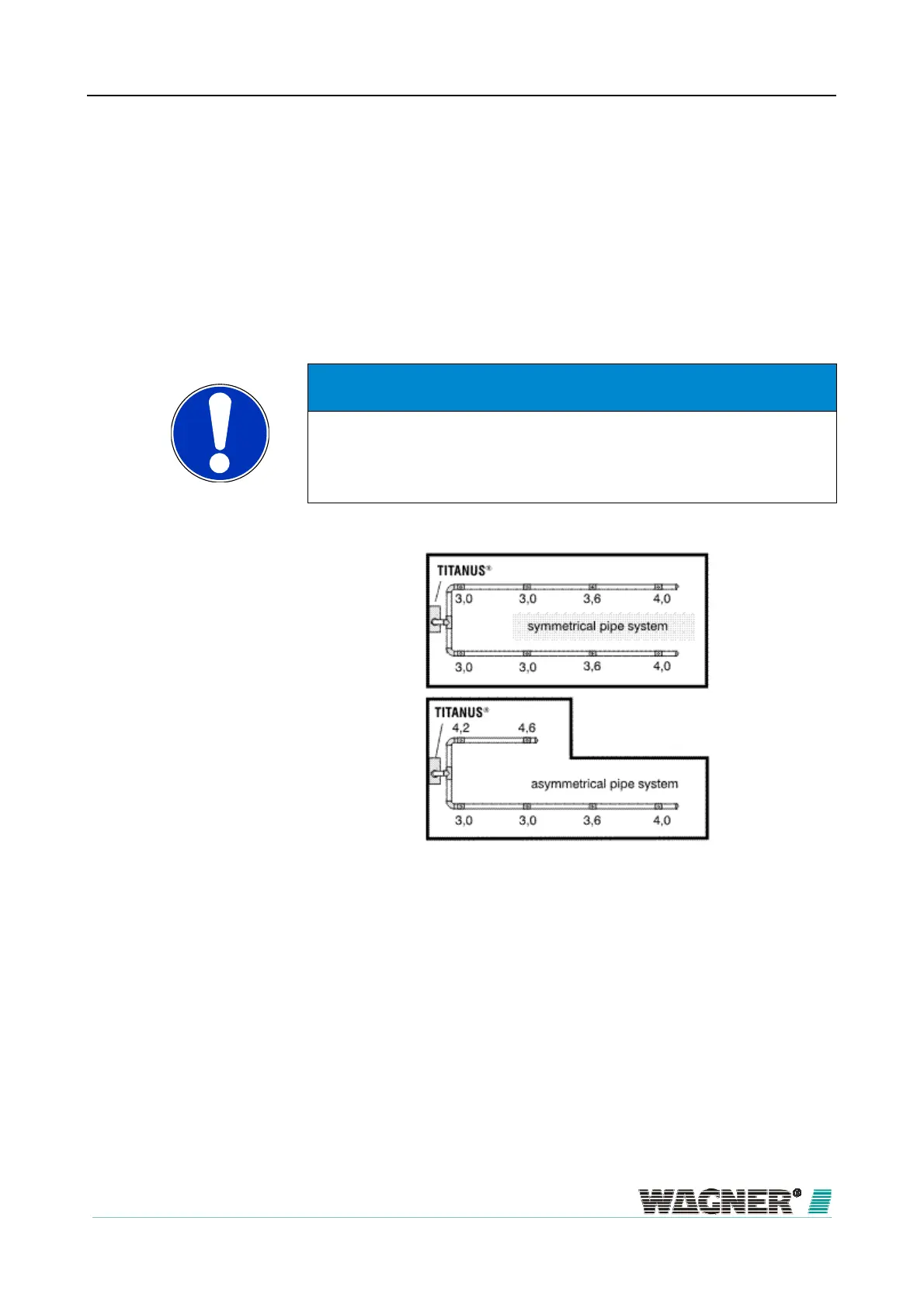

Figure 37: Example of a symmetrical and an asymmetrical U-pipe system
Figure „Example of a symmetrical and an asymmetrical U-pipe system” illus-
trates exemplary a U-shape pipe system with symmetrical and asymmetrical
pipe designs and according to chapter ´Standard Design´ the calculated di-
ameters of the aspiration holes. The diameters of the aspiration holes are
determined for each branch of the pipe system separately and are depend-
ent on the total number of aspiration holes of the respective branch. Please
refer to chapter “Hole diameters” for corresponding tables with hole diame-
ters.
Symmetry of the pipe system
