Chapter 2 General Information ALPHA V40
Version 18.07.06
16
System Block Diagram
See the ALPHA V40 Wipe-On versions as a left hand and a right hand system as follows:

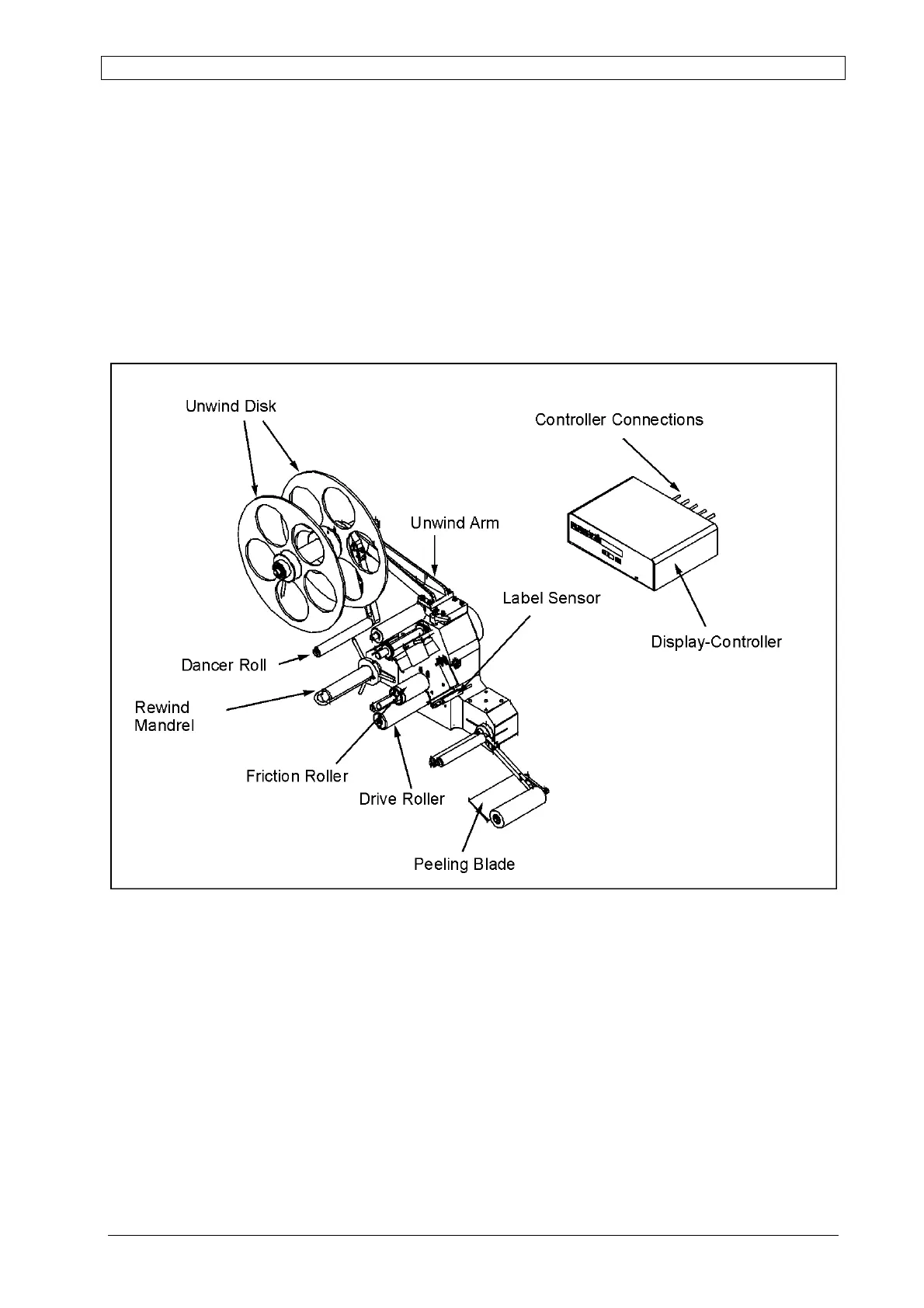

Figure 2-1: ALPHA V40 in left hand version (LH)
FIG. 2-1: ALPHA V40 (LH)
