Chapter 4 Inputs / Outputs ALPHA V40
Version 18.07.06
26
4. Inputs / Outputs
This chapter covers the connections of controller and input configuration of
sensors.
CAUTION!!
Any setup procedure of this chapter should only be performed by a qualified service
technician!
Connections on rear panel
See explanations for any connection (shown on Fig. 4-1) on the next pages.

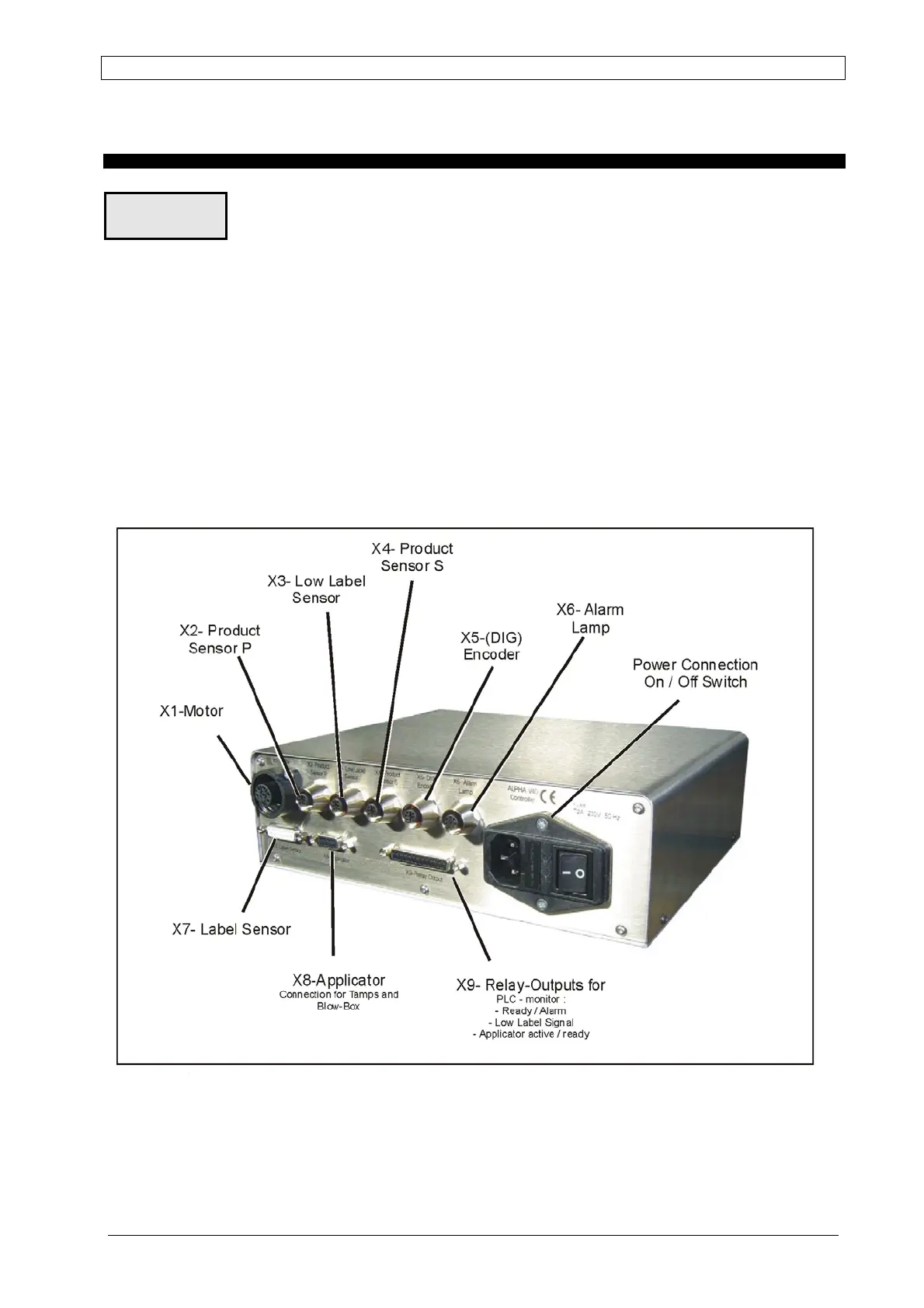

Fig. 4-1: Connections on the Controller Back
