Chapter 4 Inputs / Outputs ALPHA V40
Version 18.07.06
36
Relay Outputs (X9-RELAY-OUTPUTS)
This is also a standard connector which can use for monitoring the conditions of ALPHA V40.
It is used to synchronize conveyer PLCs to the application sections in order to apply labels with
an exact timing.

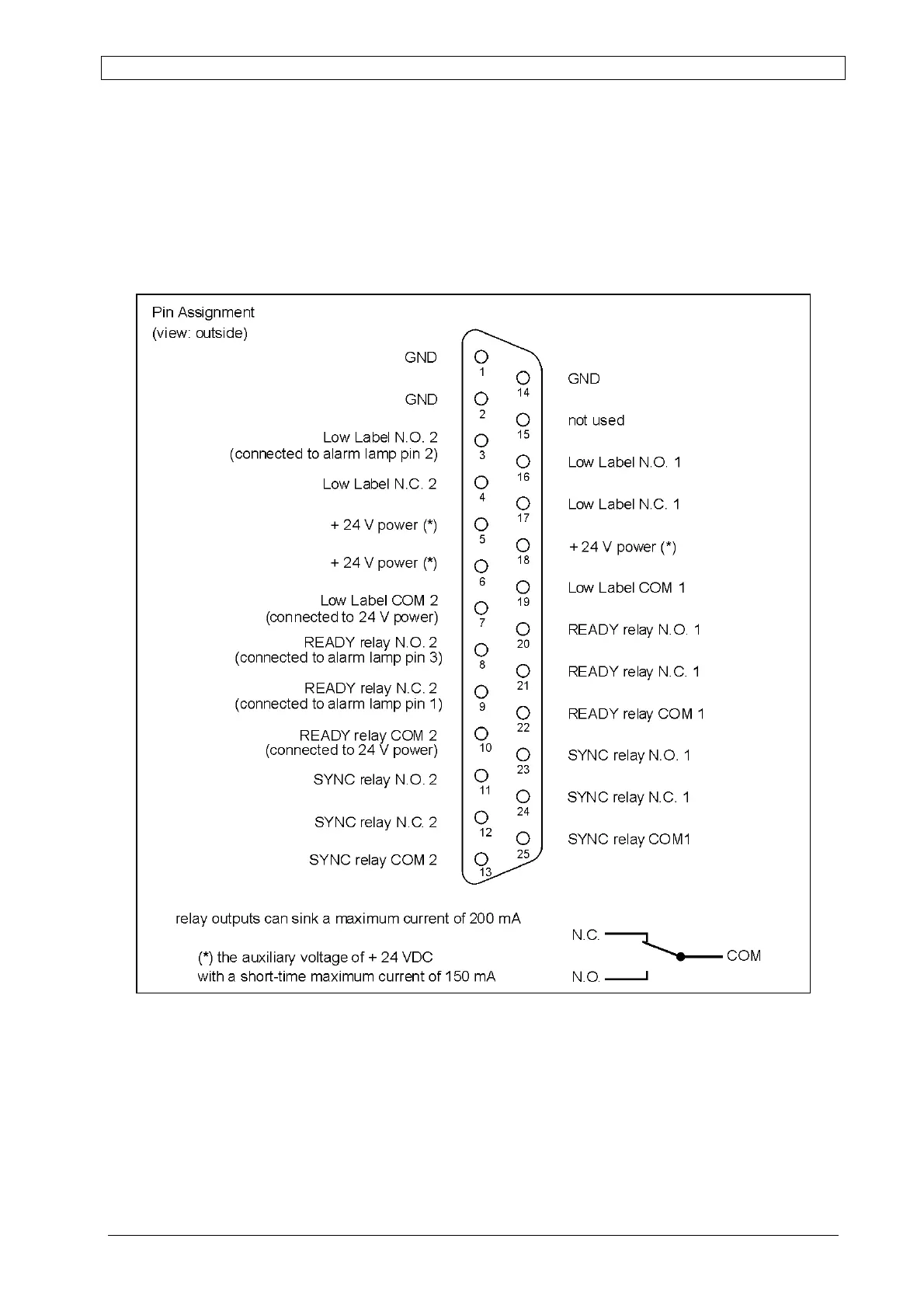

Signal descriptions for the 25- pin female socket below.
Fig. 4-13: Interface Relay Output
See the declarations of assignments in the following.
