GENERAL
M6060, M7060, WSM
G-79

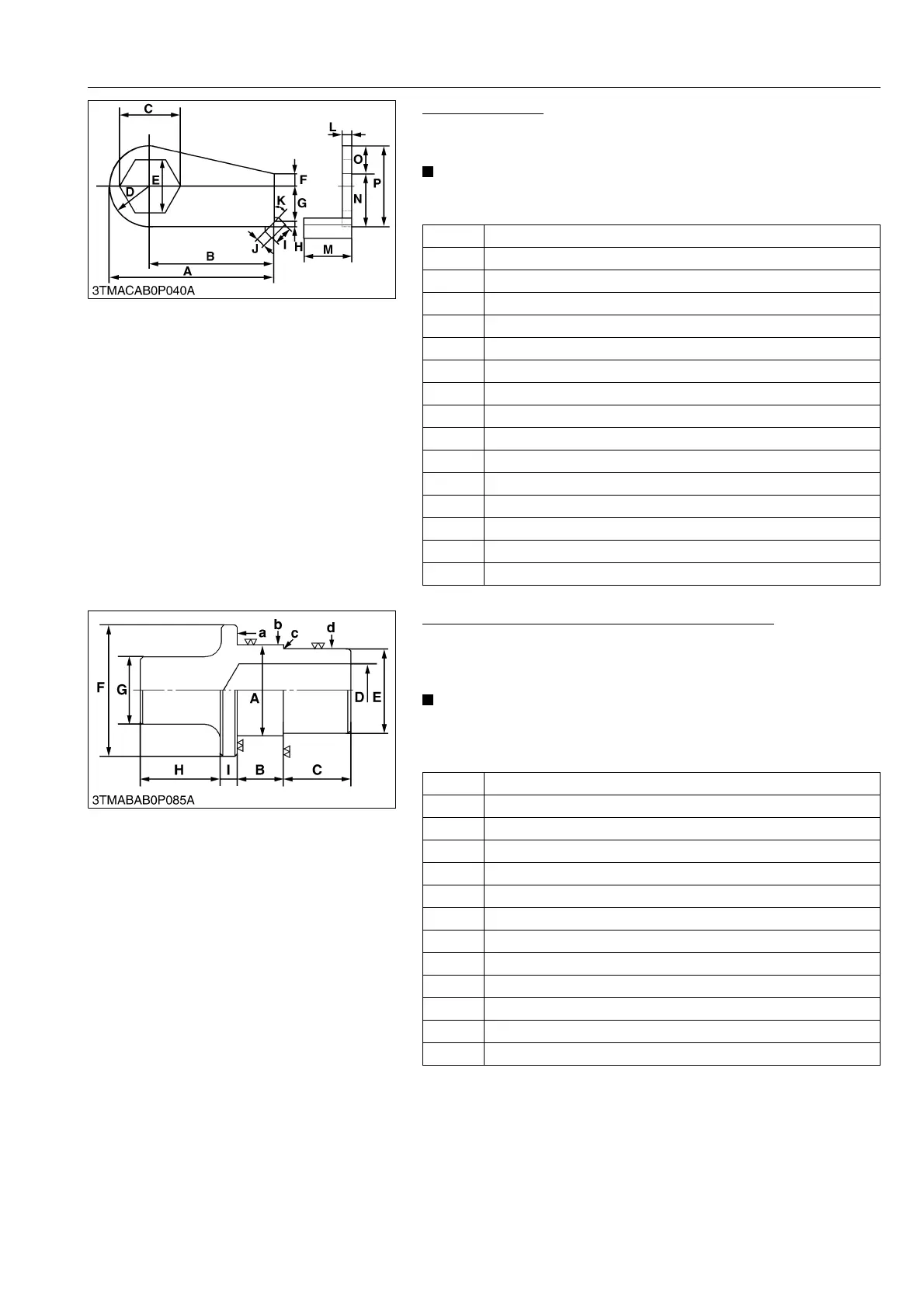

Locking Wrench
Application
• Use for locking pinion nut.
NOTE
• The following special tool is not provided, so make it
referring to the figure.
9Y1210828GEG0111US0
Hydraulic Arm Shaft Bushing Press-Fitting Tool
Application
• Use for replacing the hydraulic arm shaft bushings in the
hydraulic cylinder body.
NOTE
• Unless otherwise specified : All surface 12.5 µm (0.0005 in.)
• The following special tool is not provided, so make it
referring to the figure.
9Y1210828GEG0112US0
A 170 mm (6.69 in.)
B 130 mm (5.12 in.)
C 63.5 mm (2.5 in.)
D 40 mm radius (1.57 in. radius)
E 55 mm (2.17 in.)
F 15 mm (0.59 in.)
G 35 mm (1.38 in.)
H 5 mm (0.2 in.)
I 20 mm (0.55 in.)
J 10 mm (0.39 in.)
K 0.78 rad (45 °)
L 10 mm (0.39 in.)
M 50 mm (1.97 in.)
N 55 mm (2.17 in.)
O 25 mm (0.97 in.)
P 80 mm (3.15 in.)
A 49.85 to 49.95 mm (1.963 to 1.966 in.)
B 15 mm (0.59 in.)
C 50 mm (1.969 in.)
D 30 mm (1.18 in.)
E 44.85 to 44.95 mm (1.766 to 1.770 in.)
F 78 mm dia. (3.07 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)
I 20 mm (0.79 in.)
a 6.3 µm (0.00025 in.)
b 6.3 µm (0.00025 in.)
c 6.3 µm (0.00025 in.)
d 6.3 µm (0.00025 in.)
KiSC issued 08, 2013 A
