Draft Control Test Bar
Application
• Use for checking the lift range and floating range of hydraulic
draft control.
NOTE

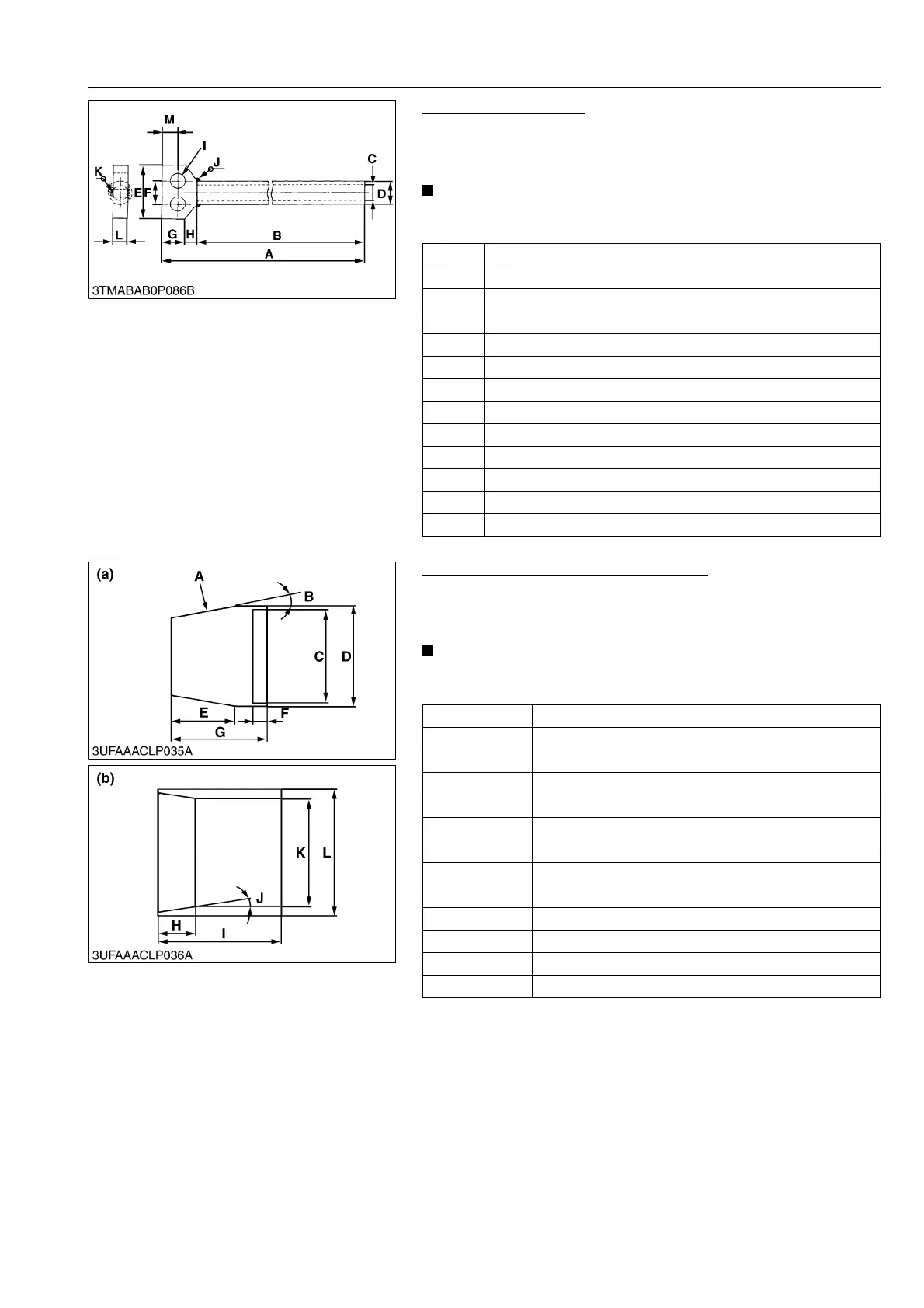

• The following special tool is not provided, so make it
referring to the figure.
9Y1210828GEG0114US0
Hydraulic Cylinder Piston Sealing Tool
Application
•Tool (a): Use for installing the piston seals to the piston.
•Tool (b): Use for installing the piston to the cylinder.
NOTE
• The following special tool is not provided, so make it
referring to the figure.
9Y1210828GEG0115US0
A 1045 mm (41.14 in.)
B 1000 mm (29.37 in.)
C 20 mm dia. (0.79 in. dia.)
D 30 mm dia. (1.18 in. dia.)
E 100 mm (3.94 in.)
F 35.5 mm (1.4 in.)
G 30 mm (1.18 in.)
H 15 mm (0.59 in.)
I 20 mm dia. (0.79 in. dia.)
J Weld all around
K Weld all around
L 20 mm (0.79 in.)
M 26 mm (1.02 in.)
Cylinder Size 55 mm (2.17 in.)
A 80 √
B 0.16 rad (9.0 °)
C 55.18 mm (2.172 in.)
D 56.18 mm (2.212 in.)
E 42 mm (1.7 in.)
F 10 mm (0.39 in.)
G 58.5 mm (2.30 in.)
H 14 mm (0.55 in.)
I 35 mm (1.4 in.)
J 0.12 rad (7.0 °)
K 55.0 mm (2.17 in.)
L 63.9 mm (2.52 in.)
