GENERAL
M6060, M7060, WSM
G-90
Stopper Bolt (for A/C Compressor)
Application
• Use with the stopper magnet clutch.
NOTE

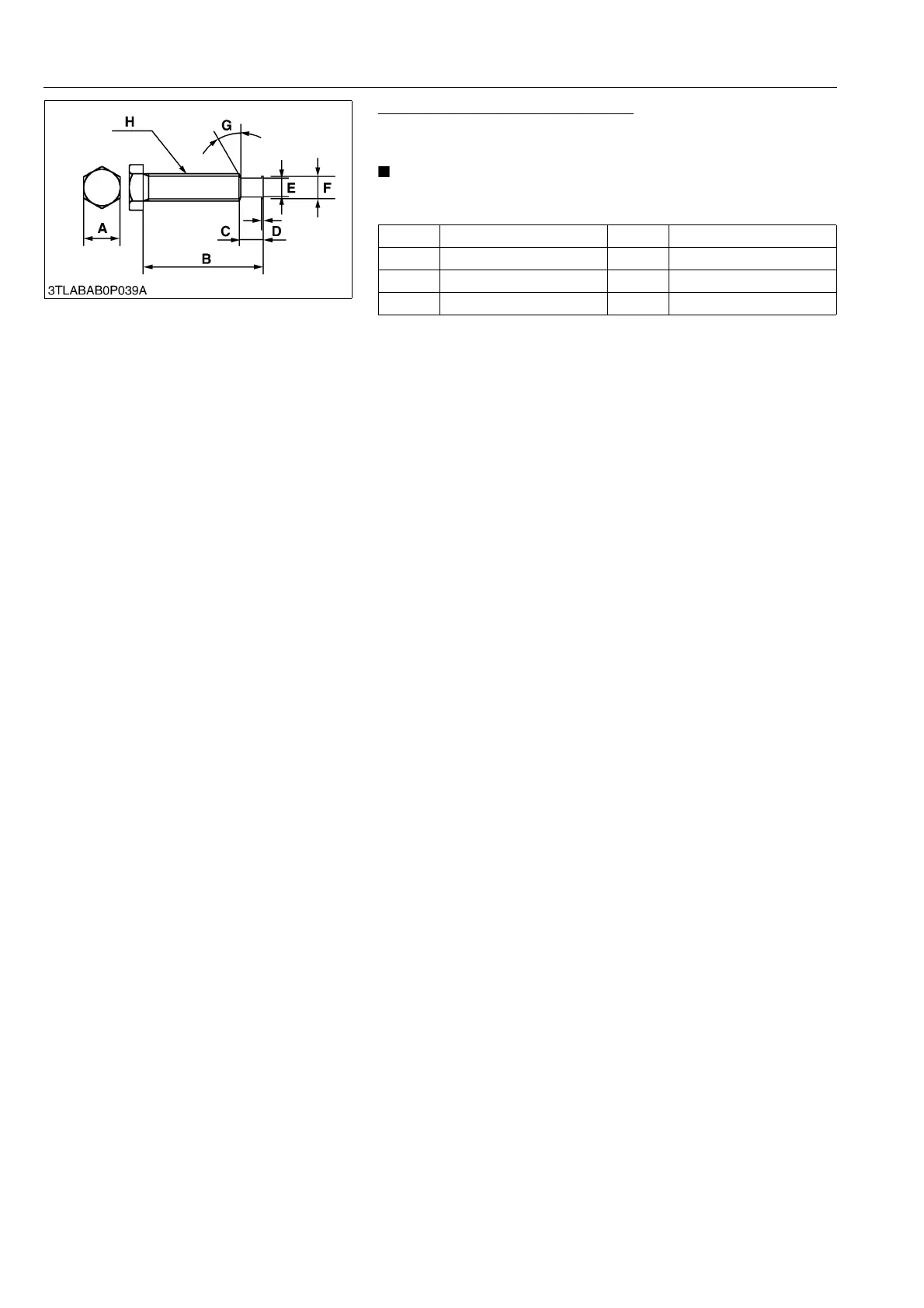

• The following special tool is not provided, so make it
referring to the figure.
9Y1210828GEG0126US0
A 12 mm (0.47 in.) E 5.5 mm dia. (0.22 in. dia.)
B 35 mm (1.38 in.) F 6.5 mm dia. (0.26 in. dia.)
C 7 mm (0.28 in.) G 0.52 rad (30 °)
D 0.4 mm (0.016 in.) H M8 × P1.25
KiSC issued 08, 2013 A
