Injection
CAUTION
• When a calcium chloride solution is used, cool it before
pouring it into the tire.
• Do not fill tires with water or solution more than 75 % of full
capacity (to the valve stem level).
The following four ways can be used to inject water or a calcium
chloride solution into tires.
1. Gravity injection (Fig. 1)
2. Pump injection (Fig. 2)
3. Pressure tank injection (Fig. 3)
4. Injection directly from tap (only when water is being used).
NOTE
• Once injection is completed, reset the air valve, and pump
air into the tire to the specified pressure.
Weight of Calcium Chloride Solution Filling 75 % of Full
Capacity of a Tire
9Y1210828GEG0137US0
Tire sizes Water
Slush free at −24 °C
(−11 °F)
Solid at −47 °C (−53 °F)
[Approx. 1.5 kg (3.5
lbs.) CaCl
2
per 4 L (1
gal.) of water]
Slush free at −47 °C
(−53 °F)
Solid at −52 °C (−62 °F)
[Approx. 2.25 kg (5
lbs.) CaCl
2
per 4 L (1
gal.) of water]
380/85R28
178 kg
392 lbs
217 kg
478 lbs
231 kg
509 lbs
420/70R28
185 kg
408 lbs
226 kg
498 lbs
241 kg
531 lbs
420/85R30
241 kg
531 lbs
294 kg
648 lbs
313 kg
690 lbs
18.4-26
299 kg
659 lbs
365 kg
805 lbs
389 kg
858 lbs
230/95R36
77 kg
170 lbs
94 kg
210 lbs
100 kg
220 lbs
270/95R38
148 kg
326 lbs
181 kg
399 lbs
192 kg
423 lbs
12.4R36
165 kg
364 lbs
201 kg
443 lbs
215 kg
474 lbs
9.5R40
126 kg
278 lbs
154 kg
340 lbs
164 kg
362 lbs
380/85R30
188 kg
414 lbs
229 kg
505 lbs
244 kg
538 lbs
440/80R28
275 kg
606 lbs
336 kg
741 lbs
358 kg
789 lbs

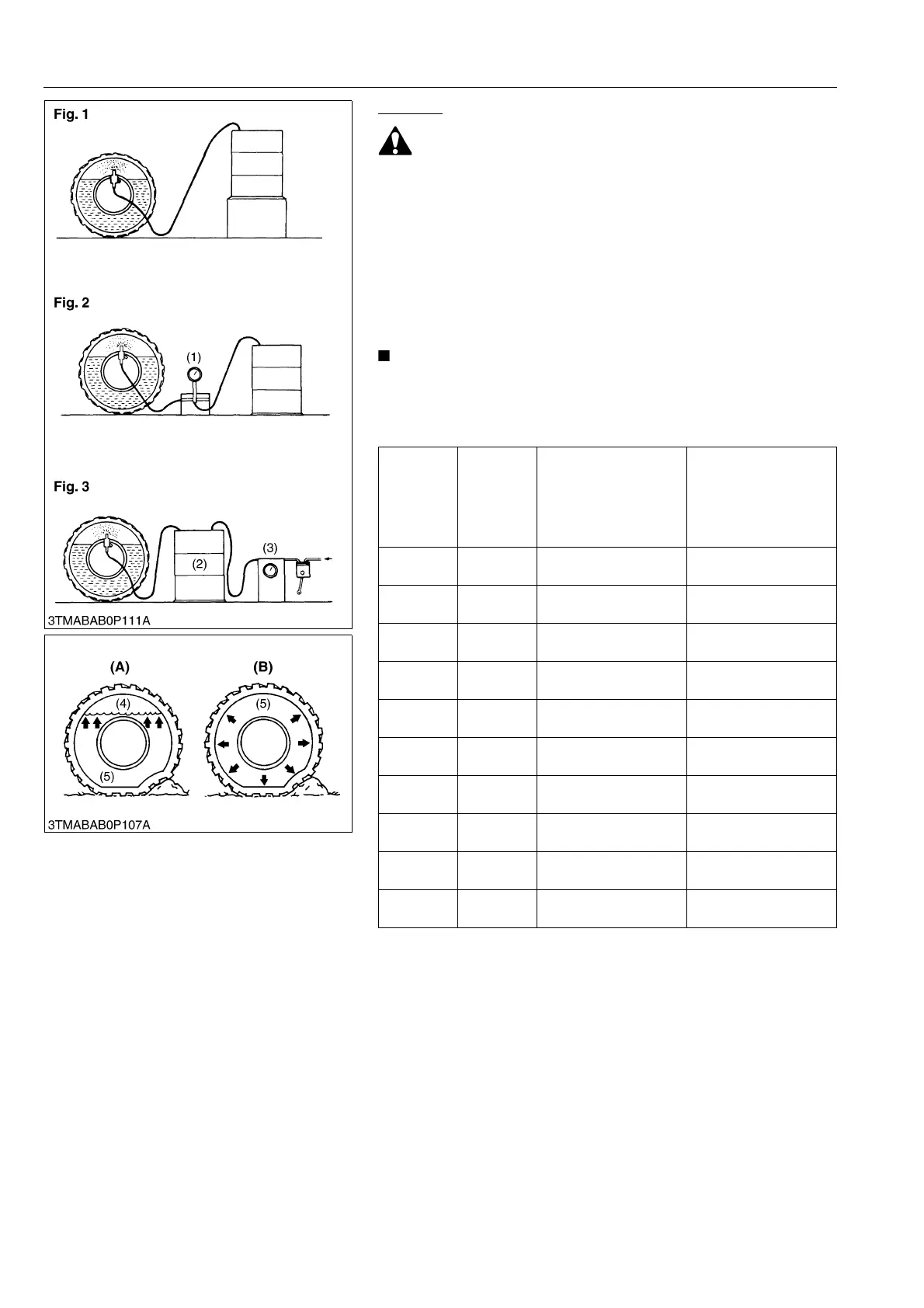

(1) Pump
(2) Pressure Tank
(3) Compressor
(4) Air
(5) Water
(A) Correct : 75 %
Air Compresses Like A Cushion
(B) Incorrect : 100 % Full
Water Can Not Be Compressed
