ENGINE
M6060, M7060, WSM
1-S25
Fuel Hose and Oil Cooler Pipe

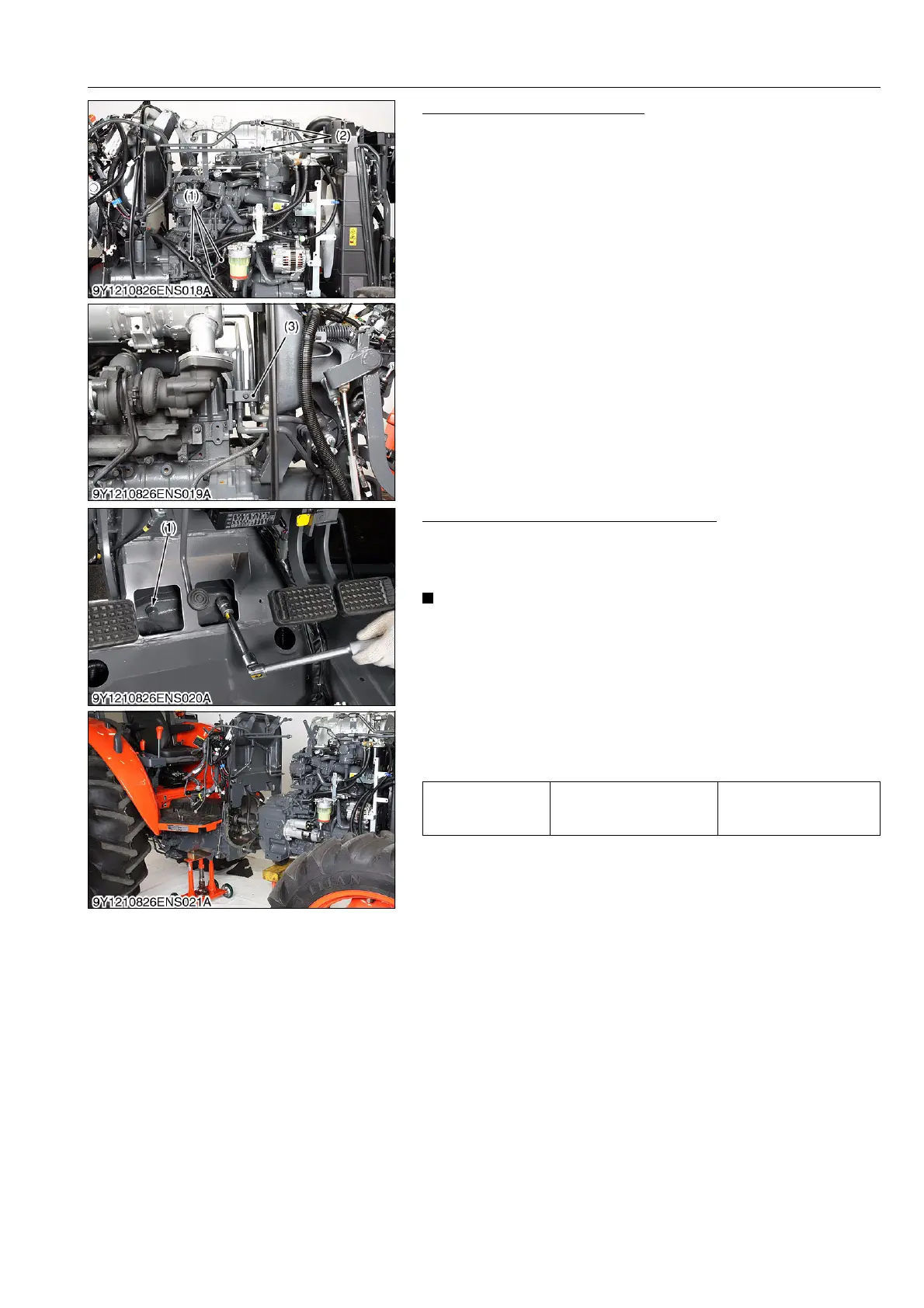

1. Disconnect the fuel hoses (1).
2. Disconnect the oil cooler pipes (2).
3. Remove the oil cooler pipe mounting stay (3).
9Y1210828ENS0029US0
Separating Engine from Clutch Housing
1. Support the engine for separating from the clutch housing.
2. Remove the engine mounting screws and nut (1), and separate
the engine from the clutch housing.
• When you replace the engine with a new one, please record
the serial number of new engine and the parts number and
serial number of "DPF Full Assembly" which is incorporate
with its new engine.
(When reassembling)
• Apply molybdenum disulphide (Three Bond 1901 or equivalent)
to the splines of damper disk boss.
• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face
of the engine and clutch housing.
9Y1210828ENS0030US0
(1) Fuel Hose
(2) Oil Cooler Pipe
(3) Oil Cooler Pipe Mounting Stay
Tightening torque
Engine and clutch housing
mounting screw and nut
(M14, 7T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
(1) Engine Mounting Screw and Nut
