ENGINE
M6060, M7060, WSM
1-S31

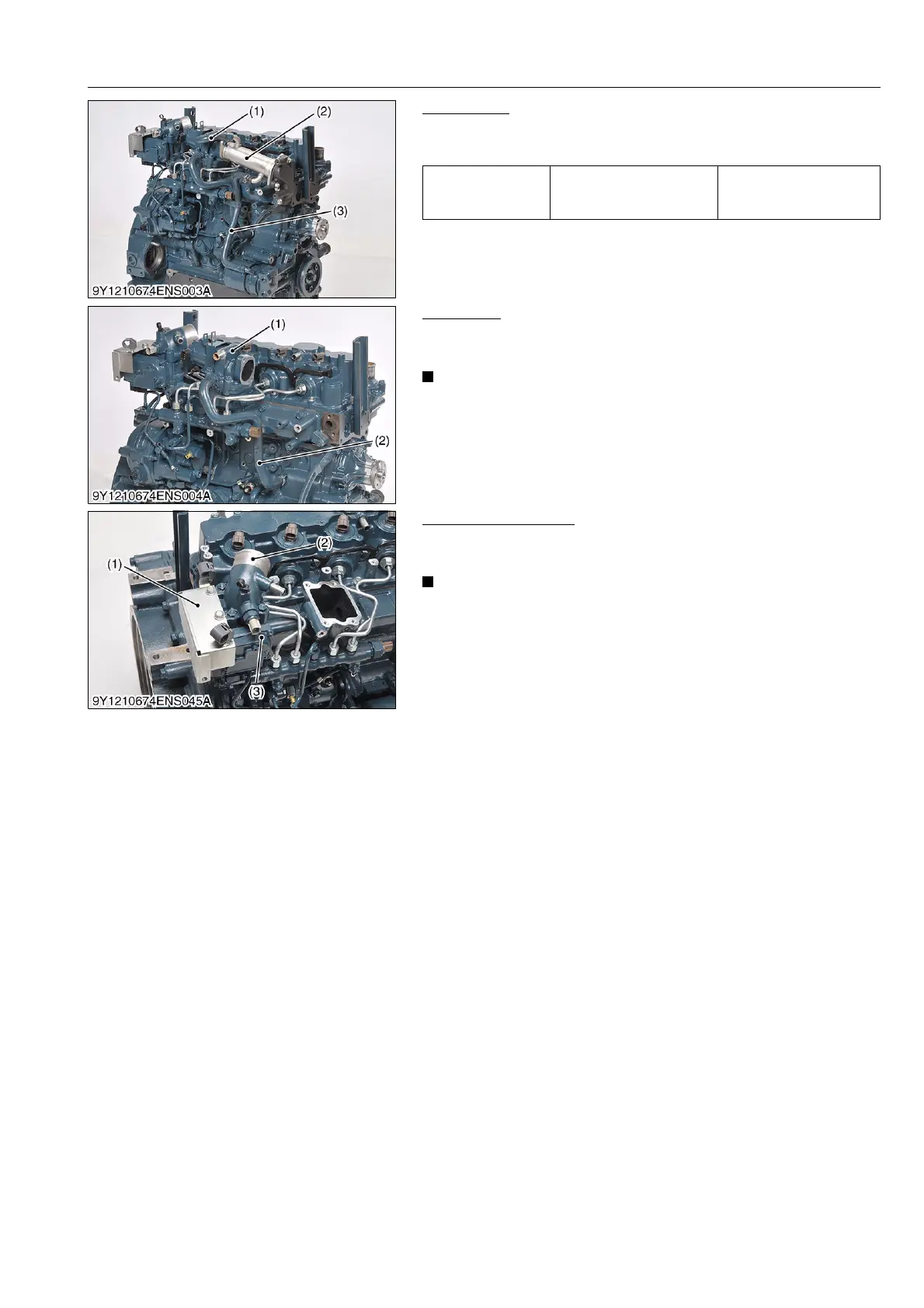

EGR Cooler
1. Disconnect the EGR cooler pipe (1), (3).
2. Remove the EGR cooler (2).
9Y1210828ENS0041US0
EGR Valve
1. Disconnect the cooler pipe (2) of EGR valve.
2. Remove the EGR valve (1).
NOTE
• Do not disassemble the EGR valve assembly.
(When reassembling)
• Replace the gaskets with new ones.
9Y1210828ENS0042US0
Intake Throttle Valve
1. Remove the cover (1) and the air cleaner flange (2).
2. Remove the intake throttle valve (3).
NOTE
• Do not disassemble the intake throttle valve.
(When reassembling)
• Replace the gaskets with new ones.
9Y1210828ENS0043US0
Tightening torque EGR cooler flange screw
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) EGR Cooler Pipe
(2) EGR Cooler
(3) EGR Cooler Pipe
(1) EGR Valve (2) Cooler Pipe
(1) Cover
(2) Air Cleaner Flange
(3) Intake Throttle Valve
KiSC issued 08, 2013 A
