ENGINE
M6060, M7060, WSM
1-S37

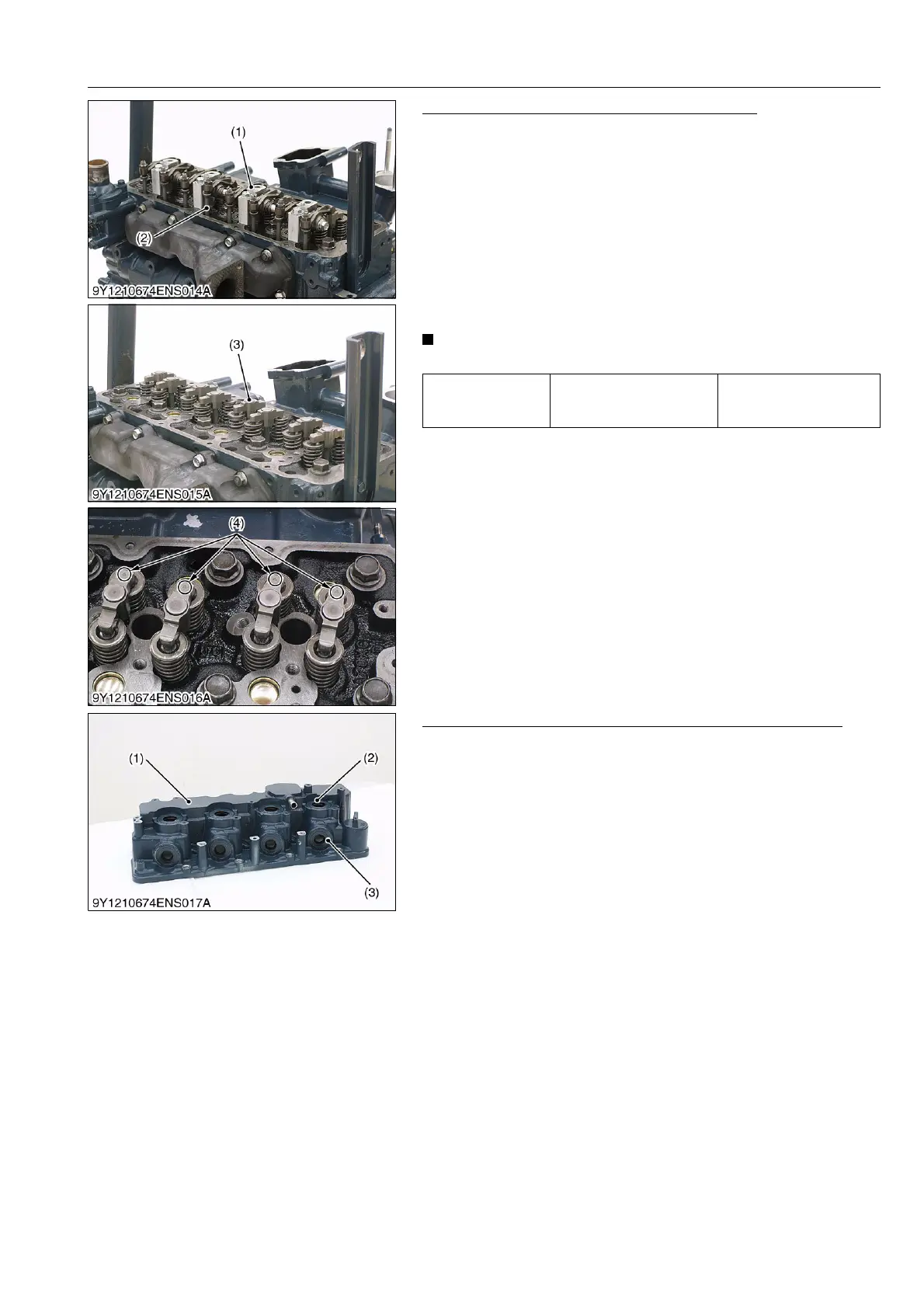

Rocker Arm, Push Rod and Valve Bridge Arm
1. Remove the rocker arm (1) as a unit.
2. Remove the push rods (2).
3. Remove the valve bridge arm (3).
(When reassembling)
• When installing the push rod (2), mount it securely in the groove
of the tappet.
• When installing the valve bridge arm (3), apply engine oil to the
valve bridge shaft sufficiently and check whether to move
smoothly.
• When installing the valve bridge arm (3), face the mark (4) to
intake side.
IMPORTANT
• After installing the rocker arm, adjust the valve clearance.
9Y1210828ENS0053US0
Injector Oil Seal and Injection Pipe Oil Seal (If necessary)
1. Remove the injector oil seal (2) and injection pipe oil seal (3)
from cylinder head cover (1).
(When reassembling)
• When installing the injector oil seal (2) and injection pipe oil seal
(3), use the new one.
9Y1210828ENS0054US0
Tightening torque Rocker arm bracket screw
49 to 55 N·m
5.0 to 5.7 kgf·m
37 to 41 lbf·ft
(1) Rocker Arm
(2) Push Rod
(3) Valve Bridge Arm
(4) Mark
(1) Cylinder Head Cover
(2) Injector Oil Seal
(3) Injection Pipe Oil Seal
KiSC issued 08, 2013 A
