ENGINE
M6060, M7060, WSM
1-S67

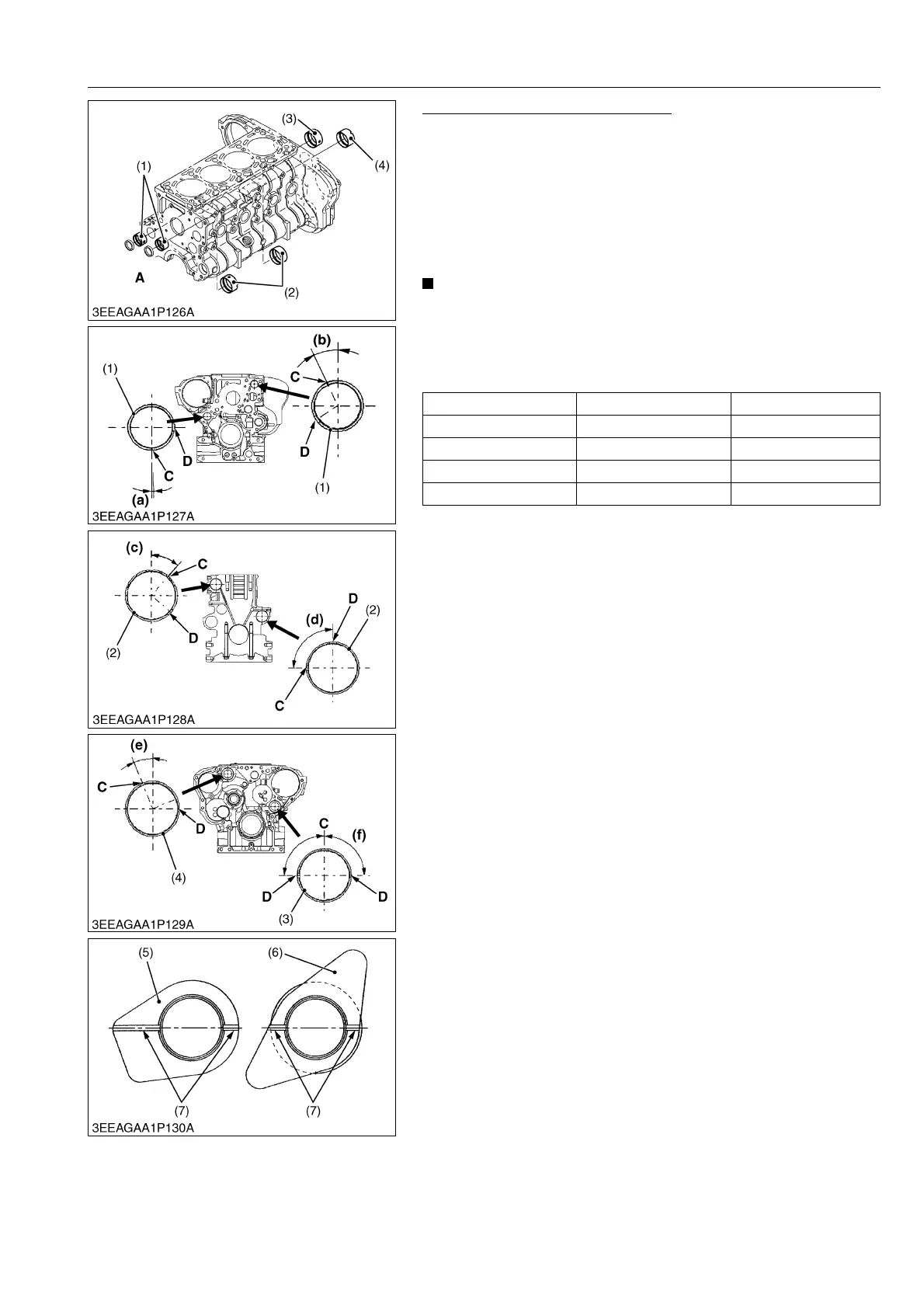

Replacing Balancer Shaft Bearing
1. Remove the used balancer shaft bearings (1), (2), (3) and (4).
2. Set the new bearing to the balancer shaft bearing replacing
tools. (See page G-65.) Confirm that the cut off position of the
bearing (C) matched with the pin of the replacing tool.
3. Install the new bearing from flywheel housing side keeping the
ditch (7) of the replacing tool horizontal.
(The installing order : bearing D (1) → bearing C (2) → bearing
A (4), B (3))
• Be sure to align the oil hole of bearing and crankcase.
Otherwise the balancer shaft may be seized and engine
may get damaged.
• Apply engine oil to the bearing surface.
(Reference)
9Y1210828ENS0104US0
Bearing Code No. Quantity
Bearing A 1G772-26960 1
Bearing B 1G772-26970 1
Bearing C 1G772-26980 2
Bearing D 1G772-26990 2
(1) Bearing D
(for Balancer Shaft 1 and 2)
(2) Bearing C
(for Balancer Shaft 1 and 2)
(3) Bearing B (for Balancer Shaft 2)
(4) Bearing A (for Balancer Shaft 1)
(5) Balancer Shaft 1 Bearing Replacing
Tool (3 kinds of tools available)
(6) Balancer Shaft 2 Bearing Replacing
Tool (3 kinds of tools available)
(7) Ditch
A : Front Cover Side
B : Flywheel Housing Side
C : Cut Off Position of Bearing
D : Oil Hole Position of Bearing
(a) 0.035 rad (2 °)
(b) 0.44 rad (25 °)
(c) 0.72 rad (41 °)
(d) 1.57 rad (90 °)
(e) 0.39 rad (22.5 °)
(f) 1.57 rad (90 °)
