ENGINE
M6060, M7060, WSM
1-S71

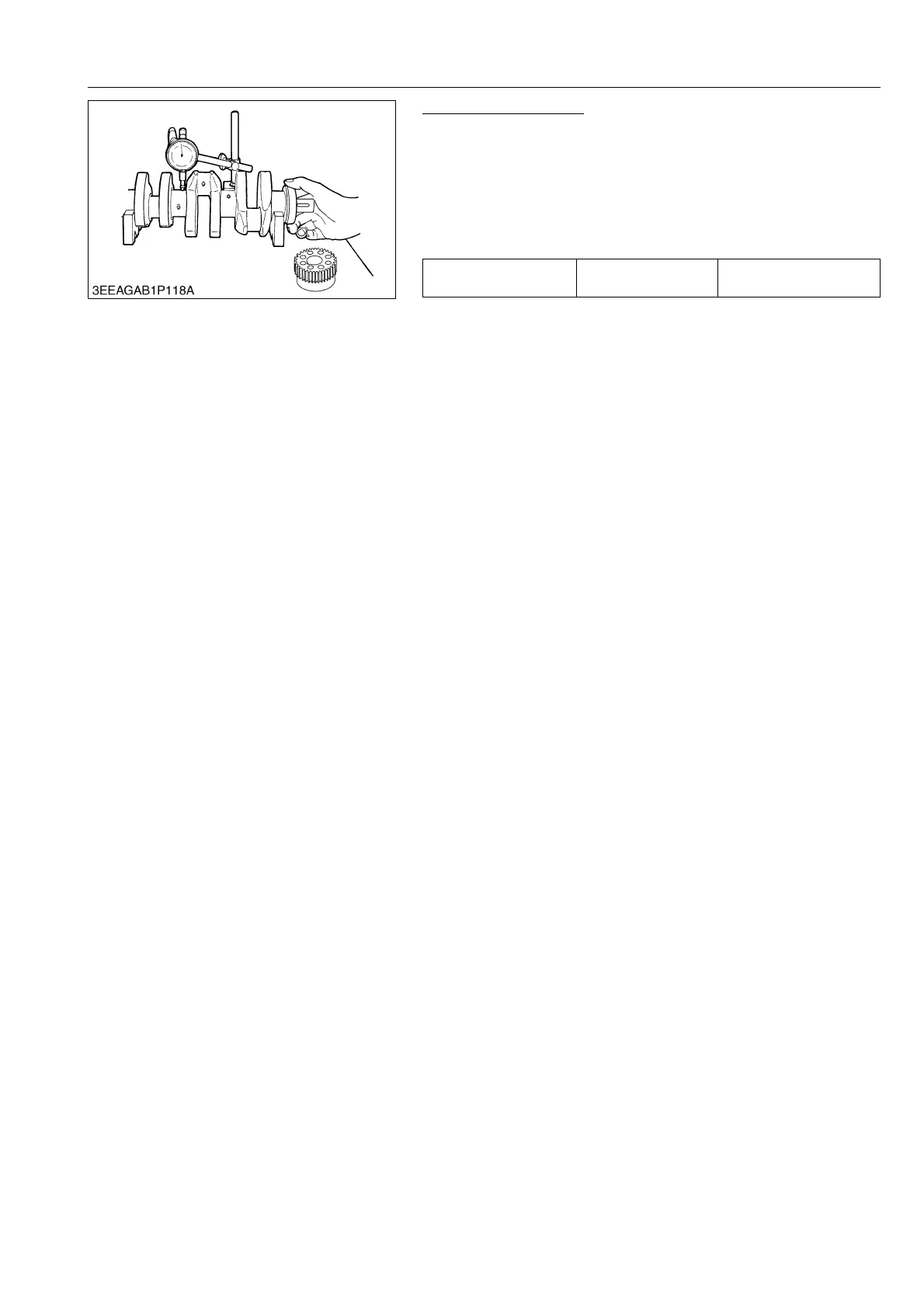

Crankshaft Alignment
1. Hold the 2 end journals of crankshaft with V blocks on the
surface plate.
2. Set a dial indicator with its point on the middle journal.
3. Turn the crankshaft slowly and read the variation on the
indicator. (Half of the measurement)
4. If the measurement is more than the allowable limit, replace the
crankshaft.
9Y1210828ENS0112US0
Crankshaft alignment Allowable limit
0.02 mm
0.0008 in.
