TRANSMISSION
M6060, M7060, WSM
2-S8
(Continued)

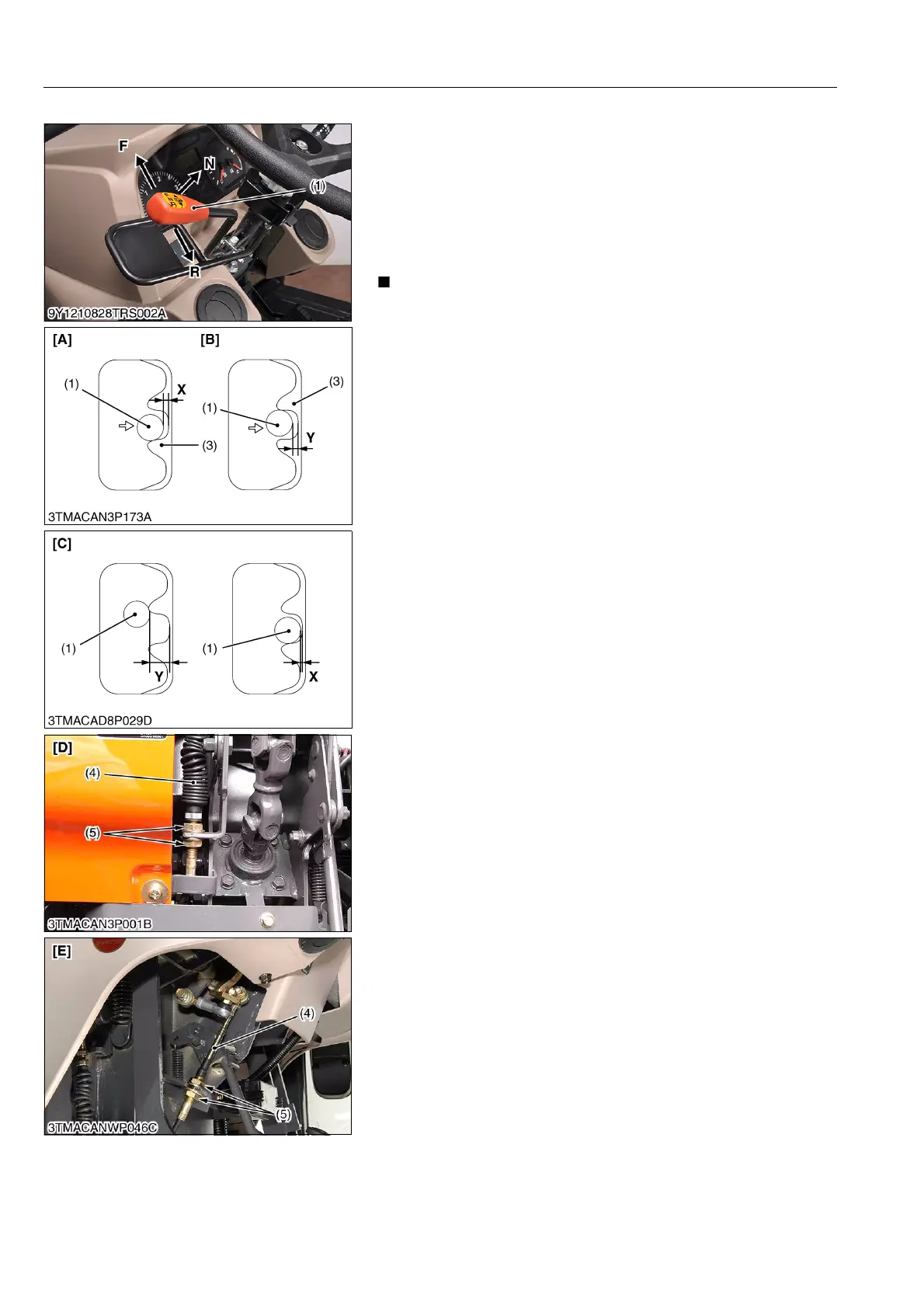

7. Shift the free play "D" toward the forward direction and slowly
lower the shuttle lever as shown in the figure. And visually
inspect the clearance "X".
8. Shift the free play "D" toward the rear direction and slowly lower
the shuttle lever (1) as shown in the figure. And visually inspect
the clearance "Y".
9. Make sure the two clearance "X"and "Y" are just the same, with
shuttle cable retaining nut (5).
• The figure [C] is an example when the length of the shuttle
cable (4) is misadjusted.
9Y1210828TRS0003US0
(1) Shuttle Lever
(2) Steering Post Cover
(3) Shuttle Lever Guide
(4) Shuttle Cable
(5) Retaining Nut
[A] When the shuttle lever shift to
forward.
[B] When the shuttle lever shift to
reverse.
[C] The cable is misadjusted
[D] ROPS Model
[E] CABIN Model
To Next Page
