TRANSMISSION
M6060, M7060, WSM
2-S14

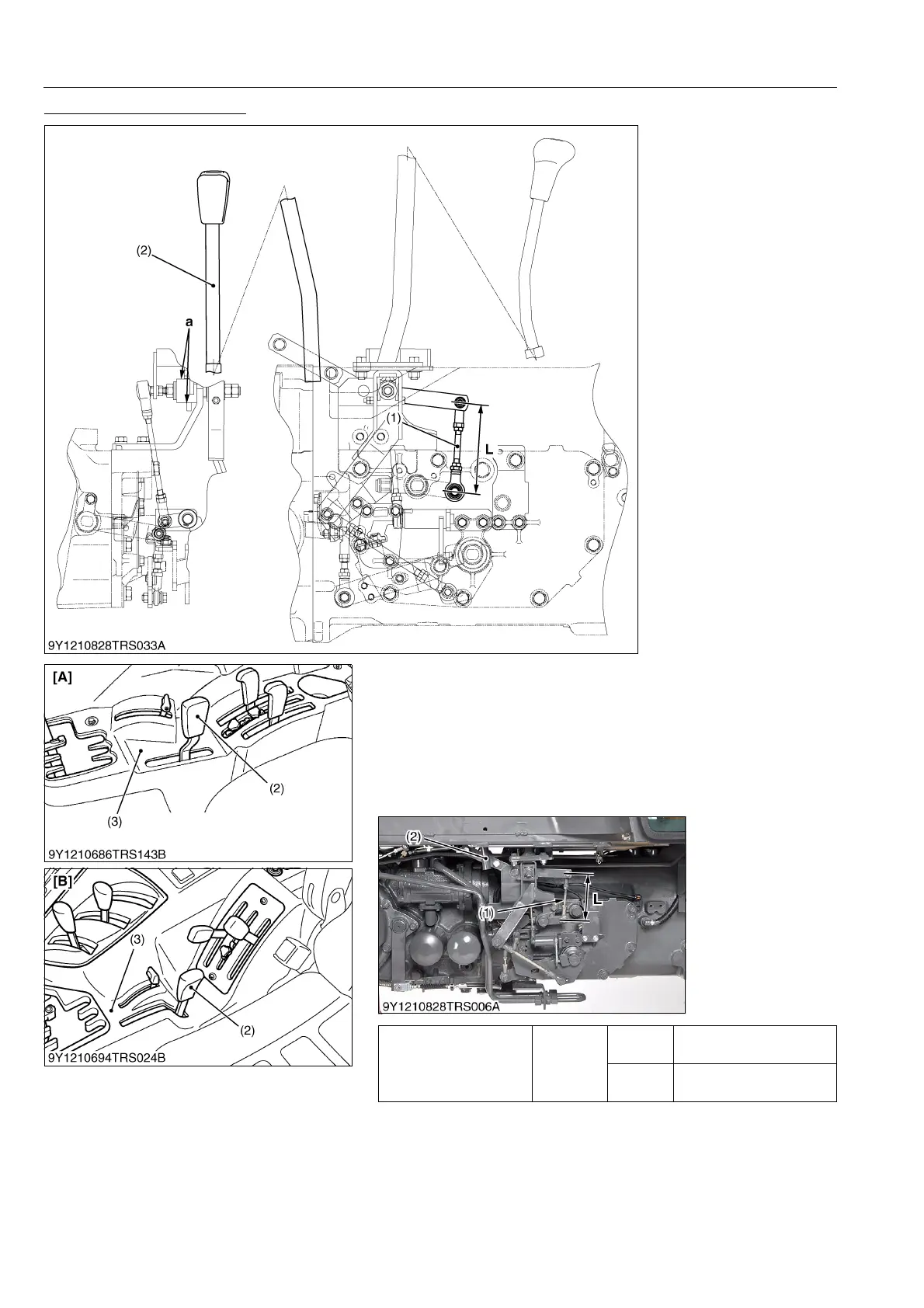

Adjusting Range Gear Shift
1. Make sure there is sufficient grease applied to the sliding
position "a".
2. Adjust the range gear shift lever (2) not to contact with the lever
guide (3).
3. When you shift the range gear shift lever (2) in all position, be
sure that there is no interference between the range gear shift
lever (2) and lever guide.If it is not, adjust the range gear shift
rod (1).
9Y1210828TRS0009US0
(1) Range Gear Shift Rod
(2) Range gear Shift Lever
(3) Lever Guide
L : Length of the Range Gear
Shift Rod
a : Sliding Position
[A] ROPS Model
[B] CABIN Model
Length of range gear
shift rod "L"
Reference
value
ROPS
Model
92 mm
3.6 in.
CABIN
Model
129 mm
5.08 in.
