TRANSMISSION
M6060, M7060, WSM
2-S23
Rear Wheel and Fuel Tank
1. Place the disassembling stand under the transmission case.
2. Remove the left rear wheel.
3. Place the disassembling stand under the rear axle case.
4. Remove the fuel sensor 2P connector (1).
5. Remove the fuel hose cover (2).
6. Remove the both fuel tank band (3).
7. Draw out the fuel tank and disconnect the breather hose (4) and
(5).
8. Disconnect the fuel hose (6) and return hose (7).
(When reassembling)
• Be sure to connect the fuel sensor connector.
• Be sure to fix the fuel hoses and breather hose.
9Y1210828TRS0023US0
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft

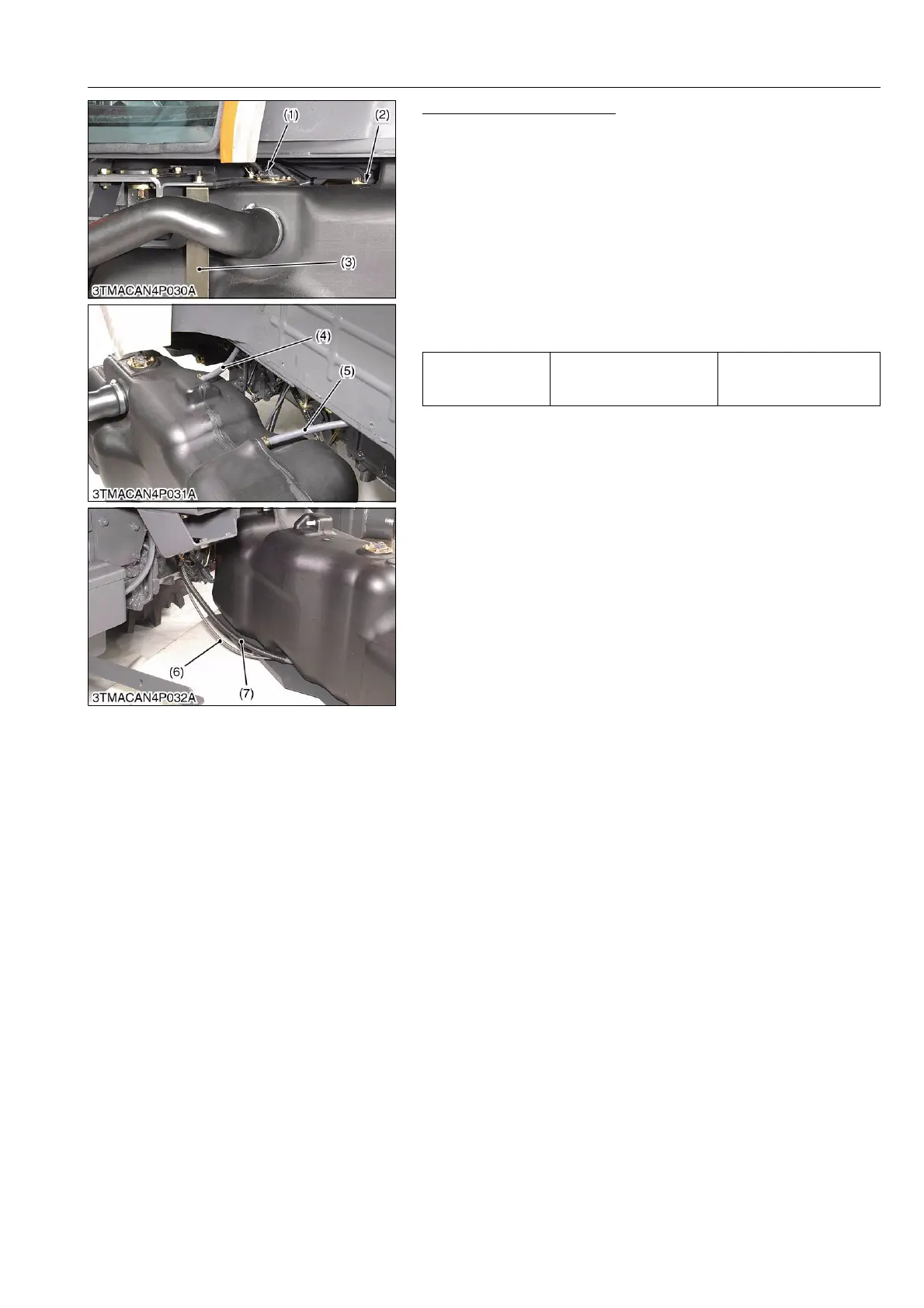

(1) Fuel Sensor 2P Connector
(2) Fuel Hose Cover
(3) Fuel Tank Band
(4) Breather Hose (Front)
(5) Breather Hose (Rear)
(6) Fuel Hose
(7) Fuel Return Hose
