TRANSMISSION
M6060, M7060, WSM
2-S47

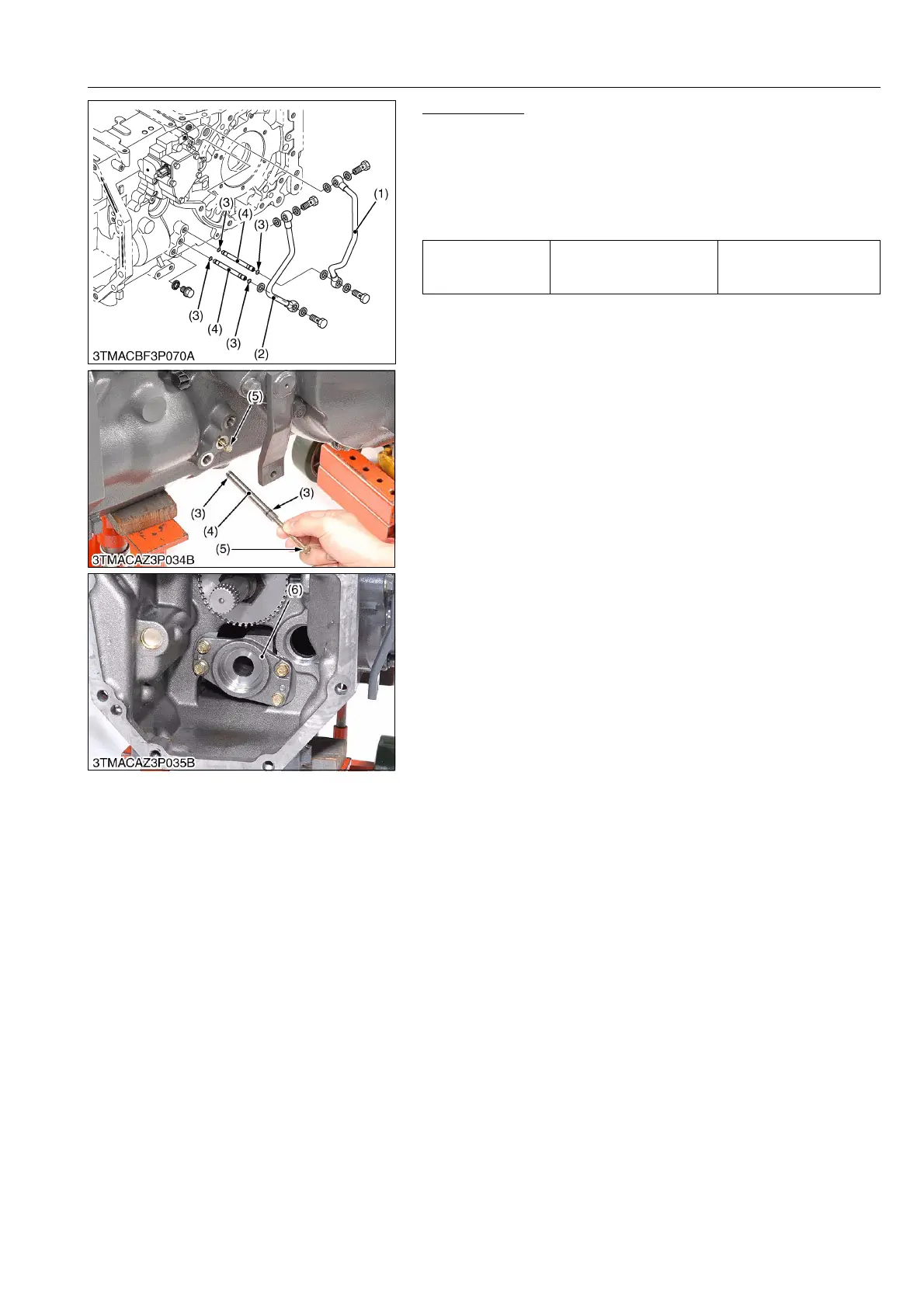

Clutch Holder
1. Remove the hydraulic pipes (1) and (2).
2. Pull out the pipes (4) using the M6 × P1.0 screw (6) as shown
photo.
3. Remove the clutch holder (6).
(When reassembling)
• Apply oil to the O-rings (3).
9Y1210828TRS0073US0
Tightening torque
Joint screw for hydraulic
pipe
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
(1) Hydraulic Pipe (2WD)
(2) Hydraulic Pipe (4WD)
(3) O-ring
(4) Pipe
(5) M6 × P1.0 Screw
(6) Clutch Holder
KiSC issued 08, 2013 A
