REAR AXLE
M6060, M7060, WSM
3-M1
1. FEATURES
The rear axles are the final mechanism which transmit power from the transmission to the rear wheels. Direction
of power transmitted is changed at a right angle by the differential gear (10) and, at the same time, speed is reduced.
It is further reduced by the planetary gear to drive the rear axles.
The rear axles (1) are semi-floating type with the ball bearing between the rear axle (1) and rear axle case (2),
which support the rear wheel load as well as transmitting power to the rear wheel. They withstand all the forces
caused by tire rotation and side skidding.
9Y1210828RAM0001US0

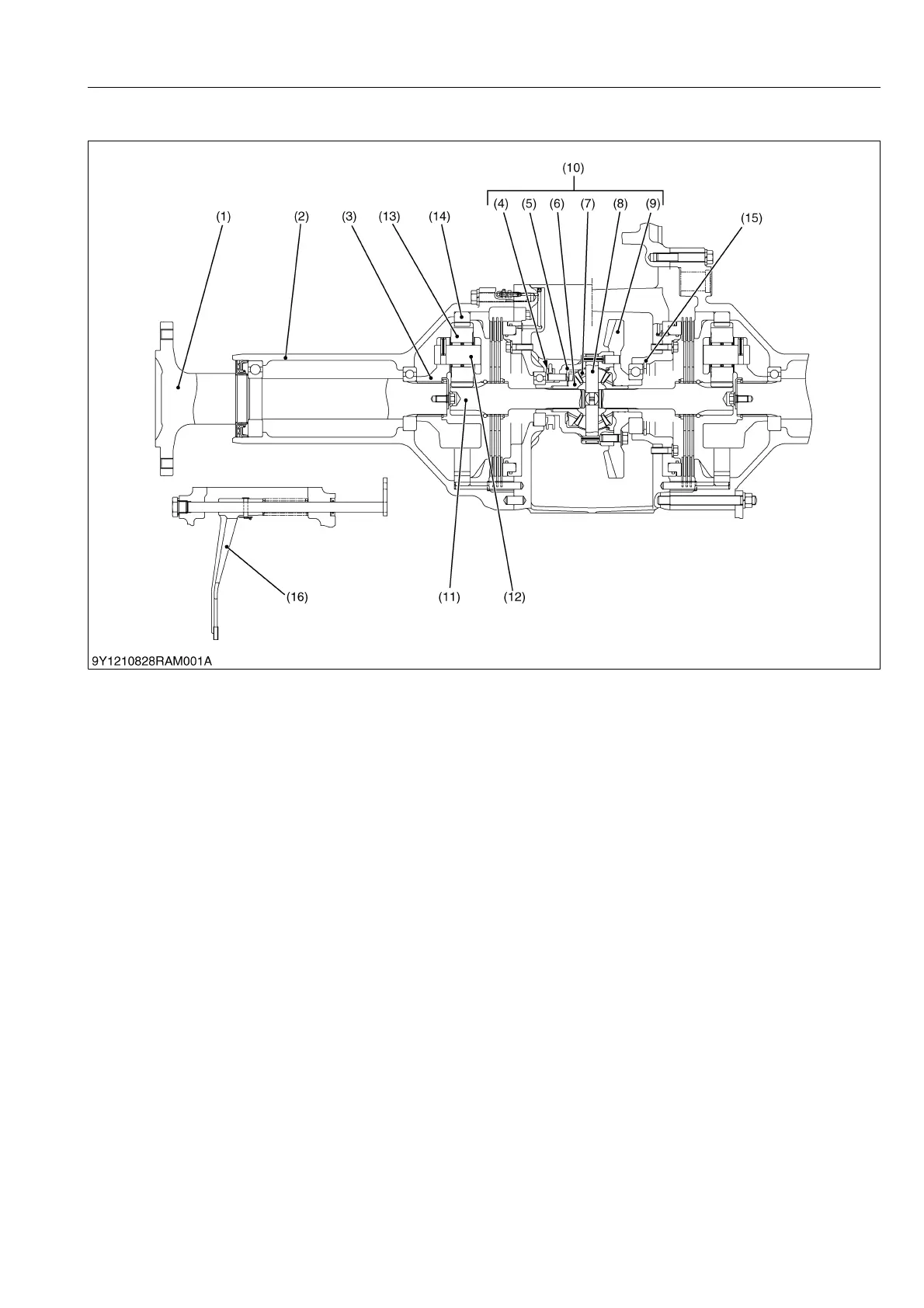

(1) Rear Axle
(2) Rear Axle Case
(3) Planetary Gear Support
(4) Differential Lock Shifter
(5) Differential Case
(6) Differential Side Gear
(7) Differential Pinion Gear
(8) Differential Pinion Shaft
(9) 35T Bevel Gear
(10) Differential Gear
(11) Brake Shaft (12T Gear)
(12) Planetary Gear Pin
(13) 27T Planetary Gear
(14) 66T Internal Gear
(15) Differential Bearing Support
(16) Differential Lock Shift Fork
