REAR AXLE
M6060, M7060, WSM
3-S14

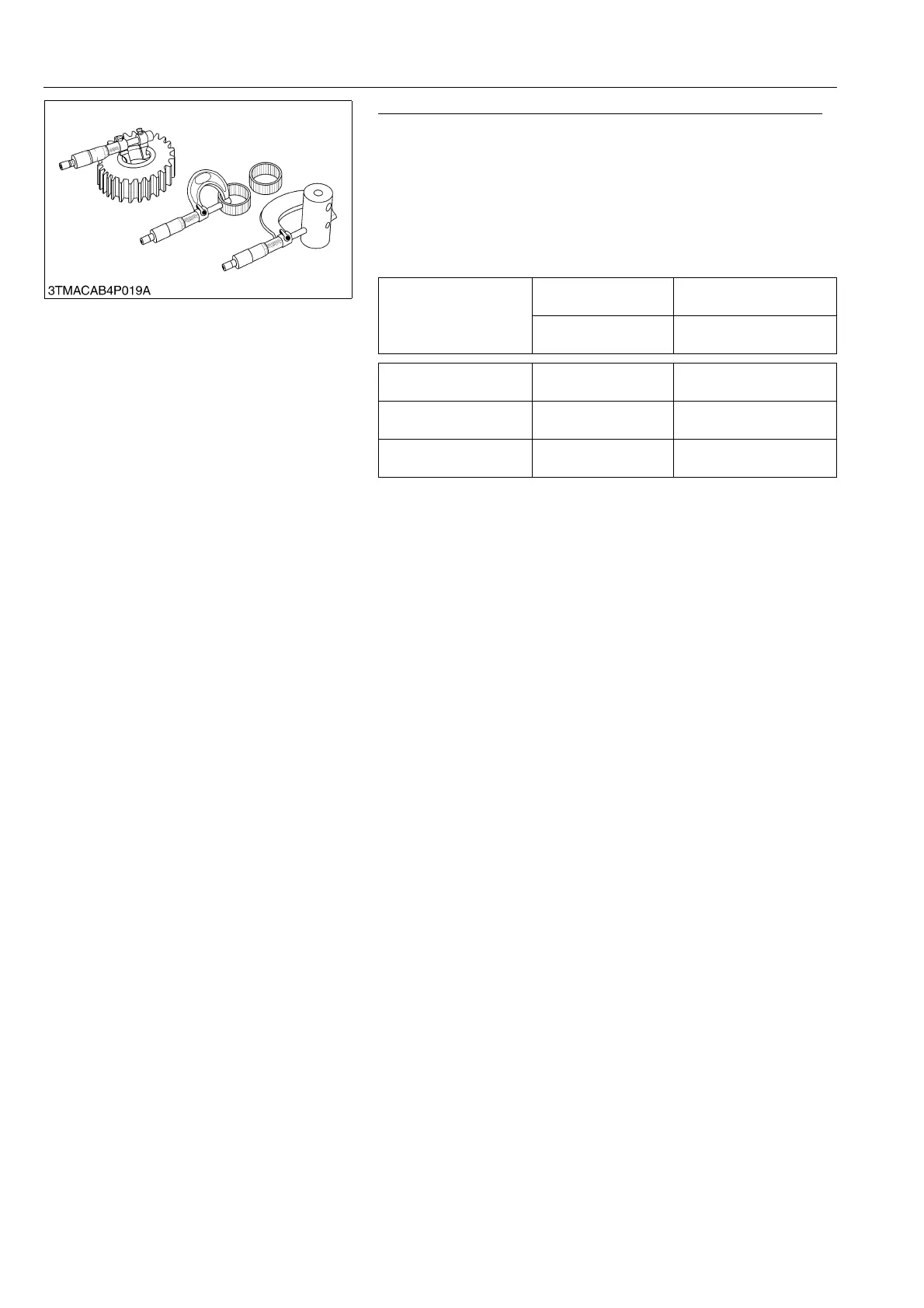

Clearance between Planetary Gear and Planetary Gear Shaft
1. Measure the planetary gear shaft O.D. (rubbing surface).
2. Measure the planetary gear I.D. (rubbing surface).
3. Measure the O.D. of the two needles installed diagonally in the
needle bearing.
4. Calculate the clearance.
5. (Clearance = Planetary gear I.D. − {(2 × Needle O.D.) +
Planetary gear shaft O.D.}).
6. If the clearance exceeds the allowable limit, replace them.
9Y1210828RAS0024US0
Clearance between
planetary gear and
planetary gear shaft
Factory specification
0.0090 to 0.048 mm
0.00036 to 0.0018 in.
Allowable limit
0.3 mm
0.01 in.
Planetary gear shaft
O.D.
Factory specification
29.991 to 30.000 mm
1.1808 to 1.1811 in.
Planetary gear I.D. Factory specification
42.009 to 42.025 mm
1.6539 to 1.6545 in.
Needle O.D. Factory specification
5.994 to 6.000 mm
0.2360 to 0.2362 in.
KiSC issued 08, 2013 A
