FRONT AXLE
M6060, M7060, WSM
5-S7

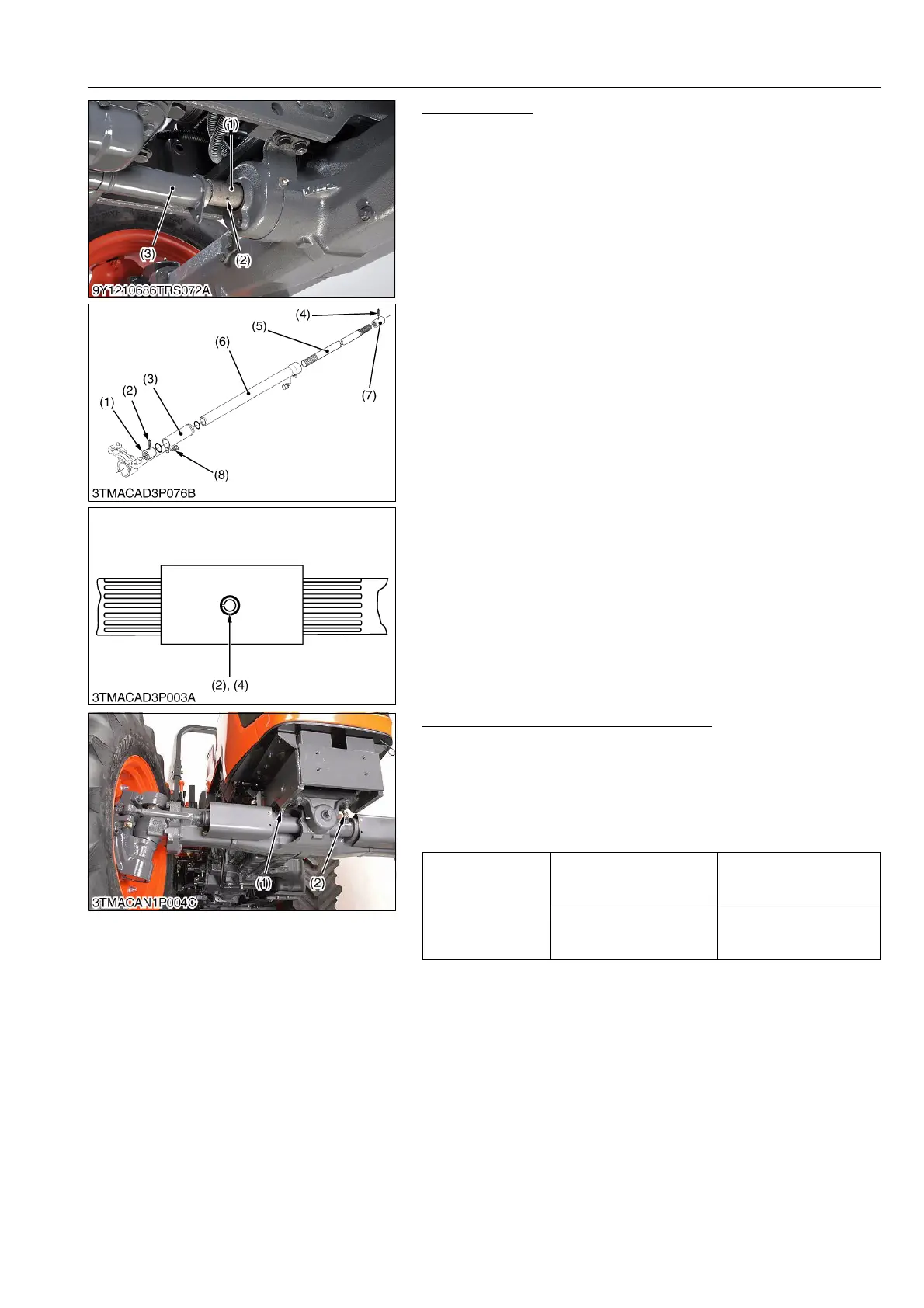

Propeller Shaft
1. Slide the propeller shaft cover (3) after removing the screw (8).
2. Tap out the roll pins (2) and then slide the coupling (1) to the
rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft (5) and pinion
shaft.
• Tap in the roll pins (2) as shown in figure.
9Y1210828ENS0023US0
Front Wheel and Power Steering Hoses
1. Check the front axle and engine are securely mounted on the
disassembly stand.
2. Remove the front wheel.
3. Lift the front axle and remove the front wheels.
4. Disconnect the power steering hoses (1), (2).
(When reassembling)
9Y1210828FAS0009US0
(1) Coupling
(2) Roll Pin
(3) Propeller Shaft Cover
(4) Roll Pin
(5) Propeller Shaft
(6) Cover
(7) Coupling
(8) Screw
Tightening torque
Power steering hose
retaining nut
23 to 27 N·m
2.3 to 2.8 kgf·m
17 to 20 lbf·ft
Front wheel mounting nut
(M16)
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
(1) Power Steering Hose 1 (2) Power Steering Hose 2
