Thrust Collar Thickness

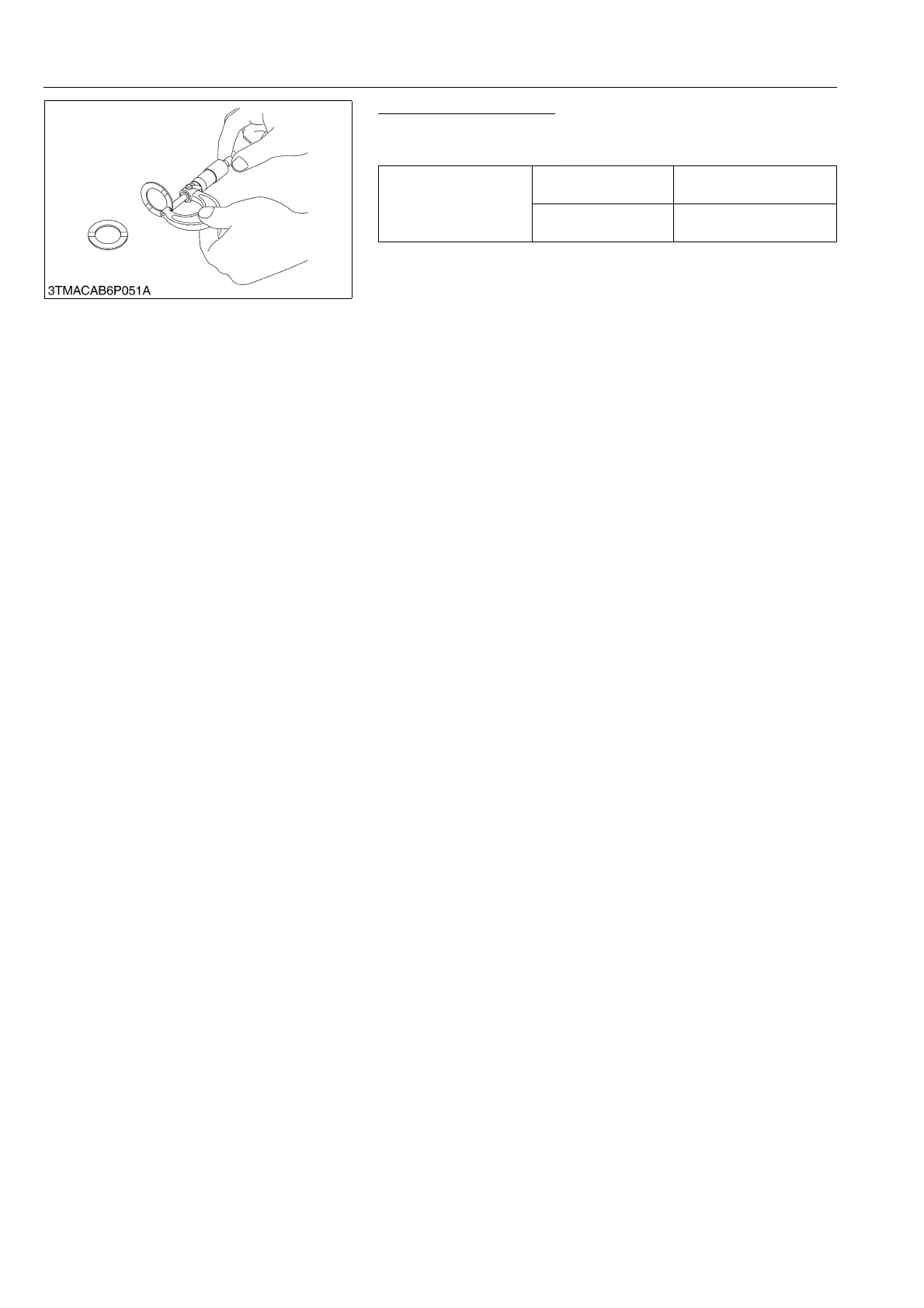

1. Measure the thickness of the thrust collar.
2. If the measurement is less than the allowable limit, replace it.
9Y1210828FAS0038US0
Thrust collar thickness
Factory specification
0.75 to 0.85 mm
0.030 to 0.033 in.
Allowable limit
0.5 mm
0.02 in.
