STEERING
M6060, M7060, WSM
6-S9

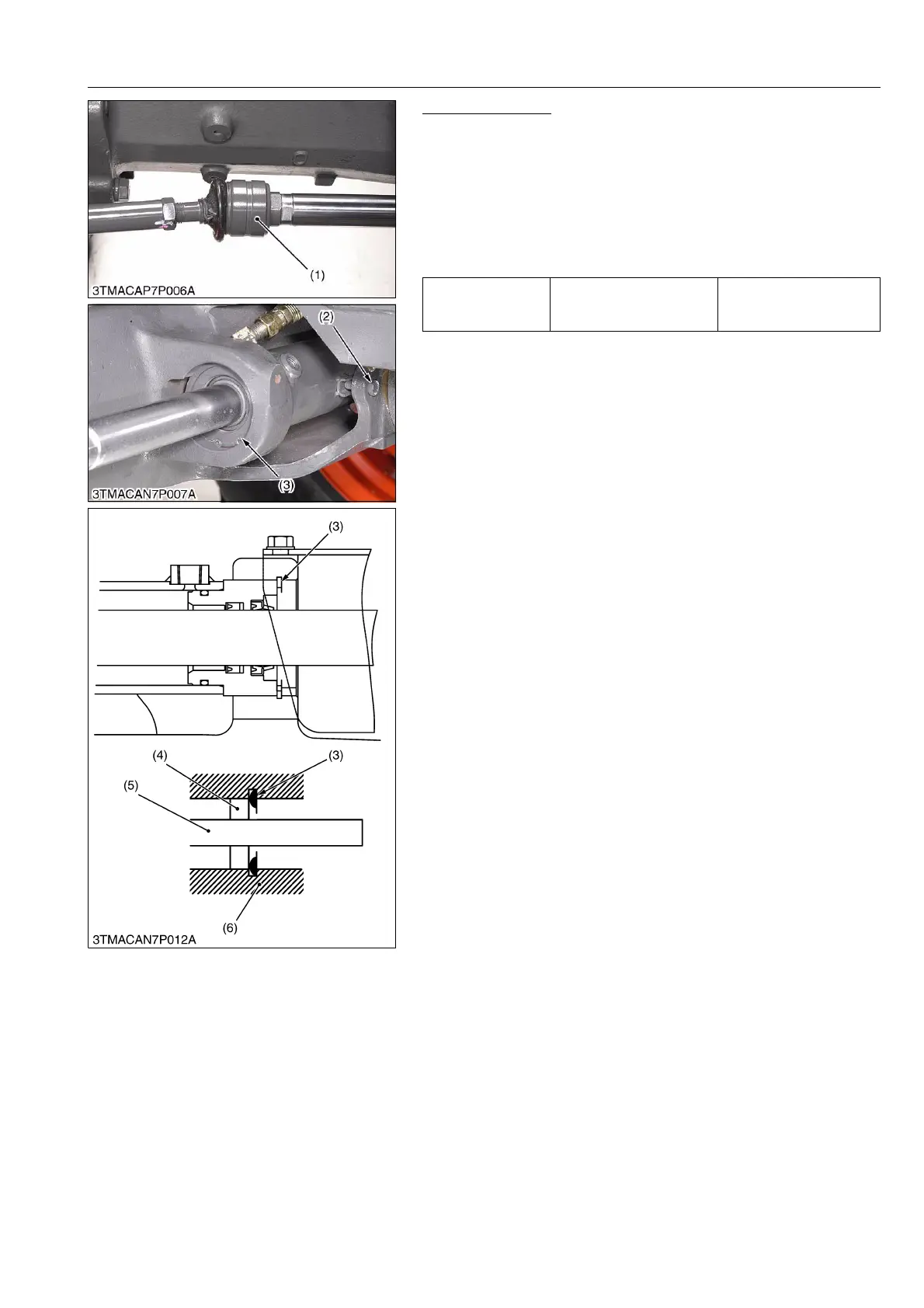

Steering Cylinder
1. Remove the both tie-rod joints (1).
2. Remove the internal circlip (3) and set screw (2).
3. Draw out the steering cylinder to the right.
(When reassembling)
• Apply liquid lock (Three Bond 1324B or equivalent) to the tie-rod
joint.
• When reassembling internal circlip (3), should be set so that
sharp edge face to outward as shown in the figure.
9Y1210828STS0012US0
Tightening torque Tie-rod joint
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
(1) Tie-rod Joint
(2) Set Screw
(3) Internal Circlip
(4) Cylinder
(5) Cylinder Rod
(6) Front Axle Case
To Next Page
