HYDRAULIC SYSTEM
M6060, M7060, WSM
7-S15
Position and Draft Control Lever Operating Force
1. Check the position and draft control lever operating force.
2. If measurement is not within the factory specification, adjust the
force with tightening nuts (3).
9Y1210828HYS0013US0
Operating force for
position and draft control
lever
Factory specification
20 to 50 N
2.1 to 5.0 kgf
4.5 to 11 lbf

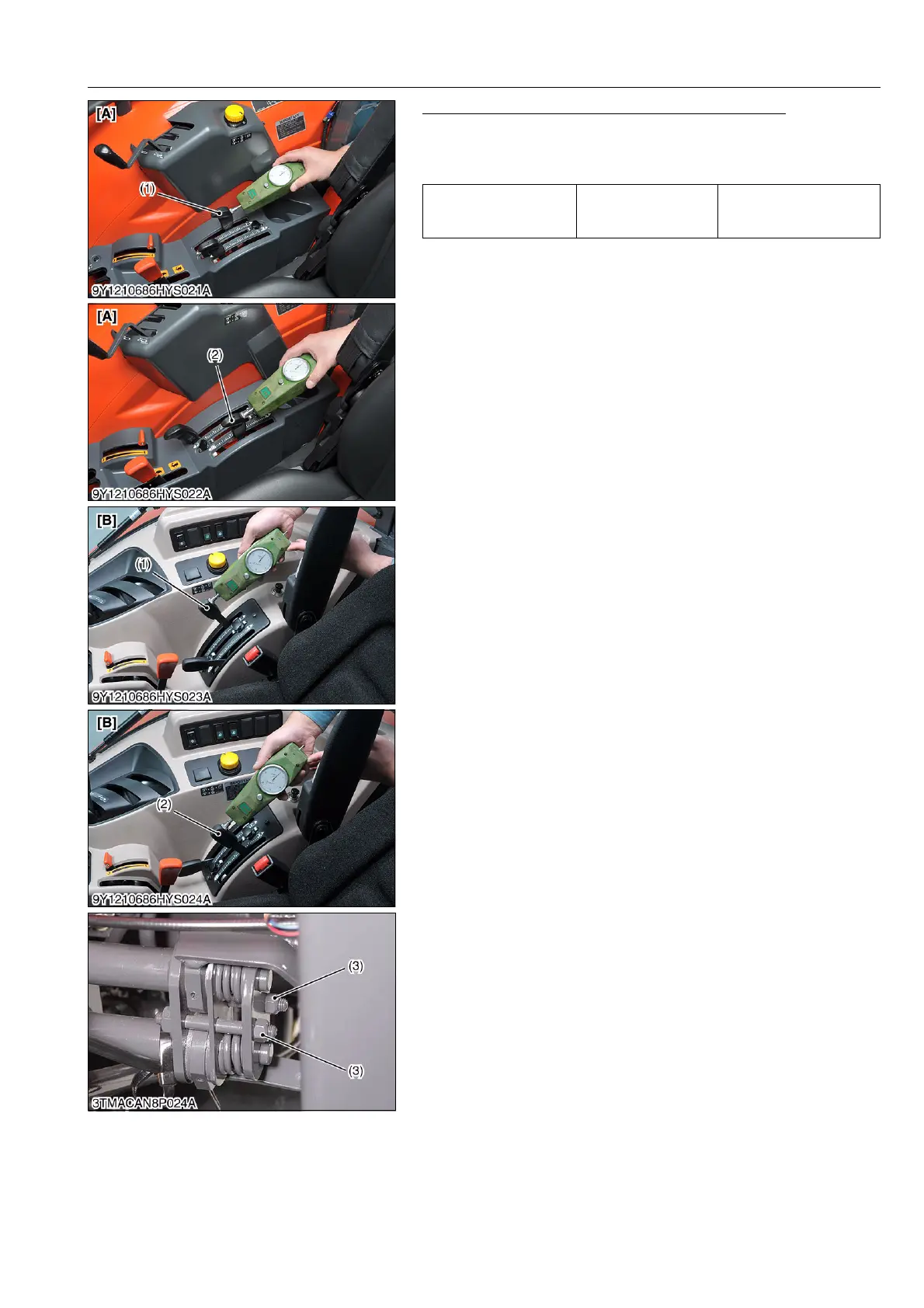

(1) Position Control Lever
(2) Draft Control Lever
(3) Nut
[A] ROPS Model
[B] CABIN Model
