GENERAL
M6060, M7060, WSM
G-24
Checking Wheel Mounting Nuts Tightening Torque
• Never operate tractor with a loose rim, wheel, or axle.
• Any time bolts and nuts are loosened, retighten to
specified torque.
• Check all bolts and nuts frequently and keep them tight.
1. Check the wheel mounting nuts regularly especially when new.
If there are loosened, tighten as follows.
Disc : Manufactured by TITAN INTERNATIONAL INC.
Disc : Other manufactured
9Y1210828GEG0015US0
Checking Tie-rod Dust Cover
1. Check to see that the dust covers are not damaged.
2. If the dust covers are damaged, replace the new ones.
• If the dust covers are cracked, water and dust invade into
the tie-rod and it will be early wear.
9Y1210828GEG0016US0
Tightening
torque
Front wheel mounting
nut
M16
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
Rear wheel mounting nut M16
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
Tightening
torque
Front disc mounting nut
(waffle wheel)
M16
298 to 366 N·m
30.4 to 37.3 kgf·m
220 to 270 lbf·ft
Front disc mounting nut
(Except waffle wheel)
M16
244 N·m
24.9 kgf·m
180 lbf·ft
Rear disc mounting nut
(steel disc)
M16
244 N·m
24.9 kgf·m
180 lbf·ft
Rear disc mounting nut
(cast iron disc)
M16
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
Tightening
torque
Front and rear disc
mounting nut (Both steel
disc and cast iron disc)
M16
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft

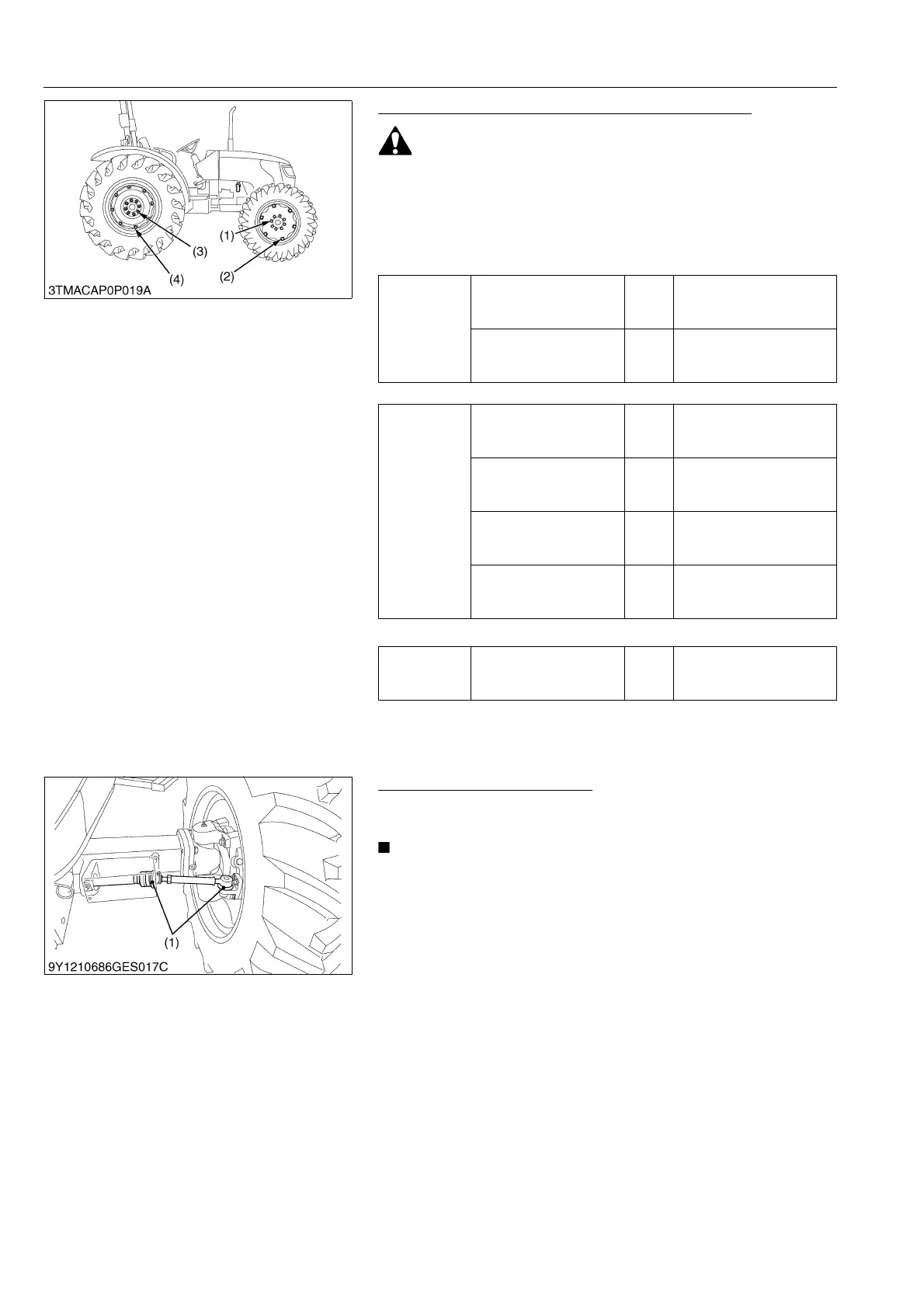

(1) Front Wheel Mounting Nut
(2) Front Disc Mounting Nut
(3) Rear Wheel Mounting Nut
(4) Rear Disc Mounting Nut
(1) Dust Cover
