HYDRAULIC SYSTEM
M6060, M7060, WSM
7-S32

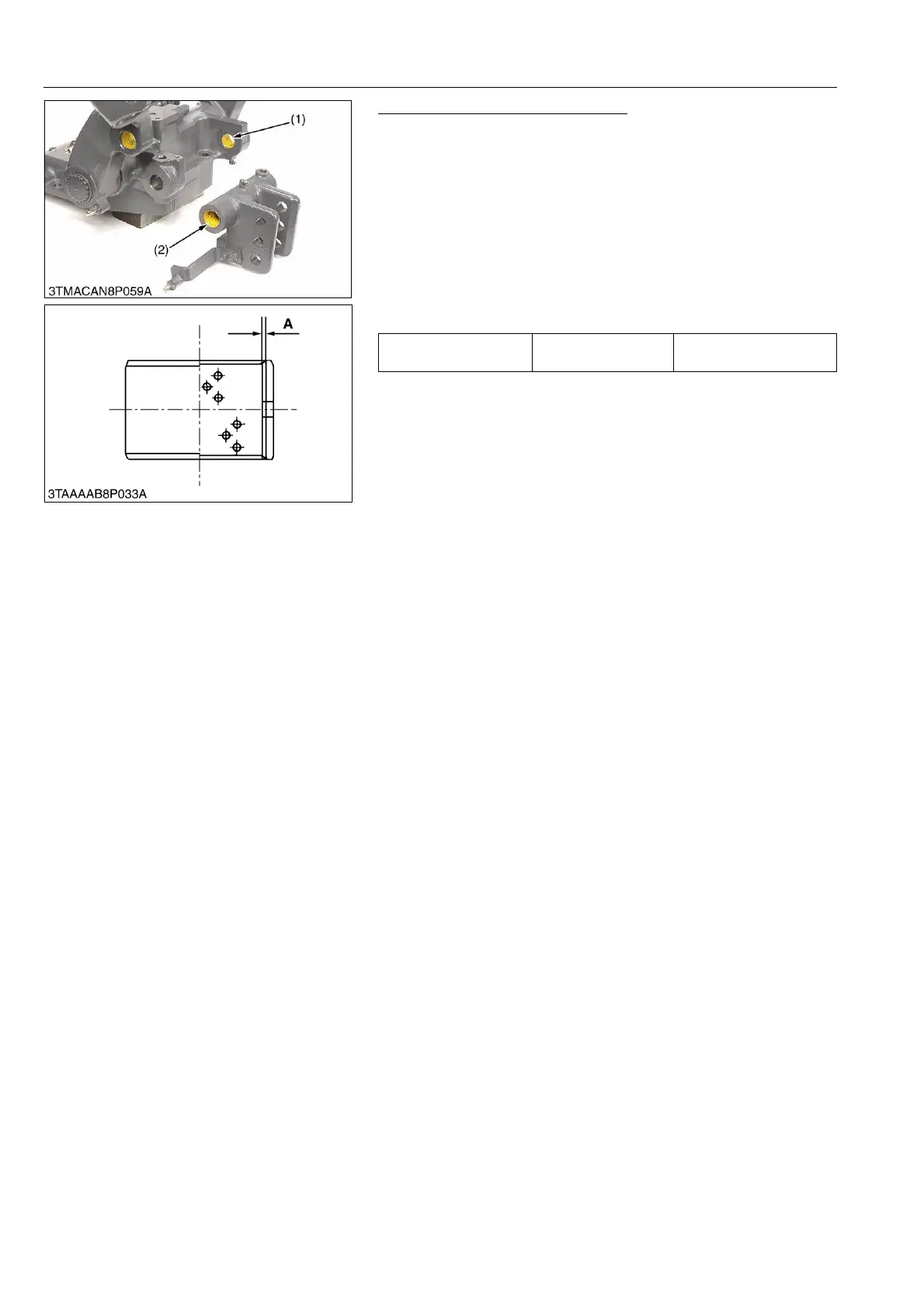

Torsion Bar and Top Link Bracket
1. Visually inspect the DX bushings for signs of wear or damage.
(The DX bushing tends to show concentrated wear.)
2. If the DX bushing is worn beyond the alloy portion (A), replace it.
(When installing)
• When press-fitting a new bushing, apply transmission fluid to
the bushing press in position.
• When press-fitting a new bushing of top link bracket, the seam
of bushing face to rear.
• When press-fitting a new bushing of torsion bar, the hole of
bushing face lower to align with grease pass.
(Reference)
9Y1210828HYS0039US0
Torsion Bar Bushing Alloy thickness (A)
0.57 mm
0.0224 in.
(1) Torsion Bar Bushing
(2) Top Link Bracket Bushing
A : Alloy Thickness
To Next Page
