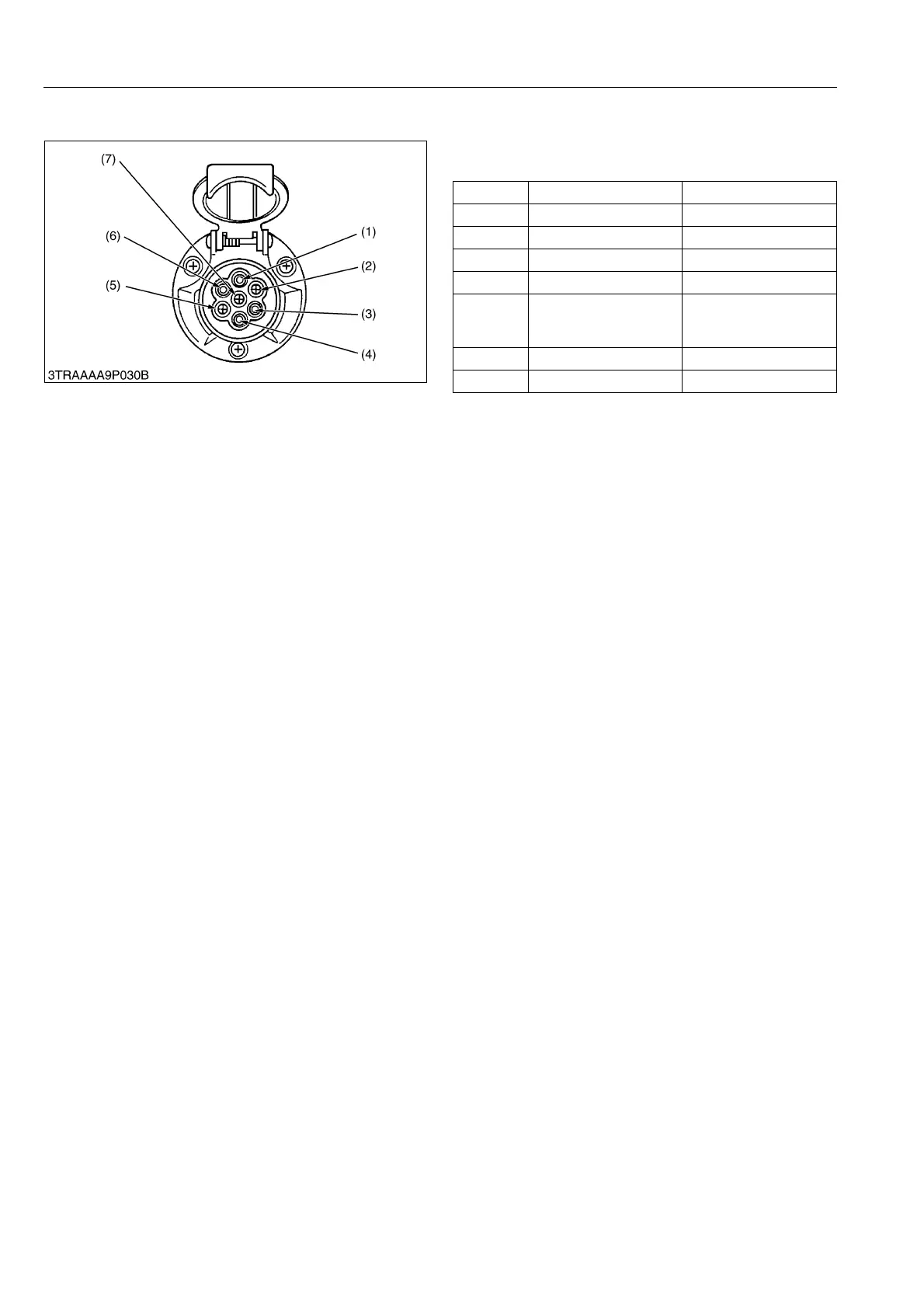

5. TRAILER SOCKET
The trailer socket is provided to take out the
electrical power from tractor to trailer or implement.
9Y1210828ELM0023US0
Terminal Function Color of wire harness
(1) Turn signal light (L.H.) Green / White
(2) – –
(3) Ground Black
(4) Turn signal light (R.H.) Red / White
(5)
Tail light
Sidemarker light
Parking light
Yellow / Red
(6) Brake stop light Yellow
(7) Number plate light Yellow / White
(1) Terminal 1
(2) Terminal 2
(3) Terminal 3
(4) Terminal 4
(5) Terminal 5
(6) Terminal 6
(7) Terminal 7
