ELECTRICAL SYSTEM
M6060, M7060, WSM
8-S54

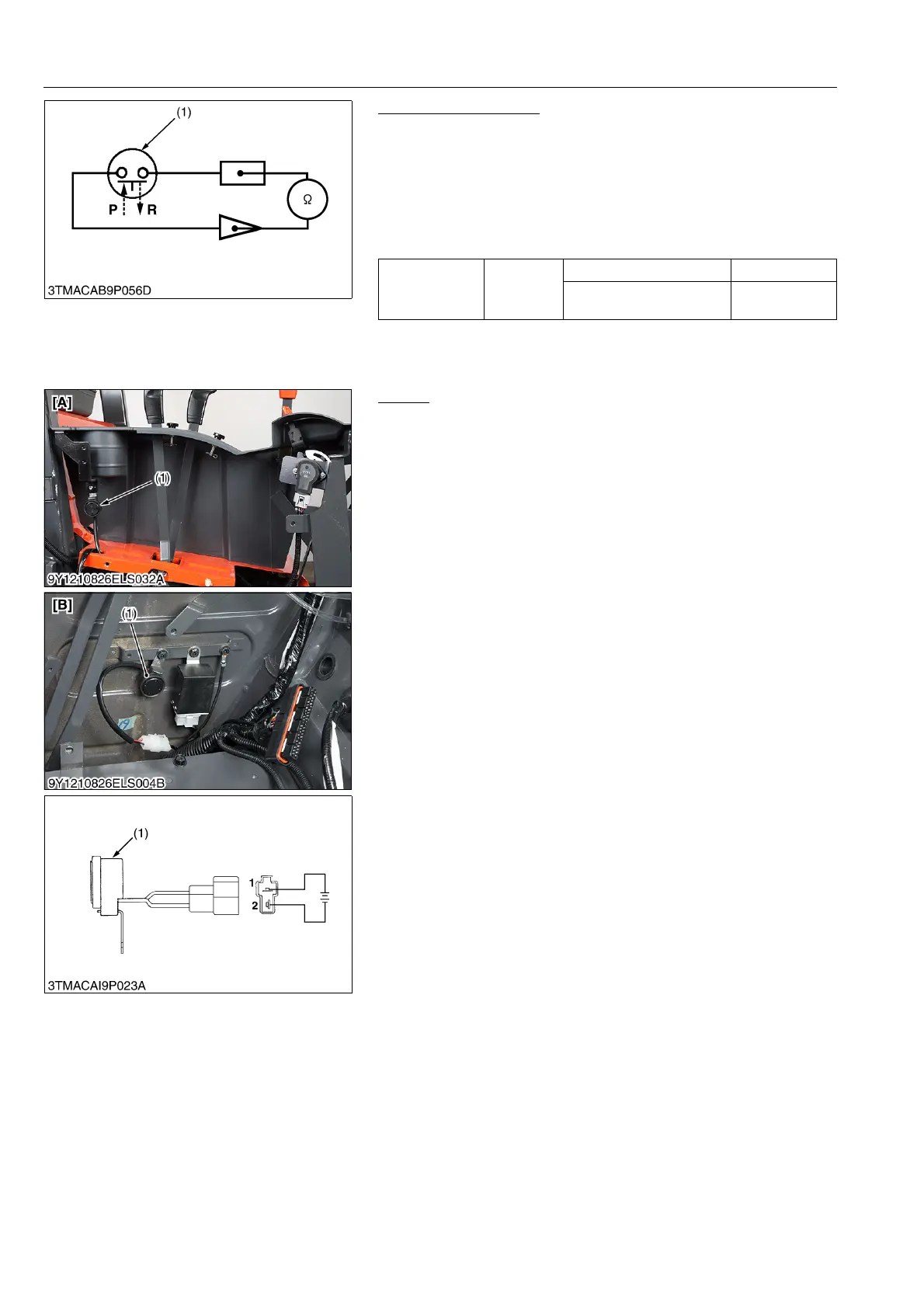

Checking Seat Switch
1. Disconnect the connector from the cabin wire harness.
2. Check the continuity with an ohmmeter across the switch
terminals.
3. If it does not conduct or any value is indicated when the switch
is pushed (ON seat), the switch is faulty.
4. If infinity is not indicated when the switch is released (OFF seat),
the switch is faulty.
9Y1210828ELS0099US0
Buzzer
1. Remove the buzzer (1).
2. Connect the jumper lead across the battery positive terminal
and terminal 1 of connector.
3. Connect the jumper lead across the battery negative terminal
and terminal 2 of connector.
4. If the buzzer does not whistle, replace it.
9Y1210828ELS0100US0
Resistance
(Across switch
terminals)
Reference
value
When switch is pushed "P" 0 Ω
When switch is released
"R"
Infinity
(1) Seat Switch P: Pushed
R: Released
(1) Buzzer [A] ROPS Model
[B] CABIN Model
