CABIN
M6060, M7060, WSM
9-S9

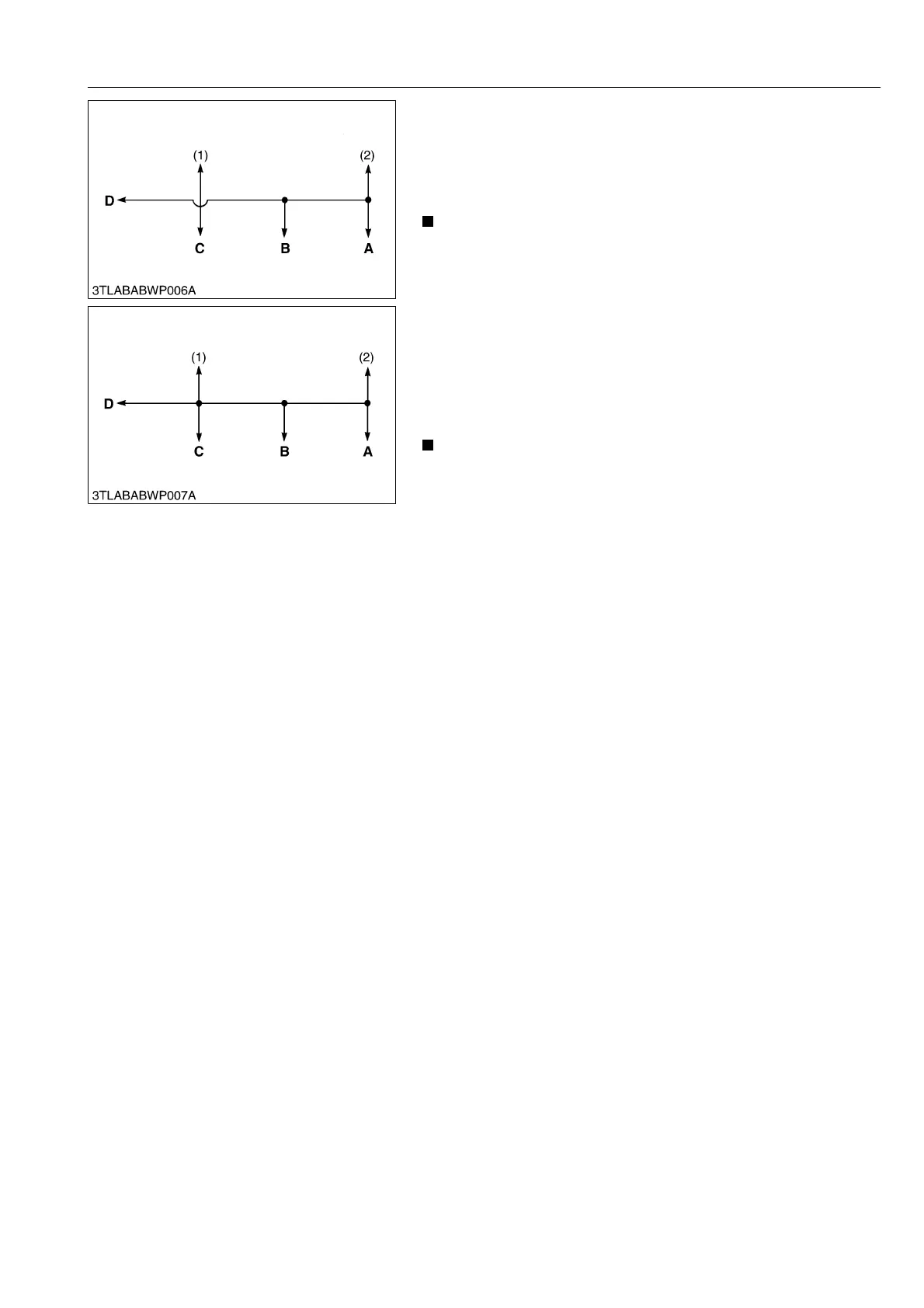

 When LO Valve is Closed and HI Valve is Opened
Two circuits are established.
Port (C) → LO pressure gauge (1)
→ Port (B)
→ Port (D) (Schrader valve must be opened)
Port (A) → HI pressure gauge (2)
NOTE
• Schrader valve (D) must be opened.
9Y1210828CAS0008US0
 When LO and HI Valve is Opened
Two circuits are established.
Port (A) → HI pressure gauge (2)
→ LO pressure gauge (1)
→ Port (B)
→ Port (C)
→ Port (D) (Schrader valve must be opened)
NOTE
• Schrader valve (D) must be opened.
9Y1210828CAS0009US0
