CABIN
M6060, M7060, WSM
9-S17
Faulty Compression of Compressor
1. Symptoms seen in refrigerating cycle
• LO pressure side (1):
0.40 to 0.58 MPa (4.0 to 6.0 kgf/cm
2
, 57 to 85 psi)
• HI pressure side (2):
0.69 to 0.98 MPa (7.0 to 10 kgf/cm
2
, 100 to 140 psi)
2. Probable cause
• Leak in compressor.
3. Solution
• Replace compressor. (See page 9-S45.)
NOTE

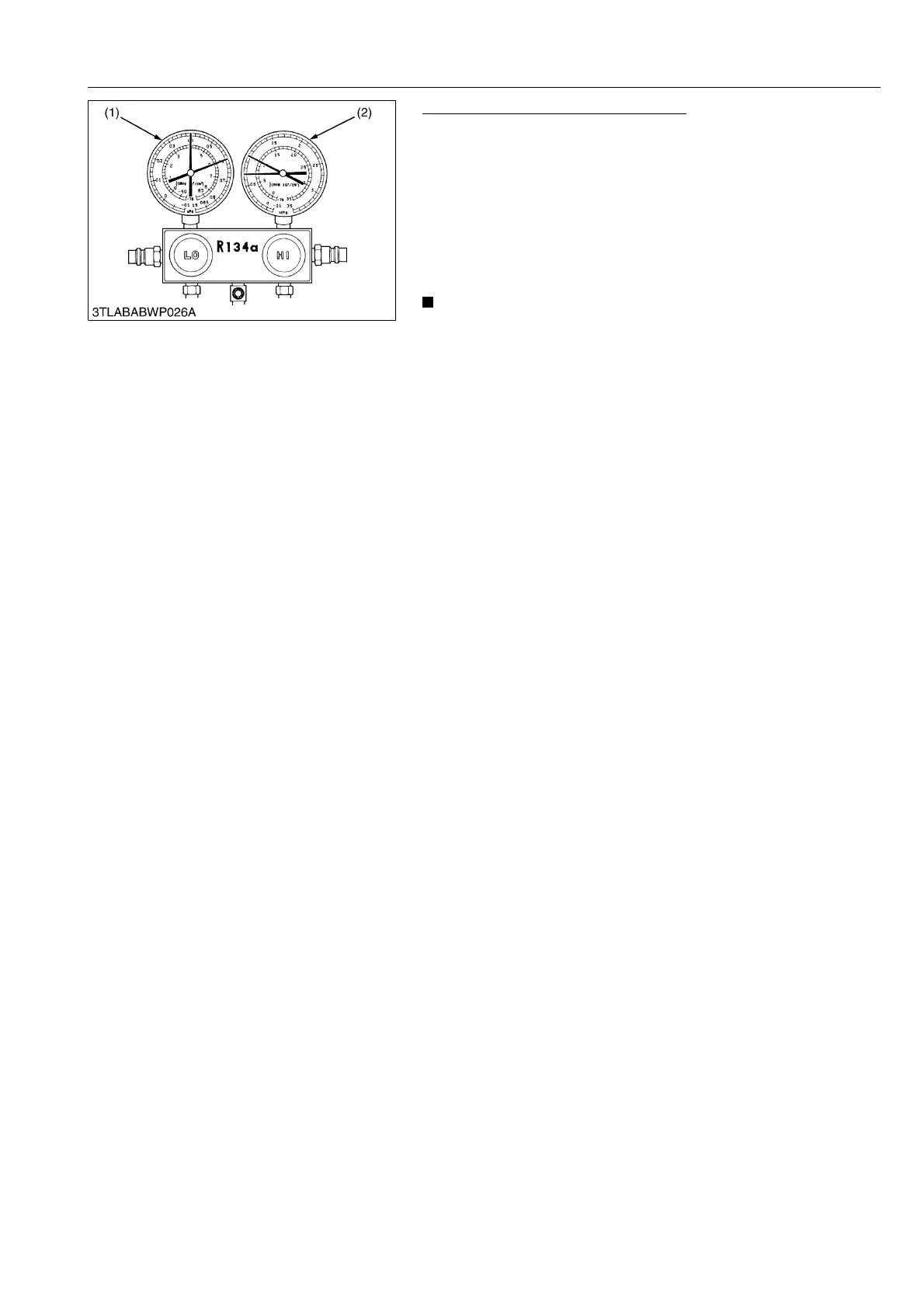

• Manifold gauge indications (left side figure) at faulty
compressing by compressor.
9Y1210828CAS0025US0
(1) LO Pressure Side (2) HI Pressure Side
KiSC issued 08, 2013 A
