CABIN
M6060, M7060, WSM
9-S47

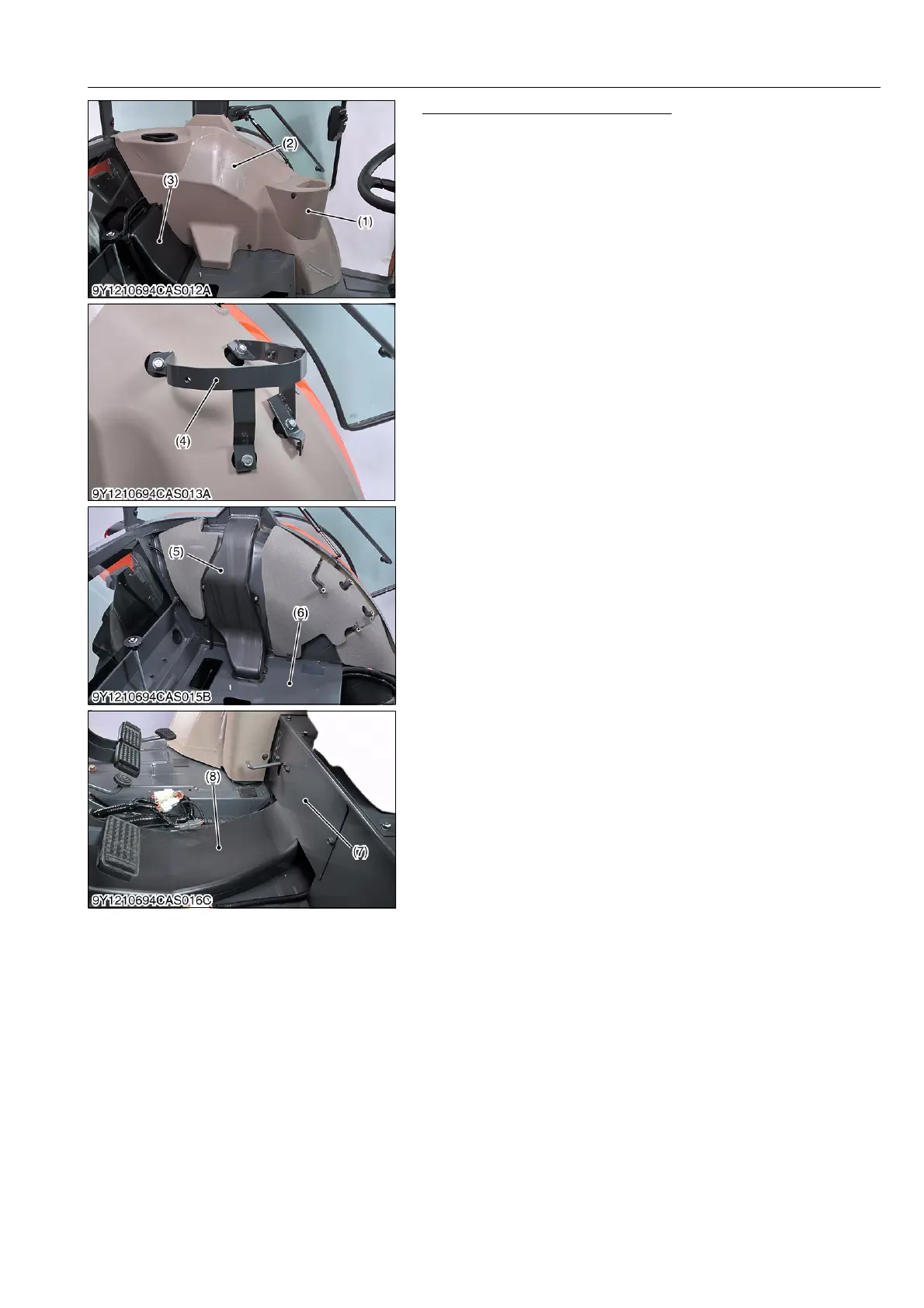

Air Conditioner Ducts and Covers
1. Remove the holder cover (1).
2. Remove the holder cover stay (4).
3. Remove the inner cover (2).
4. Remove the duct 1 (3).
5. Remove the duct 2 (5).
6. Remove the seat under cover 1 (6).
7. Remove the seat under cover 2 (7).
8. Remove the duct 3 (8).
9Y1210828CAS0080US0
(1) Holder Cover
(2) Inner Cover
(3) Duct 1
(4) Holder Cover Stay
(5) Duct 2
(6) Seat Under Cover 1
(7) Seat Under Cover 2
(8) Duct 3
