GENERAL
M6060, M7060, WSM
G-45

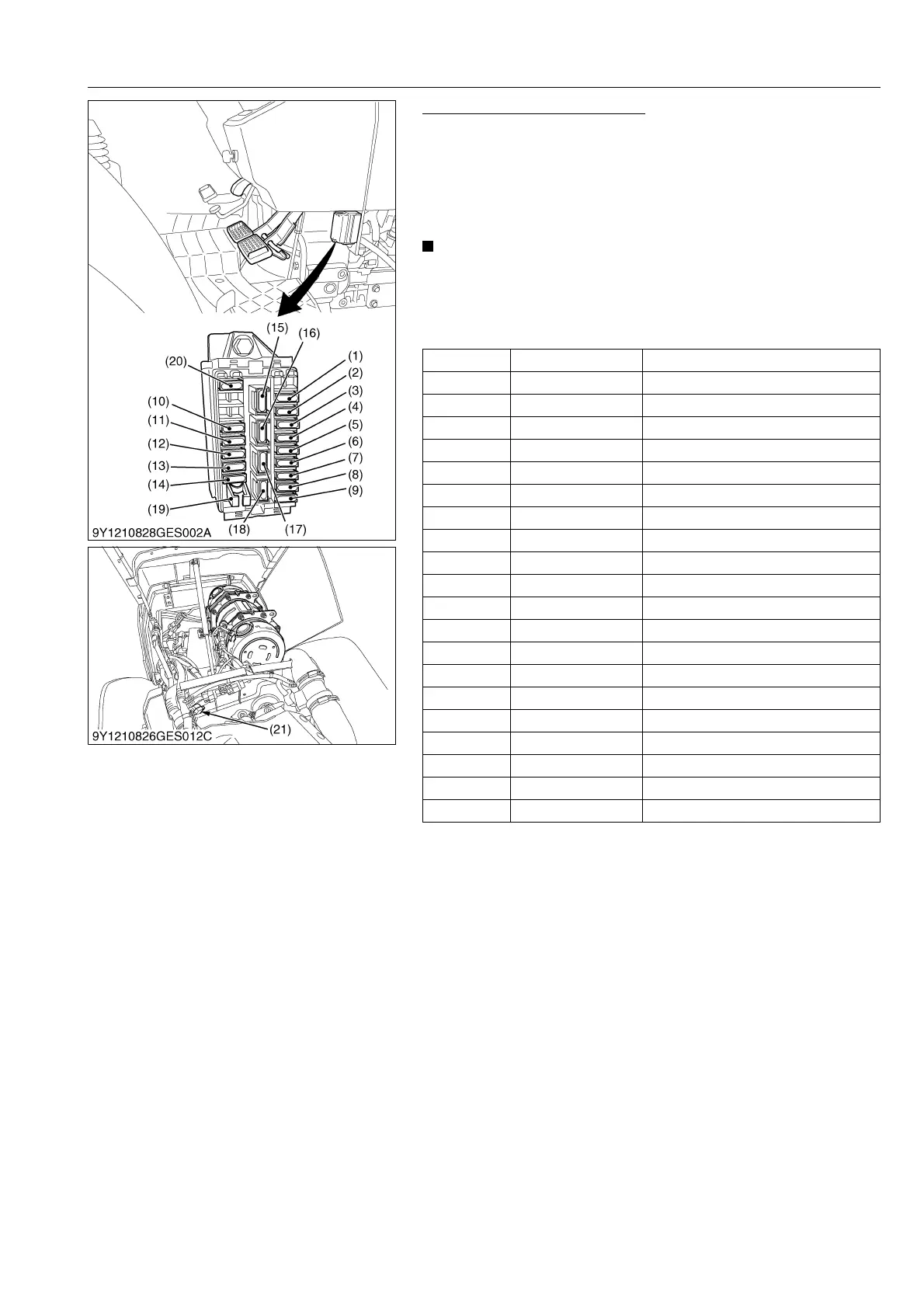

Replacing Fuse (ROPS Model)
1. The tractor electrical system is protected from potential damage
by fuses.
2. A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
3. If any of the fuses should blow, replace with a new one of the
same capacity.
IMPORTANT
• Before replacing a blown fuse, determine why the fuse blew
and make any necessary repairs. Failure to follow this
procedure may result in serious damage to the tractor
electrical system.
 Protected Circuit
9Y1210828GEG0073US0
Fuse No. Capacity (A) Protected circuit
(1) 15 Work light
(2) 5 Meter (Backup)
(3) 5 ECU (Backup)
(4) 10 Turn Signal, Stop lamp
(5) 15 Auxiliary Power
(6) 5 Meter Panel
(7) 20 Head Light
(8) 15 Flasher
(9) 5 Starter Relay
(10) 25 Auxiliary socket
(11) 10 Horn
(12) 5 PTO, Engine
(13) 5 Transmission control
(14) 15 ECU
(15) 5 Spare Fuse
(16) 10 Spare Fuse
(17) 15 Spare Fuse
(18) 25 Spare Fuse
(20) 20 Spare Fuse
(21) 20 CRS Power
(19) Fuse Puller
KiSC issued 08, 2013 A
