GENERAL
M6060, M7060, WSM
G-67

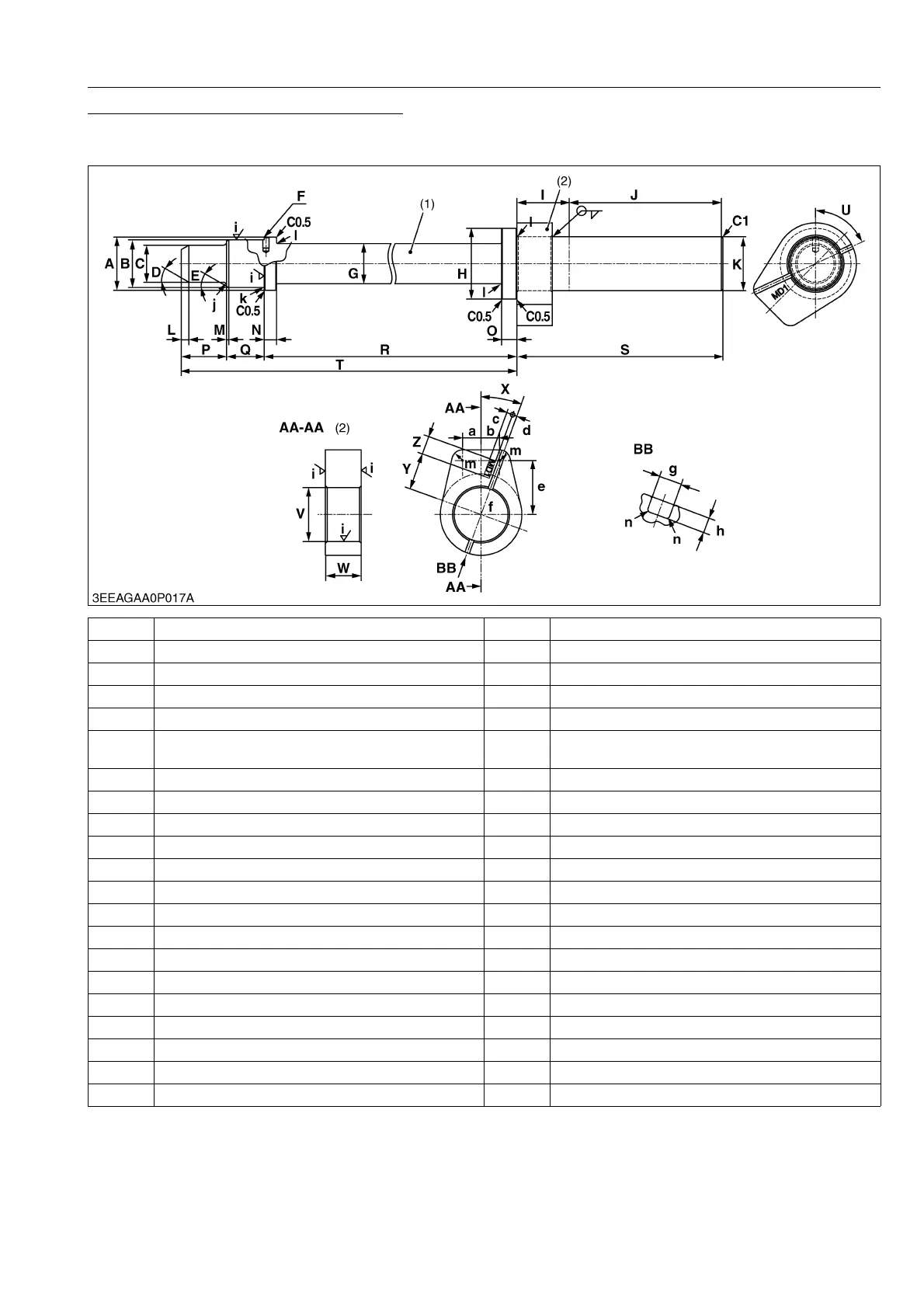

Balancer Shaft 1 Bearing D Replacing Tool
Application
• Use to press fit the bearing.
9Y1210828GEG0099US0
A 34.5 mm dia. (1.3583 in. dia.) V 35 mm dia. (1.3780 in. dia.)
B 30.8 to 30.9 mm dia. (1.2126 to 1.2165 in. dia.) W 23 mm (0.9055 in.)
C 24 mm dia. (0.9449 in. dia.) X 0.349 rad (20 °)
D 0.523 rad (30 °) Y 24 mm (0.9449 in.)
E 0.523 rad (30 °) Z 12 mm (0.4724 in.)
F
4.000 to 4.018 mm dia., 7 mm depth
(0.1575 to 0.1582 in. dia., 0.2756 in. depth)
a 12 mm (0.4724 in.)
G 26 mm dia. (1.0236 in. dia.) b 12 mm (0.4724 in.)
H 46 mm dia. (1.8110 in. dia.) c 4 mm (0.1575 in.)
I 34 mm (1.3386 in.) d 3 mm (0.1181 in.)
J 99 mm (3.8976 in.) e 35 mm (1.3780 in.)
K 34.9 to 35.0 mm (1.3740 to 1.3780 in.) f 53 mm (2.0866 in.)
L 5 mm (0.1969 in.) g 3 mm (0.1181 in.)
M 1.5 mm (0.0591 in.) h 2 mm (0.0787 in.)
N 8 mm (0.3150 in.) i Ra = 3.2 a
O 10 mm (0.3937 in.) j 2.0 mm radius (0.0787 in. radius)
P 29.5 mm (1.1614 in.) k 0.3 mm radius (0.0118 in. radius)
Q 24.5 mm (0.9646 in.) l 0.8 mm radius (0.0315 in. radius)
R 413.5 to 414.5 mm (16.2795 to 16.3189 in.) m 7.0 mm radius (0.2756 in. radius)
S 134 mm (5.2756 in.) n 0.4 mm radius (0.0157 in. radius)
T 468 mm (18.4252 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
U 1.134 rad (65 °) C1 Chamfer 1.0 mm (0.0394 in.)
(1) Shaft (2) Stopper
