GENERAL
M6060, M7060, WSM
G-70

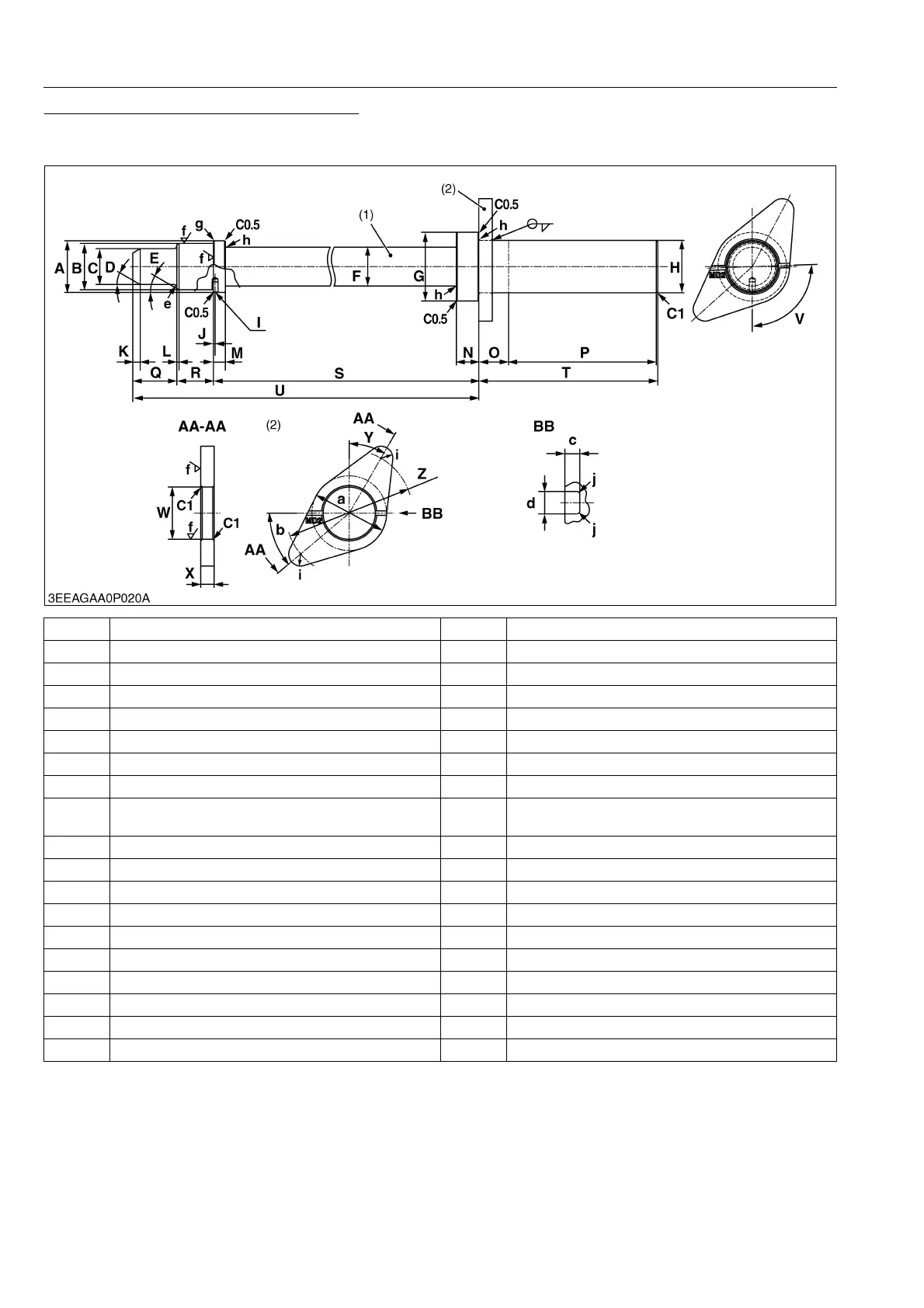

Balancer Shaft 2 Bearing D Replacing Tool
Application
• Use to press fit the bearing.
9Y1210828GEG0102US0
A 34.5 mm dia. (1.3583 in. dia.) T 120 mm (4.7244 in.)
B 30.8 to 30.9 mm dia. (1.2126 to 1.2165 in.) U 479 mm (18.8583 in.)
C 24 mm dia. (0.9449 in. dia.) V 1.605 rad (92 °)
D 0.523 rad (30 °) W 35 mm dia. (1.3780 in. dia.)
E 0.523 rad (30 °) X 9 mm (0.3543 in.)
F 26 mm dia. (1.0236 in. dia.) Y 0.523 rad (30 °)
G 46 mm dia. (1.8110 in. dia.) Z 84.5 to 85.5 mm (3.3268 to 3.3661 in.)
H 34.9 to 35.0 mm dia. (1.3740 to 1.3780 in. dia.) a 50 mm (1.9685 in.)
I
4.000 to 4.018 mm dia., 7 mm depth
(0.1575 to 0.1582 in. dia., 0.2756 in. depth)
b 0.698 rad (40 °)
J 1.2 mm (0.0472 in.) c 2 mm (0.0787 in.)
K 5 mm (0.1969 in.) d 3 mm (0.1181 in.)
L 1.5 mm (0.0591 in.) e 2 mm radius (0.0787 in. radius)
M 8 mm (0.3150 in.) f Ra = 3.2 a
N 15 mm (0.5906 in.) g 0.3 mm radius (0.0118 in. radius)
O 20 mm (0.7874 in.) h 0.8 mm radius (0.0315 in. radius)
P 99 mm (3.8976 in.) i 8.0 mm radius (0.3150 in. radius)
Q 29.5 mm (1.1614 in.) j 0.4 mm radius (0.0157 in. radius)
R 24.5 mm (0.9646 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
S 424.5 to 425.5 mm (16.7126 to 16.7520 in.) C1 Chamfer 1.0 mm (0.0394 in.)
(1) Shaft (2) Stopper
