GENERAL
M6060, M7060, WSM
G-74

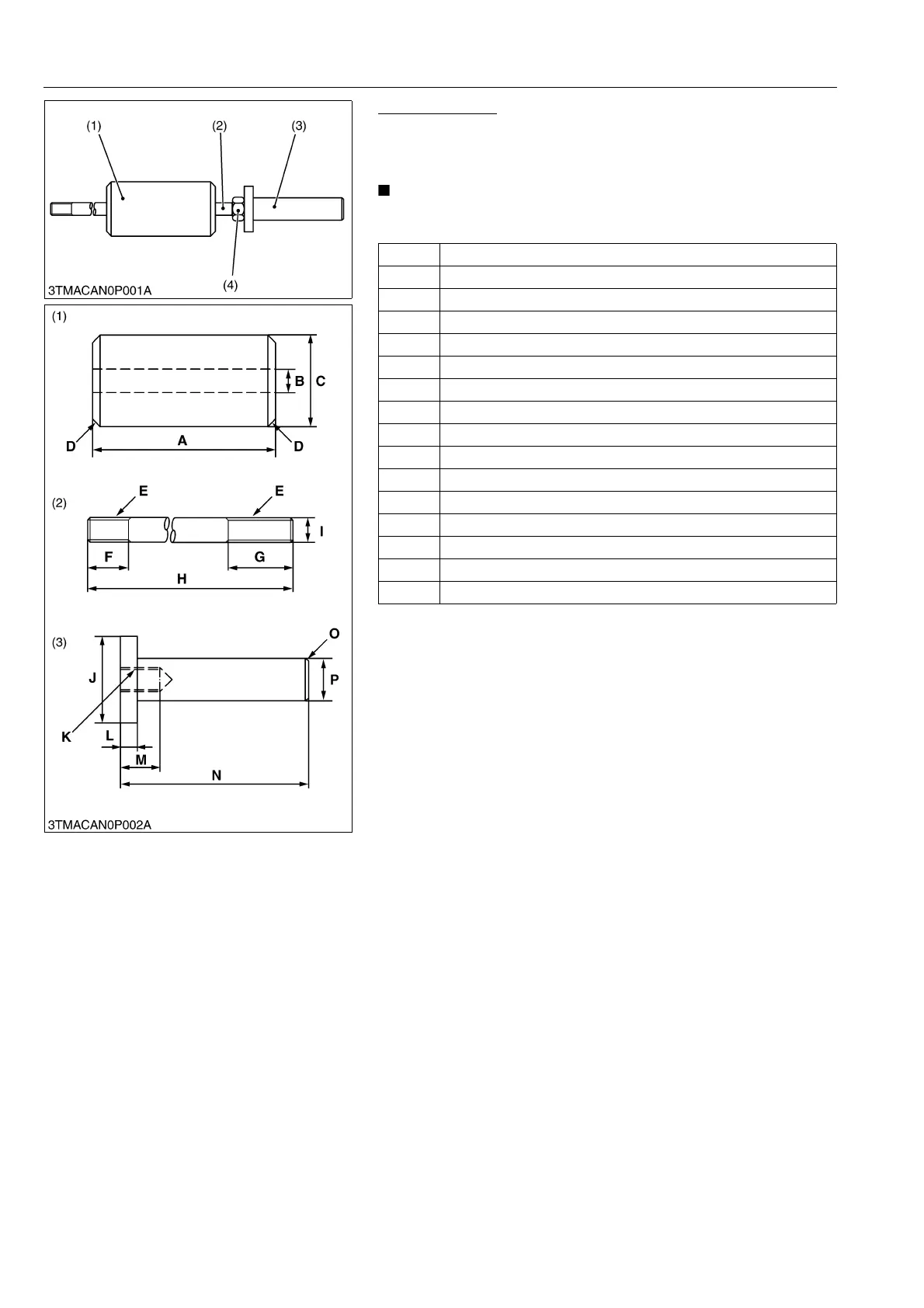

Sliding Hammer
Application
• Use to removing the bevel pinion shaft with adaptor for front
axle.
• The following special tool is not provided, so make it
referring to the figure.
9Y1210828GEG0104US0
A 120 mm (4.72 in.)
B 14.5 mm dia. (0.57 in. dia.)
C 60 mm dia. (2.36 in. dia.)
D Chamfer 5 mm (0.20 in.)
E M14 × P1.5
F 25 mm (0.98 in.)
G 40 mm (1.57 in.)
H 450 mm (17.72 in.)
I 14 mm dia. (0.55 in. dia.)
J 50 mm dia. (1.97 in. dia.)
K M14 × P1.5
L 10 mm (0.39 in.)
M 30 mm (1.18 in.)
N 110 mm (4.3 in.)
O Chamfer 2 mm (0.08 in.)
P 25 mm dia. (0.98 in. dia.)
(1) Hammer
(2) Sliding Shaft
(3) Handle
(4) Nut (M14 × P1.5)
