Xerox 8830 Service Manual

CAUTION
Ensure that the clamp will not cause interference
when the Developer Module is removed.
6. (Figure 2): Remove the Developer Module.
1
Move the lock into the
groove on the gear while
performing Step 2
Move the gear to
disengage
Press tab and swing
down Clamp Bar (one
each end)

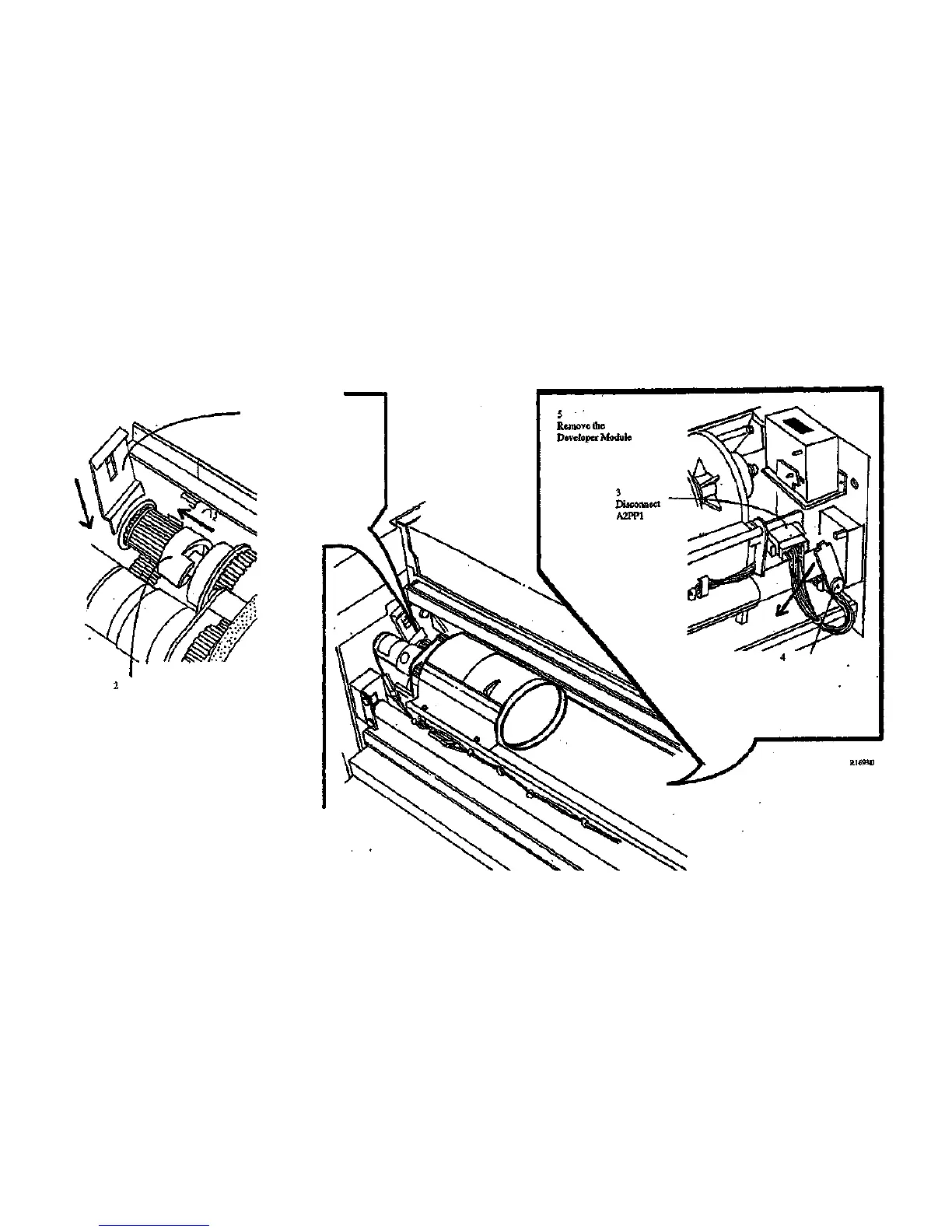

Figure 2. Removing the Developer Module
REP 9.5
1/98
4-54
8830
