Replacement
1. (Figure 3): Reinstall the Developer Module.
CAUTION
Ensure that the Developer Module is fully reinstalled
in the brackets.
CAUTION
Ensure that the gear is free to engage the Developer
Module drive gears.
Move the lock out of the
groove on the gear while
performing Step 5
Move the gear to
engage
Press tab and swing up
Clamp Bar until it
locks (one each end)
R1693E

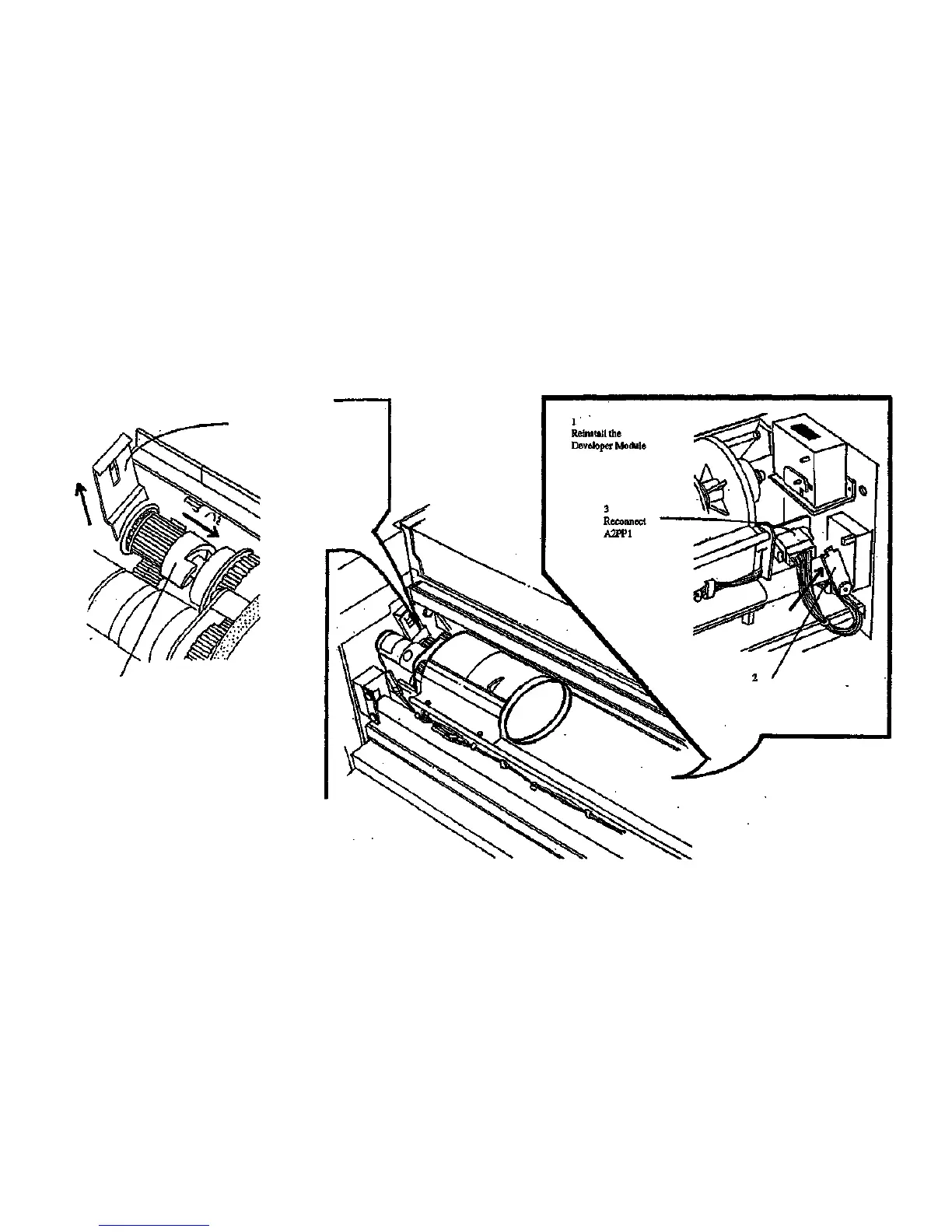

Figure 3. Reinstalling the Developer Module
1/98
4-55
REP 9.5
